Round modular remote condenser CMR | Althermo

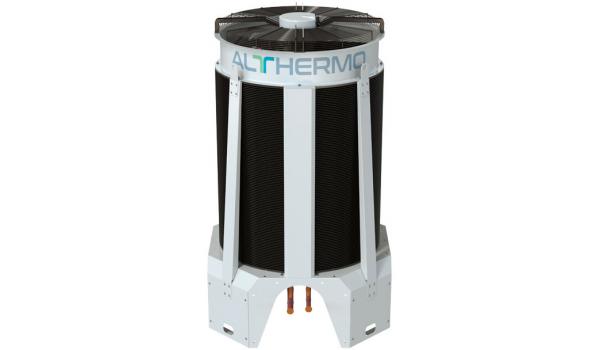

CMR is the innovative modular remote condenser with round microchannel heat exchangers provided by Althermo. It has been designed to meet a demanding market which is increasingly focused on the reduction of the refrigerant charge, on the constant optimisation of installation space and on the reduction of delivery times.

Thanks to its innovative configuration, the CMR remote condenser allows to eliminate many limits that can be found with traditional condensers. The modular construction allows incomparable installation flexibility. The CMR modules can indeed be moved and installed with remarkable savings in logistic costs. Delivery times are dramatically reduced as well, down to 3 working days.

The CMR condenser can be fitted with 800 mm or 910 mm EC fans and speed regulator, and the microchannel coil is treated with protective epoxy coating. In addition to this, the internal volume of the microchannel coil is 60% lower than common round tube plate fin heat exchangers with the same capacity.

For special applications in highly corrosive environments, it can be supplied with an AISI 316 grade stainless steel frame and coils coated with ElectroFin which guarantees C5M rating for highest corrosion resistance

Cooling capacity: from 30 to 2300 kW
Fan diameter: 800 and 910 mm
Number of fans: from 1 to 20

-75% of footprint

A single module can dissipate up to 115 kW (Δt 15 °C and R134a) with a total footprint of only 1.21 square meter. Thanks to its distinctive shape, it can draw air in from all around (360°) and can be installed very close to walls. The combination of these elements allows to reduce by 75% the installation area of the condenser.

Main benefits

• 100% Specific capacity (kW/occupied square meter)
• -60% Refrigerant charge
• -75% Installation area
• Installation close to walls
• Protective coating
• Delivery times – 3 working days
