Click on the Model for technical data, dimensions, accessories
AB W - industrial, horizontal mounting, max. mounting height 6 m
AB175W-2 60 kW heating capacity, high air flow 7068 m³/h, fans power 1650 W, length 1.75 m, 2 year WARRANTY
AB175W-2
60 kW heating capacity, high air flow 7068 m³/h, fans power 1650 W, length 1.75 m, 2 year WARRANTY
AB225W-2 70 kW heating capacity, high air flow 9425 m³/h, fans power 2200 W, length 2.25 m, 2 year WARRANTY
AB225W-2
70 kW heating capacity, high air flow 9425 m³/h, fans power 2200 W, length 2.25 m, 2 year WARRANTY
AB350W-2 120 kW heating capacity, high air flow 14136 m³/h, fans power 3300 W, length 3.5 m (2 x AB175W), 2 year WARRANTY
AB350W-2
120 kW heating capacity, high air flow 14136 m³/h, fans power 3300 W, length 3.5 m (2 x AB175W), 2 year WARRANTY
AB400W-2 130 kW heating capacity, high air flow 16493 m³/h, fans power 3850 W, length 4 m (AB175W + AB225W), 2 year WARRANTY
AB400W-2
130 kW heating capacity, high air flow 16493 m³/h, fans power 3850 W, length 4 m (AB175W + AB225W), 2 year WARRANTY
AB450W-2 140 kW heating capacity, high air flow 18850 m³/h, fans power 4400 W, length 4.5 m (2 x AB225W), 2 year WARRANTY
AB450W-2
140 kW heating capacity, high air flow 18850 m³/h, fans power 4400 W, length 4.5 m (2 x AB225W), 2 year WARRANTY
AB525W-2 180 kW heating capacity, high air flow 21204 m³/h, fans power 4950 W, length 5.25 m (3 x AB175W), 2 year WARRANTY
AB525W-2
180 kW heating capacity, high air flow 21204 m³/h, fans power 4950 W, length 5.25 m (3 x AB175W), 2 year WARRANTY
AB575W-2 190 kW heating capacity, high air flow 23561 m³/h, fans power 5500 W, length 5.75 m (2 x AB175W + 1 x AB225W), 2 year WARRANTY
AB575W-2
190 kW heating capacity, high air flow 23561 m³/h, fans power 5500 W, length 5.75 m (2 x AB175W + 1 x AB225W), 2 year WARRANTY
AB625W-2 200 kW heating capacity, high air flow 25918 m³/h, fans power 6050 W, length 6.25 m (2 x AB225W + 1 x AB175W), 2 year WARRANTY
AB625W-2
200 kW heating capacity, high air flow 25918 m³/h, fans power 6050 W, length 6.25 m (2 x AB225W + 1 x AB175W), 2 year WARRANTY
AB675W-2 210 kW heating capacity, high air flow 28275 m³/h, fans power 6600 W, length 6.75 m (3 x AB225W), 2 year WARRANTY
AB675W-2
210 kW heating capacity, high air flow 28275 m³/h, fans power 6600 W, length 6.75 m (3 x AB225W), 2 year WARRANTY
Model AB175W AB225W AB350W AB400W AB450W AB525W AB575W AB625W AB675W
General data
Maximum door width m 1,75 2,25 3,5 4 4,5 5,25 5,75 6,25 6,75
Maximum mounting height m 6
Number of modules pcs 1 2 3
Heating medium   hot water
Maximum heating capacity kW 51 70 103 120 137 155 172 190 206
Fan data
Fan steps   2
Fan type   centrifugal
Number of fans pcs 3 4 6 7 8 9 10 11 12
Maximum airflow m3/h 7068 9425 14136 16493 18850 21204 23561 25918 28275
Electrical data
Electrical supply   230V 1 phase 50 Hz
Current rating (per fan) amps 4,5
Motor power (per fan) W 550
Total current rating amps 13,5 18 27 31,5 36 40,5 45 49,5 54
Total electrical load kW 1,65 2,2 3,3 3,85 4,4 4,95 5,5 6,05 6,6
Dimensions
Width mm 1750 2250 3500 4000 4500 5250 5750 6250 6750

Airbloc AB industrial air curtains provide a barrier of high velocity air that helps block incoming winds and stops warm air escaping. They achieve this by delivering a powerful barrier of heated air across the entire width of the doorway. Units can be easily fitted within existing or new buildings and are ideal for open doorways.

The open door not only causes discomfort but greatly increases energy loss and the running costs of the building. Airbloc units offer a cost-effective, energy efficient solution to these problems.

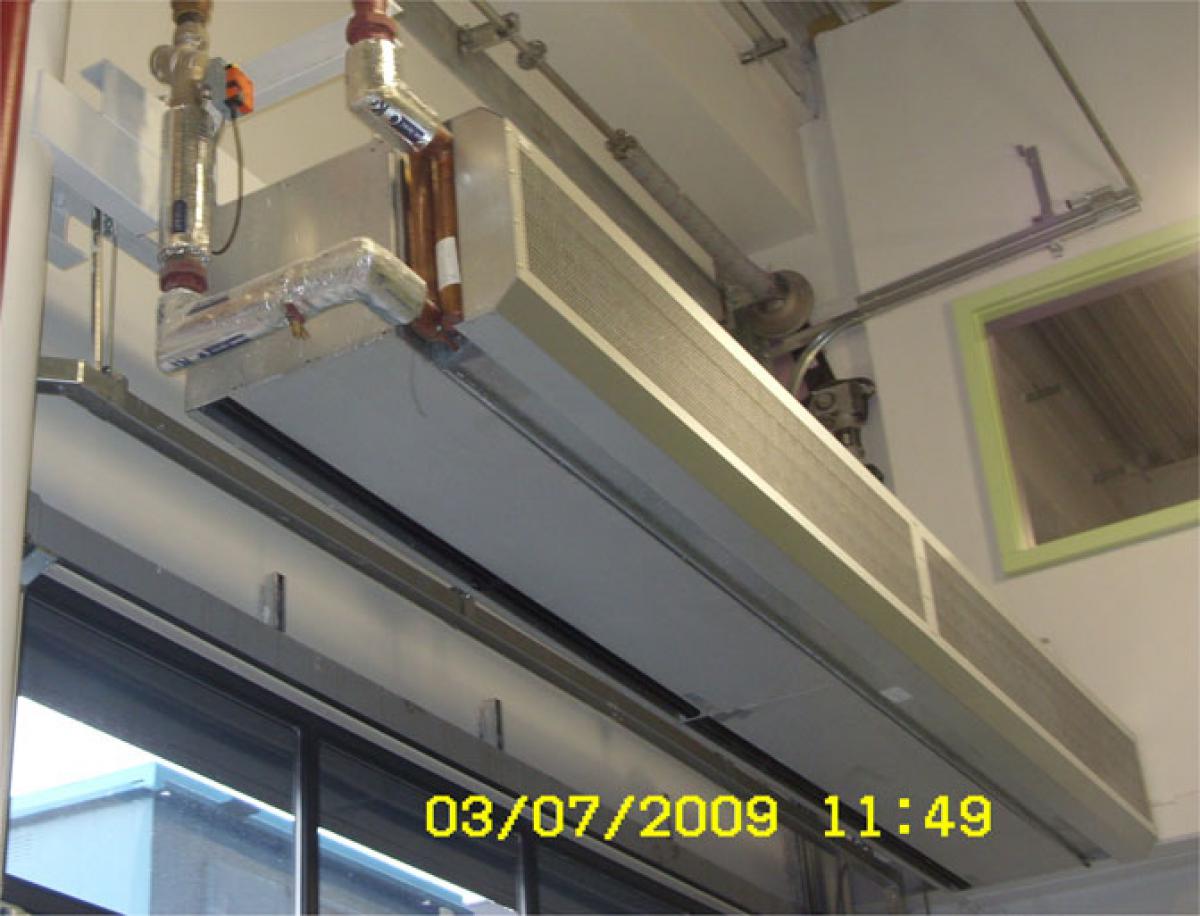

Units are best mounted horizontally above the door to enable high-level warm air to be re-circulated to working level. Where over-door mounting is not possible, alternative units are available which may be mounted vertically at one or both sides of the door.

Features & Benefits

  • Lower energy bills; air curtains provide an effective barrier to prevent the loss of warm air through open doors
  • Complement and improve efficiency of conventional heating systems
  • Allow doors to be left open for fork lift access
  • Heated units can operate when the door is closed to provide supplementary heating
  • Models are supplied to site in modular format for ease of handling
  • All models are supplied with remote control panels
  • Optional fan speed control is available on all models

Model Range

  • Nine models, for door widths from 1.75 metres to 6.75 metres
  • Suitable for doorways up to six metres high
  • Nominal heat outputs from 51kW to 206kW
  • Standard units are suitable for horizontal mounting over the top of a door. For applications requiring vertical air curtains special ‘tailor made’ units are available

AB Series Applications

  • Distribution centres
  • Hangars
  • Industrial buildings
  • Retail unit stockrooms
  • Warehouses
  • Cold stores
The problem

When doors are opened in heated buildings, outside, colder, more dense air flows in through the bottom half of the door opening, whilst warm internal air flows out through the upper part of the doorway.

This results in considerable energy loss from the building and a layer of cold air forming at low level reducing comfort levels.

 Problem
Heated building without air curtain
The solution

The installation of an Airbloc energy saving air curtain provides a barrier of air to separate the indoor and outdoor climates and deflect the natural convection airflow to retain heat inside the building.

The units operate when door opens and can also operate after the door has closed to supply supplementary heat.

 AB horizontal solution
Horizontal mounting		 AB vertical solution
Vertical mounting
The technology

The Airbloc design provides air at a critical velocity, volume flow and temperature for optimum performance. The evenly distributed airflow across the full width of the door ensures effective tempering of incoming air.

Industrial doors require high air volumes for effective climate separation, the width of the air jet is critical to the unit performance and to maintain optimum air velocity this requires high primary air volumes. Units with a low air volume and narrow jet width do not provide sufficient resistance to the cold outside air. The Airbloc units have a 155mm outlet which combined with the high primary air volume provides a far more effective air barrier against external cold air, thereby reducing cold air ingress and improving energy savings.

To transform the turbulent airflow created at the fan outlet whilst at the same time optimising velocity the discharge section of the Airbloc units incorporate robust 70mm deep aluminium aerofoil profile blades which act as air straightening vanes to produce a laminar airflow discharge whilst minimising airflow resistance. To allow the air discharge to be adjusted to suit prevailing conditions, the complete assembly adjusts as a single section to maintain the airflow profile, once adjusted the complete assembly can then be locked into position. A three speed fan allows the airflow and velocity to be adjusted to suit varying door heights or exposure levels.

 AB technology
Pattern of airflow
