Click on the Model for technical data, dimensions, accessories

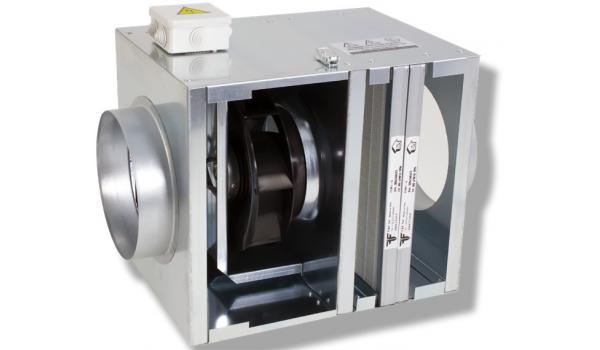

FILBOX/AC - centrifugal, AC type motor, galvanized steel casing, in-line connection with circular ducts, allowed extracted air temperature range from -20ºC to +50ºC, F7/F8/F9 class air filter, IP33/F protection / insulation class
FILBOX-80/AC 180 m³/h air flow, max. static pressure 190 Pa, ducts connections diameter Ø80 mm, power consumption 27 W, fan rotation speed 3370 rpm, one-phase connection, 2 year WARRANTY
FILBOX-80/AC
180 m³/h air flow, max. static pressure 190 Pa, ducts connections diameter Ø80 mm, power consumption 27 W, fan rotation speed 3370 rpm, one-phase connection, 2 year WARRANTY
FILBOX-100/AC 250 m³/h air flow, max. static pressure 240 Pa, ducts connections diameter Ø100 mm, power consumption 27 W, fan rotation speed 3370 rpm, one-phase connection, 2 year WARRANTY
FILBOX-100/AC
250 m³/h air flow, max. static pressure 240 Pa, ducts connections diameter Ø100 mm, power consumption 27 W, fan rotation speed 3370 rpm, one-phase connection, 2 year WARRANTY
FILBOX-125/AC 400 m³/h air flow, max. static pressure 350 Pa, ducts connections diameter Ø125 mm, power consumption 80 W, fan rotation speed 2570 rpm, one-phase connection, 2 year WARRANTY
FILBOX-125/AC
400 m³/h air flow, max. static pressure 350 Pa, ducts connections diameter Ø125 mm, power consumption 80 W, fan rotation speed 2570 rpm, one-phase connection, 2 year WARRANTY
FILBOX-150/AC 500 m³/h air flow, max. static pressure 450 Pa, ducts connections diameter Ø150 mm, power consumption 133 W, fan rotation speed 2660 rpm, one-phase connection, 2 year WARRANTY
FILBOX-150/AC
500 m³/h air flow, max. static pressure 450 Pa, ducts connections diameter Ø150 mm, power consumption 133 W, fan rotation speed 2660 rpm, one-phase connection, 2 year WARRANTY
FILBOX-200/AC 700 m³/h air flow, max. static pressure 550 Pa, ducts connections diameter Ø200 mm, power consumption 160 W, fan rotation speed 2700 rpm, one-phase connection, 2 year WARRANTY
FILBOX-200/AC
700 m³/h air flow, max. static pressure 550 Pa, ducts connections diameter Ø200 mm, power consumption 160 W, fan rotation speed 2700 rpm, one-phase connection, 2 year WARRANTY
FILBOX-315/AC 950 m³/h air flow, max. static pressure 540 Pa, ducts connections diameter Ø315 mm, power consumption 170 W, fan rotation speed 2760 rpm, one-phase connection, 2 year WARRANTY
FILBOX-315/AC
950 m³/h air flow, max. static pressure 540 Pa, ducts connections diameter Ø315 mm, power consumption 170 W, fan rotation speed 2760 rpm, one-phase connection, 2 year WARRANTY
FILBOX-350/AC 1200 m³/h air flow, max. static pressure 540 Pa, ducts connections diameter Ø350 mm, power consumption 170 W, fan rotation speed 2750 rpm, one-phase connection, 2 year WARRANTY
FILBOX-350/AC
1200 m³/h air flow, max. static pressure 540 Pa, ducts connections diameter Ø350 mm, power consumption 170 W, fan rotation speed 2750 rpm, one-phase connection, 2 year WARRANTY
FILBOX-400/AC 2400 m³/h air flow, max. static pressure 230 Pa, ducts connections diameter Ø400 mm, power consumption 440 W, fan rotation speed 1390 rpm, one-phase connection, 2 year WARRANTY
FILBOX-400/AC
2400 m³/h air flow, max. static pressure 230 Pa, ducts connections diameter Ø400 mm, power consumption 440 W, fan rotation speed 1390 rpm, one-phase connection, 2 year WARRANTY
FILBOX-450/AC 7000 m³/h air flow, max. static pressure 350 Pa, ducts connections diameter Ø450 mm, power consumption 1100 W, fan rotation speed 900 rpm, one-phase connection, 2 year WARRANTY
FILBOX-450/AC
7000 m³/h air flow, max. static pressure 350 Pa, ducts connections diameter Ø450 mm, power consumption 1100 W, fan rotation speed 900 rpm, one-phase connection, 2 year WARRANTY
