Click on the Model for technical data, dimensions, accessories

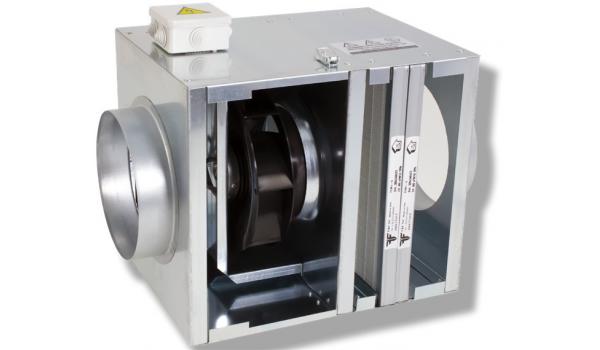

FILBOX/EC - centrifugal, EC type motor, galvanized steel casing, in-line connection with circular ducts, allowed extracted air temperature range from -20ºC to +50ºC, F7/F8/F9 class air filter
FILBOX-80/EC 210 m³/h air flow, max. static pressure 390 Pa, ducts connections diameter Ø80 mm, power consumption 35 W, fan rotation speed 4480 rpm, one-phase connection, 2 year WARRANTY
FILBOX-80/EC
210 m³/h air flow, max. static pressure 390 Pa, ducts connections diameter Ø80 mm, power consumption 35 W, fan rotation speed 4480 rpm, one-phase connection, 2 year WARRANTY
FILBOX-100/EC 230 m³/h air flow, max. static pressure 290 Pa, ducts connections diameter Ø100 mm, power consumption 35 W, fan rotation speed 4480 rpm, one-phase connection, 2 year WARRANTY
FILBOX-100/EC
230 m³/h air flow, max. static pressure 290 Pa, ducts connections diameter Ø100 mm, power consumption 35 W, fan rotation speed 4480 rpm, one-phase connection, 2 year WARRANTY
FILBOX-125/EC 500 m³/h air flow, max. static pressure 400 Pa, ducts connections diameter Ø125 mm, power consumption 73 W, fan rotation speed 3320 rpm, one-phase connection, 2 year WARRANTY
FILBOX-125/EC
500 m³/h air flow, max. static pressure 400 Pa, ducts connections diameter Ø125 mm, power consumption 73 W, fan rotation speed 3320 rpm, one-phase connection, 2 year WARRANTY
FILBOX-150/EC 720 m³/h air flow, max. static pressure 550 Pa, ducts connections diameter Ø150 mm, power consumption 157 W, fan rotation speed 3510 rpm, one-phase connection, 2 year WARRANTY
FILBOX-150/EC
720 m³/h air flow, max. static pressure 550 Pa, ducts connections diameter Ø150 mm, power consumption 157 W, fan rotation speed 3510 rpm, one-phase connection, 2 year WARRANTY
FILBOX-200/EC 1300 m³/h air flow, max. static pressure 720 Pa, ducts connections diameter Ø200 mm, power consumption 240 W, fan rotation speed 3150 rpm, one-phase connection, 2 year WARRANTY
FILBOX-200/EC
1300 m³/h air flow, max. static pressure 720 Pa, ducts connections diameter Ø200 mm, power consumption 240 W, fan rotation speed 3150 rpm, one-phase connection, 2 year WARRANTY
FILBOX-250/EC 2000 m³/h air flow, max. static pressure 720 Pa, ducts connections diameter Ø250 mm, power consumption 360 W, fan rotation speed 2760 rpm, one-phase connection, 2 year WARRANTY
FILBOX-250/EC
2000 m³/h air flow, max. static pressure 720 Pa, ducts connections diameter Ø250 mm, power consumption 360 W, fan rotation speed 2760 rpm, one-phase connection, 2 year WARRANTY
FILBOX-315/EC 2300 m³/h air flow, max. static pressure 720 Pa, ducts connections diameter Ø315 mm, power consumption 270 W, fan rotation speed 2760 rpm, one-phase connection, 2 year WARRANTY
FILBOX-315/EC
2300 m³/h air flow, max. static pressure 720 Pa, ducts connections diameter Ø315 mm, power consumption 270 W, fan rotation speed 2760 rpm, one-phase connection, 2 year WARRANTY
FILBOX-350/EC 2700 m³/h air flow, max. static pressure 1100 Pa, ducts connections diameter Ø350 mm, power consumption 580 W, fan rotation speed 3100 rpm, one-phase connection, 2 year WARRANTY
FILBOX-350/EC
2700 m³/h air flow, max. static pressure 1100 Pa, ducts connections diameter Ø350 mm, power consumption 580 W, fan rotation speed 3100 rpm, one-phase connection, 2 year WARRANTY
FILBOX-400/EC 3200 m³/h air flow, max. static pressure 600 Pa, ducts connections diameter Ø400 mm, power consumption 1000 W, fan rotation speed 2000 rpm, one-phase connection, 2 year WARRANTY
FILBOX-400/EC
3200 m³/h air flow, max. static pressure 600 Pa, ducts connections diameter Ø400 mm, power consumption 1000 W, fan rotation speed 2000 rpm, one-phase connection, 2 year WARRANTY
FILBOX-450/EC 5000 m³/h air flow, max. static pressure 1000 Pa, ducts connections diameter Ø450 mm, power consumption 2200 W, fan rotation speed 1960 rpm, one-phase connection, 2 year WARRANTY
FILBOX-450/EC
5000 m³/h air flow, max. static pressure 1000 Pa, ducts connections diameter Ø450 mm, power consumption 2200 W, fan rotation speed 1960 rpm, one-phase connection, 2 year WARRANTY
