Air cooler - FPAK-I | Impresind

Select the product model:

Air cooler, for cooling, purification and ventilation of professional kitchens and food industries, works on the principle of water evaporation, 5 fan speeds allow the supply air volume to be adapted to the extract air volume via industrial kitchen hoods, control panel is mounted directly on the unit, cooler is equipped with a new technology evaporative pads named HEALTH that reduces the percentages of NO, NOx and other inorganic pollutants and also reduces the percentage values of fine dust in the air, machine structure is in stainless steel, cooling capacity calculated at 35°C outside air temperature and 50% relative humidity, 12 kW cooling capacity, air flow from 1000 m³/h to 5000 m³/h (max. air circulation 7500 m³/h), axial fan, max. electrical power consumption 0.45 kW, single-phase connection, for wall or window mounting - side discharge, weight of empty/full unit 55/75 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
ColdAir K-series - for cooling, purification and ventilation of professional kitchens and food industries, works on the principle of water evaporation, 5 fan speeds allow the supply air volume to be adapted to the extract air volume via industrial kitchen hoods, control panel is mounted directly on the unit, cooler is equipped with a new technology evaporative pads named HEALTH that reduces the percentages of NO, NOx and other inorganic pollutants and also reduces the percentage values of fine dust in the air, machine structure is in stainless steel, cooling capacity calculated at 35°C outside air temperature and 50% relative humidity
FPAK-I 12 kW cooling capacity, air flow from 1000 m³/h to 5000 m³/h (max. air circulation 7500 m³/h), axial fan, max. electrical power consumption 0.45 kW, single-phase connection, for wall or window mounting - side discharge, weight of empty/full unit 55/75 kg, 2 year WARRANTY
FPAK-I
12 kW cooling capacity, air flow from 1000 m³/h to 5000 m³/h (max. air circulation 7500 m³/h), axial fan, max. electrical power consumption 0.45 kW, single-phase connection, for wall or window mounting - side discharge, weight of empty/full unit 55/75 kg, 2 year WARRANTY
Model: FPAK-I
General data
Cooling capacity at 35°C outside air temperature and 50% relative humidity
kW
12
Max. air circulation
m³/h
7500
Air flow
m³/h
1000 - 5000
Water consumption at 33°C external air temperature and 60% relative humidity
l/h
13
Fan data
Fan type
Axial
Steps
5
Evaporative cooling pads data
Saturation efficiency
%
88
Installation data
Power supply
V/Hz
230/50
Power consumption
kW
0,45
Current consumption
A
3
Hydraulic connection
Ø "
¾
Water drain
Ø mm
22
Air discharge
Side
Other data
Water tank
l
20
Control
Control panel mounted directly on the unit casing
Dimensions
Width
mm
1005
Depth
mm
347
Height
mm
1070
Weight
kg
55
Weight of unit filled with water
kg
75

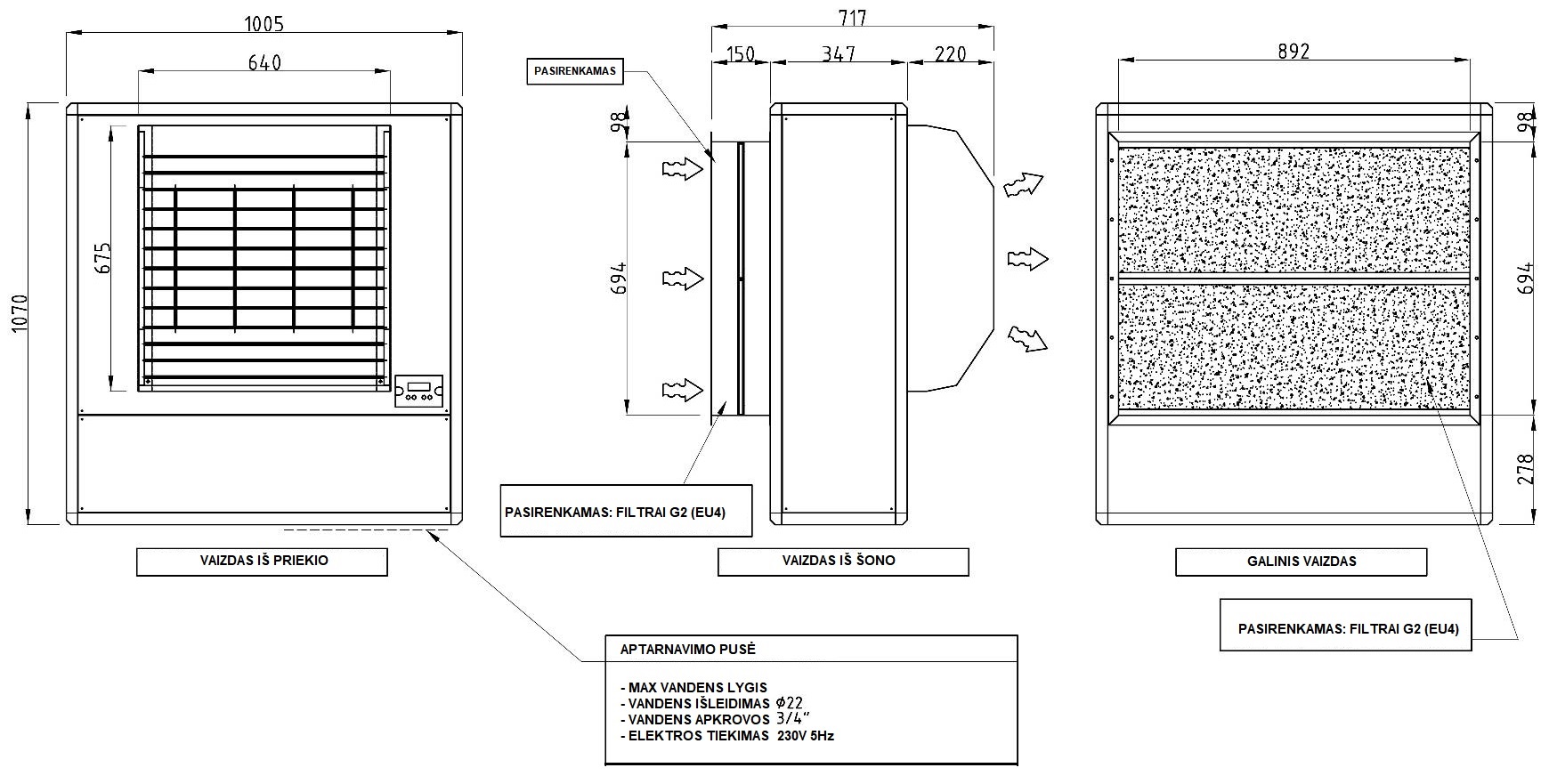

Dimensions

Model: FPAK-I
Dimensions
ColdAIR K-series evaporative coolers for kitchens
