Name: Ambient air curtain - ELiS G-N-200 3V | Flowair
Brand: Flowair
Availability: PreOrder

Ambient air curtain, industrial, horizontal and vertical mounting, high air flow: three speeds 3900/6300/9700 m³/h, FLOWAIR axial fans, total fans power 1050 W, length 2 m, max. mounting height 8 m, 2 year WARRANTY

Manufacturer:

Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer

Click on the Model for technical data, dimensions, accessories

ELiS G-N - industrial, horizontal and vertical mounting
	ELiS G-N-50 3V	High air flow: three speeds 1100/1700/2500 m³/h, FLOWAIR axial fans, total fans power 340 W, length 0.5 m, max. mounting height 8 m, 2 year WARRANTY
	ELiS G-N-50 3V
	High air flow: three speeds 1100/1700/2500 m³/h, FLOWAIR axial fans, total fans power 340 W, length 0.5 m, max. mounting height 8 m, 2 year WARRANTY
	ELiS G-N-150 3V	High air flow: three speeds 2800/4600/6550 m³/h, FLOWAIR axial fans, total fans power 670 W, length 1.5 m, max. mounting height 8 m, 2 year WARRANTY
		ELiS G-N-150 3V
		High air flow: three speeds 2800/4600/6550 m³/h, FLOWAIR axial fans, total fans power 670 W, length 1.5 m, max. mounting height 8 m, 2 year WARRANTY
ELiS G-N-200 3V	High air flow: three speeds 3900/6300/9700 m³/h, FLOWAIR axial fans, total fans power 1050 W, length 2 m, max. mounting height 8 m, 2 year WARRANTY
	ELiS G-N-200 3V
	High air flow: three speeds 3900/6300/9700 m³/h, FLOWAIR axial fans, total fans power 1050 W, length 2 m, max. mounting height 8 m, 2 year WARRANTY
ELiS G-N-250 3V	High air flow: three speeds 4900/8100/12800 m³/h, FLOWAIR axial fans, total fans power 1400 W, length 2.5 m, max. mounting height 8 m, 2 year WARRANTY
	ELiS G-N-250 3V
	High air flow: three speeds 4900/8100/12800 m³/h, FLOWAIR axial fans, total fans power 1400 W, length 2.5 m, max. mounting height 8 m, 2 year WARRANTY
	ELiS G-N-50 IP66	High air flow 2500 m³/h, resistant to dust and water (IP66) axial fans, total fans power 415 W, length 0.5 m, max. mounting height 8 m, 2 year WARRANTY
	ELiS G-N-50 IP66
	High air flow 2500 m³/h, resistant to dust and water (IP66) axial fans, total fans power 415 W, length 0.5 m, max. mounting height 8 m, 2 year WARRANTY
	ELiS G-N-150 IP66	High air flow 6550 m³/h, resistant to dust and water (IP66) axial fans, total fans power 830 W, length 1.5 m, max. mounting height 8 m, 2 year WARRANTY
		ELiS G-N-150 IP66
		High air flow 6550 m³/h, resistant to dust and water (IP66) axial fans, total fans power 830 W, length 1.5 m, max. mounting height 8 m, 2 year WARRANTY
ELiS G-N-200 IP66	High air flow 9700 m³/h, resistant to dust and water (IP66) axial fans, total fans power 1245 W, length 2 m, max. mounting height 8 m, 2 year WARRANTY
	ELiS G-N-200 IP66
	High air flow 9700 m³/h, resistant to dust and water (IP66) axial fans, total fans power 1245 W, length 2 m, max. mounting height 8 m, 2 year WARRANTY
ELiS G-N-250 IP66	High air flow 12800 m³/h, resistant to dust and water (IP66) axial fans, total fans power 1660 W, length 2.5 m, max. mounting height 8 m, 2 year WARRANTY
	ELiS G-N-250 IP66
	High air flow 12800 m³/h, resistant to dust and water (IP66) axial fans, total fans power 1660 W, length 2.5 m, max. mounting height 8 m, 2 year WARRANTY

Recommended distances for horizontal mounting [m]	ELiS G1-N-150	ELiS G1-N-200
Max. mounting height	7,5	7,5
Min. distance to the ceiling	0,4	0,4
Recommended distances for vertical mounting [m]	ELiS G1-N-150	ELiS G1-N-200
Max. door width with curtain from one side	7,5	7,5
Max. door width with curtains from both sides	13	13
Min. fans distance to the wall	0,4	0,4
Dimensions [mm]	ELiS G1-N-150	ELiS G1-N-200
Width	1562	2078
Depth	549	549
Height	639	639

	ELiS G1-N-150	ELiS G1-N-200
Power supply	230 V / 50 Hz
Max. power consumption	640 W	960 W
Max. current consumption	2,8 A	4,2 A
Air flow	6500 m³/val.	8600 m³/val.
Acoustic pressure level*	62 dB(A)	64 dB(A)
Weight	40,2 kg	53,8 kg
Fan IP protection class	54

* Max. acoustic pressure level at a distance of 2 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption.

Technical data

Model: ELiS G-N-200 3V

General data

Max. air flow

m³/h

9700

Fan data

Power supply

V/Hz

1N ~ 230/50

Fan type

IP / Insulation class

Steps

Fan data at 3rd (max) speed

Air flow

m³/h

9700

Power consumption

1050

Current consumption

4,5

Acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption

dB(A)

Fan data at 2nd (mid) speed

Air flow

m³/h

6300

Power consumption

730

Current consumption

3,6

Acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption

dB(A)

Fan data at 1st (min) speed

Air flow

m³/h

3900

Power consumption

370

Current consumption

1,9

Acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption

dB(A)

Installation data

Max. mounting height

Max. width of door with curtain on one side

Max. door width with curtain on both sides

Min. distance to ceiling or wall

0,4

Dimensions

Length

2078

Depth

549

Height

639

Weight

58,0

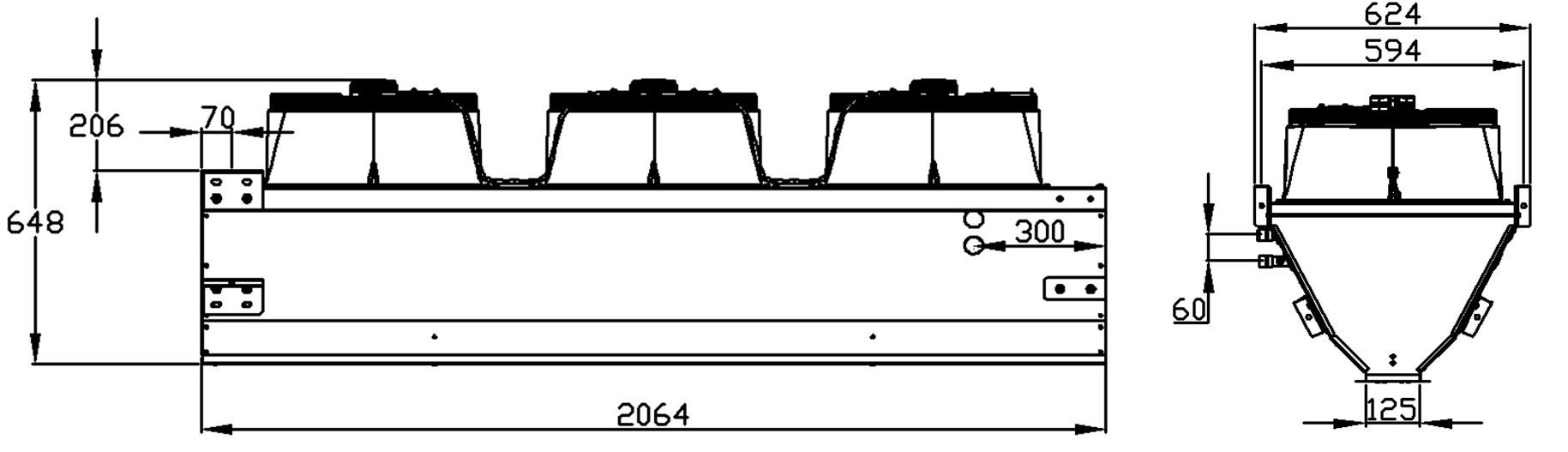

Dimensions

Model: ELiS G-N-200 3V

Industrial air curtains ELiS G are especially powerful: they provide for a strong flow of air and, thereby, form an effective air barrier blocking ingress of outdoor air, smog, insects and dust into the premises, as well as preventing draughts. These powerful air curtains are intended for use in industrial facilities: they can be mounted horizontally over large entry gates (at the height of as many as 7 m) or vertically – along the side of an entry gate. For installation on both sides, the maximum width of an entry gate can reach 13 m. The design of the air curtains ELiS G allows connecting individual modules one to another to form an air barrier of required length. An unlimited number of modules can be connected both horizontally and vertically.

Principle of operation: the drawn-in air is blown out at a high speed with the help of axial-flow fans through adjustable vanes (adjustable at ± 10° intervals). The flow fans have IP54 protection class – they are protected against dust and water splashes. The casing of industrial air curtains ELiS G is made from galvanized, corrosion-resistant, heavy duty steel. The operation of an air curtain can be controlled with the help of a magnetic door contact or thermostatic control valve.

Additional options for ordering ELiS G:

The unit can be provided with IP66 flow fans;
The casings can have an additional anticorrosive coating.

The advantages of a industrial air curtain ELiS G:

Intended for industrial purposes – a powerful air curtain provides for a strong flow of air and creates an effective air screen. The curtains are perfect for high and wide entry gate openings.
Tandem mounting – interconnecting of 0,5 m, 1,5 m, 2 m and 2,5 m modules allows obtaining the length required for entry gates and openings of various widths.
Multi-purpose air curtain – for installation both horizontally and vertically.
Only premium quality components: incredible axial-flow fans from the German company EBM, copper heat exchangers with aluminum plate-fins of high quality, casing from galvanized steel.
Good for aggressive environments – the air curtain can be ordered with its casing coated with an additional anticorrosive layer of paint, also with IP66 flow fans resistant to dust and water.
Quality guarantee – European product with technical properties meeting the declared values, CE certified.
Silent and economical fan performance. Plastic blades and German brushless motors of new generation ensure silent fan performance and minimum electricity consumption.
Extensive application: repair depots, workshops, warehouses, garages, logistics centers, shops, factories and other industrial buildings which require effective air barrier.

ELiS G 3V industrial air curtains

Manuals 4.7 MB

Declarations of conformity 238 KB

Brochures 928 KB

Hygienic certificate 850 KB

1x ELiS G 150/200 + TS + DCm wiring diagram (without RX control signal splitter) 2.6 MB

PDF

ELiS G-W water air curtains example of hydraulic connection for multiple units 178 KB

AutoCAD drawings 16.5 MB

DWG

BIM objects 6.8 MB

ZIP

TS controller for equipment with 3-speed fans

Manuals 187 KB

Declarations of conformity 211 KB

T-box controller

Manuals 22.7 MB

Declarations of conformity 643 KB

MODBUS protocol for connection to BMS 6.2 MB

T-box Zone controller

Manuals 7.4 MB

Declarations of conformity 643 KB

MODBUS protocol for connection to BMS 1.7 MB

DRV ELiS control module for 3-speed air curtains

Manuals 1.5 MB

RX control signal splitter for equipment with 3-speed fans

Manuals 2 MB

Declarations of conformity 210 KB

Model: ELiS G-N-200 3V

Control systems for standart units
	TS	3-step fan speed regulator with built-in room thermostat
	TS
	3-step fan speed regulator with built-in room thermostat
	RX	Control signal splitter for 3-step fans, single TS or HMI control panel allows to control up to 6 pcs. 3V fan heaters, up to 6 pcs. ELiS T air curtains or up to 3 pcs. ELiS G industrial air curtains, it is possible to chain up to 3 RX splitters to be able to control up to 18 units, possibility to control ON/OFF valves and connect DCet/DCm door contact
	RX
	Control signal splitter for 3-step fans, single TS or HMI control panel allows to control up to 6 pcs. 3V fan heaters, up to 6 pcs. ELiS T air curtains or up to 3 pcs. ELiS G industrial air curtains, it is possible to chain up to 3 RX splitters to be able to control up to 18 units, possibility to control ON/OFF valves and connect DCet/DCm door contact
Control systems for air curtains
	DCm	Mechanical door switch
	DCm
	Mechanical door switch
FLOWAIR control system
	T-box	Intelligent controller with touch screen, built-in room thermostat and programable week calendar, one controller can control up to 31 units, can be connected to BMS
	T-box
	Intelligent controller with touch screen, built-in room thermostat and programable week calendar, one controller can control up to 31 units, can be connected to BMS
	T-box Zone	Intelligent controller with touch screen, built-in room thermostat and programable week calendar, one controller can control up to 31 units, multi-zone control - can create up to 31 zones and control each unit independently, can be connected to BMS
	T-box Zone
	Intelligent controller with touch screen, built-in room thermostat and programable week calendar, one controller can control up to 31 units, multi-zone control - can create up to 31 zones and control each unit independently, can be connected to BMS
	DRV ELiS	Control module for ELiS T, ELiS C, ELiS G 3V units, allows to control them with T-box control panel, each unit requires seperate DRV module, up to 31 units can be connected together, allows to control units via BMS
	DRV ELiS
	Control module for ELiS T, ELiS C, ELiS G 3V units, allows to control them with T-box control panel, each unit requires seperate DRV module, up to 31 units can be connected together, allows to control units via BMS
	PT-1000	Temperature sensor for DRV control modules, IP65
	PT-1000
	Temperature sensor for DRV control modules, IP65

The company is engaged in designing, manufacture and installation of various type aluminum-glass structures and ventilated claddings. The company tends to invest in the most advanced production equipment, innovative technologies, it also takes care of its employees. The company’s warehouse has a vertical lift gate 4.5 m wide and 4 m tall. The gate is lifted up each time products need to be loaded, raw materials are delivered, etc. The usual inside temperature is 18°C. In winter time, the people working close to the gate were subject to much discomfort as, because of the gate going up and down, cold outdoor air used to get into the premises, meanwhile, the inside air used to “run out”; forming draughts and cold air flows. All this could be felt within the distance of 20 m away from the gate.
The problem was solved with the help of the industrial air curtain ELIS G. The powerful air curtain ELIS G installed horizontally at the height of 4 m provides for a strong flow of air downwards and creates an effective air screen: protects the warehouse premises against cold air flows from the outside, also draughts. The employees working close to the gate feel much more comfortable which facilitates proper performance of their job duties. The main advantage of a horizontal air curtain is the fact that a curtain mounted above a doorway draws in warm air accumulating just below the ceiling and blows it downwards.
