Electric air curtain - ELiS B-E-150 | Flowair

Select the product model:

Electric air curtain, recess mounting, max. mounting height 5 m, protection class IP21, can be connected to BMS, 11.5 kW heat output, air flow: three speeds 3200/3500/4000 m³/h, fan power 360 W, length 1.5 m, height 297 mm, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
ELiS B-E - recess mounting, max. mounting height 5 m, protection class IP21, can be connected to BMS
ELiS B-E-100 7.5 kW heat output, air flow: three speeds 2200/2500/2600 m³/h, fan power 340 W, length 1 m, height 297 mm, 2 year WARRANTY
ELiS B-E-100
7.5 kW heat output, air flow: three speeds 2200/2500/2600 m³/h, fan power 340 W, length 1 m, height 297 mm, 2 year WARRANTY
ELiS B-E-150 11.5 kW heat output, air flow: three speeds 3200/3500/4000 m³/h, fan power 360 W, length 1.5 m, height 297 mm, 2 year WARRANTY
ELiS B-E-150
11.5 kW heat output, air flow: three speeds 3200/3500/4000 m³/h, fan power 360 W, length 1.5 m, height 297 mm, 2 year WARRANTY
ELiS B-E-200 15.5 kW heat output, air flow: three speeds 4000/4300/5200 m³/h, fan power 380 W, length 2 m, height 297 mm, 2 year WARRANTY
ELiS B-E-200
15.5 kW heat output, air flow: three speeds 4000/4300/5200 m³/h, fan power 380 W, length 2 m, height 297 mm, 2 year WARRANTY
Model: ELiS B-E-150
General data
Heating output
kW
11,5
Air flow range (measured verticaly at 2 m/s speed limit)
m
5
Air temperature rise (ΔT) at 10°C inlet air temperature
°C
12
Max. air flow
m³/h
4000
Fan data
Max. power consumption
W
360
Max. current consumption
A
1,6
IP / Insulation class
21 / F
Steps
3
Fan data at 3rd (max) speed
Air flow
m³/h
4000
Acoustic pressure level at a distance of 2 m from the unit, in the 500 m³ room of medium capabillity of sound absorption
dB(A)
66
Fan data at 2nd (mid) speed
Air flow
m³/h
3500
Acoustic pressure level at a distance of 2 m from the unit, in the 500 m³ room of medium capabillity of sound absorption
dB(A)
62
Fan data at 1st (min) speed
Air flow
m³/h
3200
Acoustic pressure level at a distance of 2 m from the unit, in the 500 m³ room of medium capabillity of sound absorption
dB(A)
58
Installation data
Power supply
V/Hz
3x400 / 50
Power consumption
kW
11,5
Current consumption
A
16,6
Installation
Recessed
Other data
Heat exchanger
3 x PTC heating board
Casing
Aluminium, plastic, steel, EPP
Color
White (RAL 9016)
Dimensions
Length
mm
1546
Width
mm
600
Height
mm
297
Weight
kg
42,4

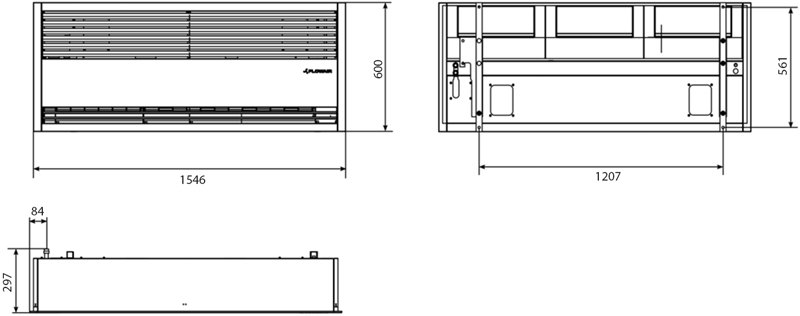

Dimensions

Model: ELiS B-E-150
Dimensions
ELiS B recessed air curtains
