Water air curtain - HEAT1-W-100 | HEAT1

Select the product model:

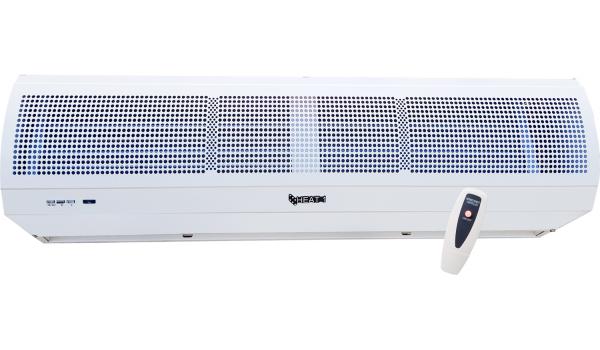

Water air curtain, horizontal mounting, full metal body, wireless remote control (up to 8 m), can be controlled by door contact, max. mounting height 3 m, heating capacity: from 6 kW (60/40°C) to 9 kW (90/70°C), air flow 1150/1500 m³/h, fan power 120/150 W, sound pressure level 57 dB(A), length 1 m, weight 18 kg, white color, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
HEAT1 W - horizontal mounting, full metal body, wireless remote control (up to 8 m), can be controlled by door contact, max. mounting height 3 m
HEAT1-W-100 Heating capacity: from 6 kW (60/40°C) to 9 kW (90/70°C), air flow 1150/1500 m³/h, fan power 120/150 W, sound pressure level 57 dB(A), length 1 m, weight 18 kg, white color, 2 year WARRANTY
HEAT1-W-100
Heating capacity: from 6 kW (60/40°C) to 9 kW (90/70°C), air flow 1150/1500 m³/h, fan power 120/150 W, sound pressure level 57 dB(A), length 1 m, weight 18 kg, white color, 2 year WARRANTY
HEAT1-W-150 Heating capacity: from 10 kW (60/40°C) to 13 kW (90/70°C), air flow 1750/2250 m³/h, fan power 160/200 W, sound pressure level 59 dB(A), length 1.5 m, weight 28 kg, white color, 2 year WARRANTY
HEAT1-W-150
Heating capacity: from 10 kW (60/40°C) to 13 kW (90/70°C), air flow 1750/2250 m³/h, fan power 160/200 W, sound pressure level 59 dB(A), length 1.5 m, weight 28 kg, white color, 2 year WARRANTY
HEAT1-W-200 Heating capacity: from 14 kW (60/40°C) to 17 kW (90/70°C), air flow 2550/3250 m³/h, fan power 280/320 W, sound pressure level 61 dB(A), length 2 m, weight 34 kg, white color, 2 year WARRANTY
HEAT1-W-200
Heating capacity: from 14 kW (60/40°C) to 17 kW (90/70°C), air flow 2550/3250 m³/h, fan power 280/320 W, sound pressure level 61 dB(A), length 2 m, weight 34 kg, white color, 2 year WARRANTY
Model: HEAT1-W-100
General data
Heating capacity at 90/70°C water temperature
kW
9
Heating capacity at 60/40°C water temperature
kW
6
Air temperature rise (ΔT) at 90/70°C water temperature
°C
26
Max. air flow
m³/h
1500
Fan data
Power supply
V/Hz
1PH, 230/50
Max. power consumption
W
150
Steps
2
Diameter of fan wheel
mm
115
Noise level
dB(A)
57
Fan data at 2nd (high) speed
Air flow
m³/h
1500
Air speed
m/s
9
Power consumption
W
150
Fan data at 1st (low) speed
Air flow
m³/h
1150
Air speed
m/s
7
Power consumption
W
120
Installation data
Installation
Horizontal

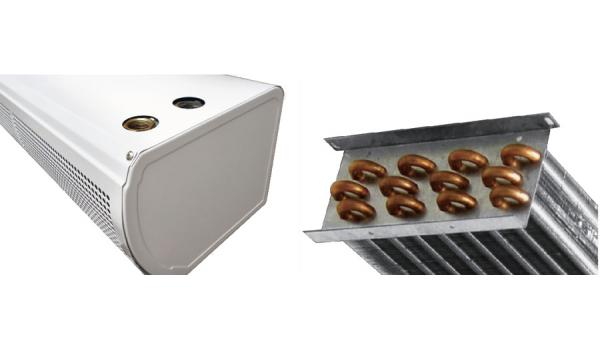

Hydraulic connection
Ø "
3/4
Max. mounting height
m
3
Other data
Color
White
Max. wireless remote control working distance
m
8
Dimensions
Length
mm
1000
Depth
mm
310
Height
mm
227
Weight
kg
18

Dimensions

Model: HEAT1-W-100
Dimensions
HEAT1 W water air curtains
Manuals 1.1 MB
