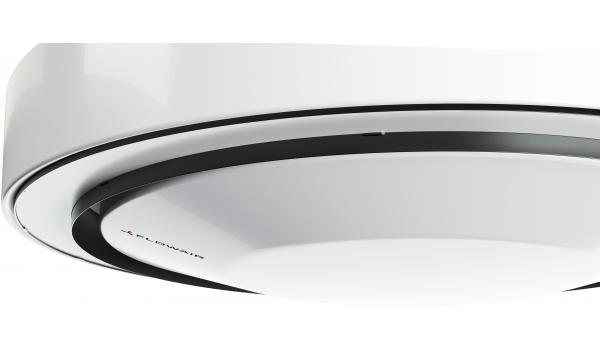

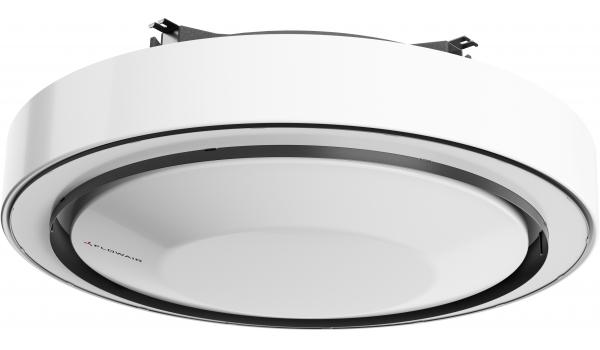

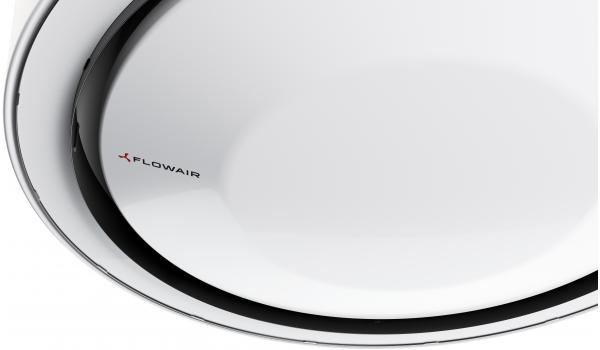

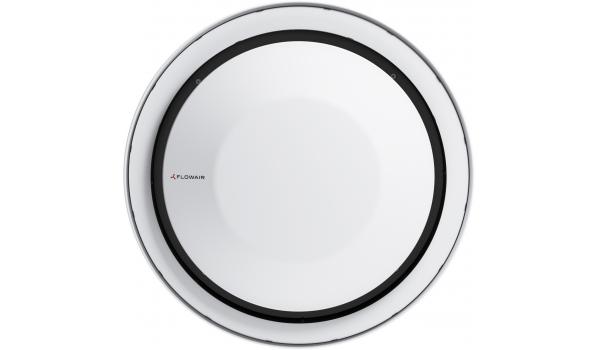

Fan coil, for mounting on the ceiling, EC type fan, stepless adjustment of airflow rate, light weight EPP casing covered by ABS plastic, innovative 360° air supply nozzle allows changing airflow direction, designed for high commercial spaces - installation height up to 8 m, can be connected to BMS, three row heat exchanger for heating and cooling, 4-pipe system, 10.8 kW heating capacity at 70/50°C water and 16°C air temperature and 10.3 kW cooling capacity at 7/12°C water and 26°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, integrated condensate collection tray and condensate pump, automatically changes the direction of air flow according to the selected heating or cooling mode, weight 33 kW, white color, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
LUNA - for mounting on the ceiling, EC type fan, stepless adjustment of airflow rate, light weight EPP casing covered by ABS plastic, innovative 360° air supply nozzle allows changing airflow direction, designed for high commercial spaces - installation height up to 8 m, can be connected to BMS
LUNA 2H WHITE Three row heat exchanger for heating only, 2-pipe system, 32.5 kW heating capacity at 70/50°C water and 16°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, weight 33 kW, white color, 2 year WARRANTY
LUNA 2H WHITE
Three row heat exchanger for heating only, 2-pipe system, 32.5 kW heating capacity at 70/50°C water and 16°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, weight 33 kW, white color, 2 year WARRANTY
LUNA 2HC WHITE Three row heat exchanger for heating or cooling, 2-pipe system, 32.5 kW heating capacity at 70/50°C water and 16°C air temperature or 14.6 kW cooling capacity at 7/12°C water and 26°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, integrated condensate collection tray and condensate pump, automatically changes the direction of air flow according to the selected heating or cooling mode, weight 33 kW, white color, 2 year WARRANTY
LUNA 2HC WHITE
Three row heat exchanger for heating or cooling, 2-pipe system, 32.5 kW heating capacity at 70/50°C water and 16°C air temperature or 14.6 kW cooling capacity at 7/12°C water and 26°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, integrated condensate collection tray and condensate pump, automatically changes the direction of air flow according to the selected heating or cooling mode, weight 33 kW, white color, 2 year WARRANTY
LUNA 4HC WHITE Three row heat exchanger for heating and cooling, 4-pipe system, 10.8 kW heating capacity at 70/50°C water and 16°C air temperature and 10.3 kW cooling capacity at 7/12°C water and 26°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, integrated condensate collection tray and condensate pump, automatically changes the direction of air flow according to the selected heating or cooling mode, weight 33 kW, white color, 2 year WARRANTY
LUNA 4HC WHITE
Three row heat exchanger for heating and cooling, 4-pipe system, 10.8 kW heating capacity at 70/50°C water and 16°C air temperature and 10.3 kW cooling capacity at 7/12°C water and 26°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, integrated condensate collection tray and condensate pump, automatically changes the direction of air flow according to the selected heating or cooling mode, weight 33 kW, white color, 2 year WARRANTY
LUNA 2H BLACK Three row heat exchanger for heating only, 2-pipe system, 32.5 kW heating capacity at 70/50°C water and 16°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, weight 33 kW, black color, 2 year WARRANTY
LUNA 2H BLACK
Three row heat exchanger for heating only, 2-pipe system, 32.5 kW heating capacity at 70/50°C water and 16°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, weight 33 kW, black color, 2 year WARRANTY
LUNA 2HC BLACK Three row heat exchanger for heating or cooling, 2-pipe system, 32.5 kW heating capacity at 70/50°C water and 16°C air temperature or 14.6 kW cooling capacity at 7/12°C water and 26°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, integrated condensate collection tray and condensate pump, automatically changes the direction of air flow according to the selected heating or cooling mode, weight 33 kW, black color, 2 year WARRANTY
LUNA 2HC BLACK
Three row heat exchanger for heating or cooling, 2-pipe system, 32.5 kW heating capacity at 70/50°C water and 16°C air temperature or 14.6 kW cooling capacity at 7/12°C water and 26°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, integrated condensate collection tray and condensate pump, automatically changes the direction of air flow according to the selected heating or cooling mode, weight 33 kW, black color, 2 year WARRANTY

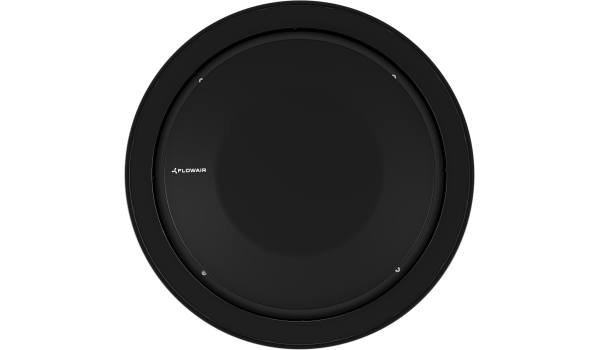

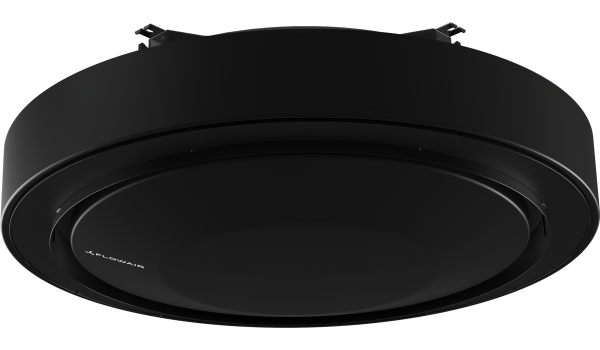

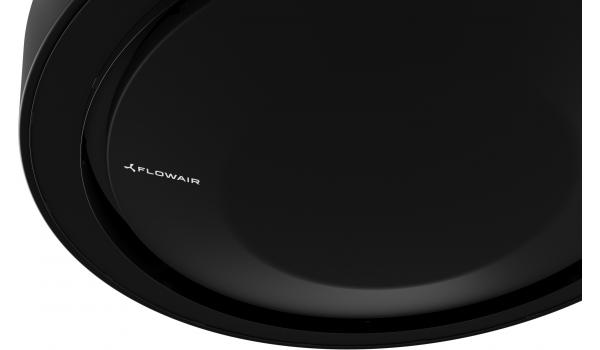

LUNA 4HC BLACK Three row heat exchanger for heating and cooling, 4-pipe system, 10.8 kW heating capacity at 70/50°C water and 16°C air temperature and 10.3 kW cooling capacity at 7/12°C water and 26°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, integrated condensate collection tray and condensate pump, automatically changes the direction of air flow according to the selected heating or cooling mode, weight 33 kW, black color, 2 year WARRANTY
LUNA 4HC BLACK
Three row heat exchanger for heating and cooling, 4-pipe system, 10.8 kW heating capacity at 70/50°C water and 16°C air temperature and 10.3 kW cooling capacity at 7/12°C water and 26°C air temperature, air flow 700-3500 m³/h, sound pressure level at 5 m distance from device 37-54 dB(A), max. electrical power consumption 0.39 kW, integrated condensate collection tray and condensate pump, automatically changes the direction of air flow according to the selected heating or cooling mode, weight 33 kW, black color, 2 year WARRANTY
Model: LUNA 4HC WHITE
General data
Nominal cooling power at 7/12°C water and 26°C air temperature with 55% relative humidity and fan at max speed
kW
10,3
Nominal heating power at 70/50°C water and 16°C air temperature, fan at max speed
kW
11,3
Stepless modulating air flow
m³/h
700 - 3500
Purpose
For heating and cooling
Installation data
Power supply
V/Hz
230/50
Max. power consumption
kW
0,39
Max. current consumption
A
1,7
Sound pressure at 5 meters distance from unit
dB(A)
37 - 54
IP protection class
20
Max. heating water temperature
°C
80
Max. operating pressure
bar
16
Hydraulic connection (4 pipes version)
Ø "
3/4
Operating temperature range
°C
+3 / +45
Max. mounting height
m
8
Other data
Color
White
Integrated condensate tray
Yes
Integrated condensate pump
Yes
Dimensions
Diameter
⌀ mm
1140
Height
mm
388
Weight without water
kg
33
Weight of unit filled with water
kg
36

Dimensions

Model: LUNA 4HC WHITE
Dimensions
LUNA ceiling mounted fan coil
