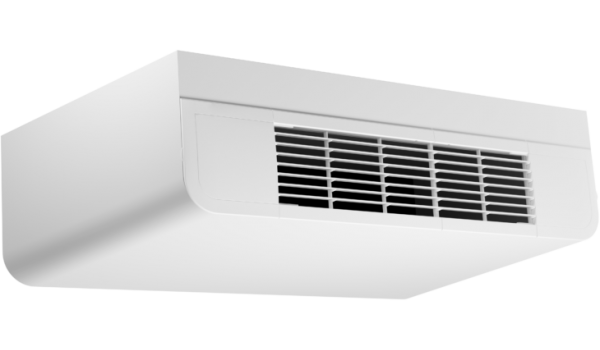

Fan coil, for horizontal ceiling mounting, three-speed AC type centrifugal fan, galvanized steel frame with anti-condensation coating and sound-absorbing material, galvanized steel casing painted in RAL9010 white color, delivered with condensate drain pan, G2 class air filter, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection, 4.35/4.71/6.08 kW heating capacity or 3.88/4.19/5.32 kW cooling capacity in 3 row heat exchanger, air flow 470/515/690 m³/h, sound pressure level 33/34/42 dB(A), max. fan power 138 W, dimensions 1240x485xH220 mm, weight 33.5 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
PS-FLH 2T - for horizontal ceiling mounting, three-speed AC type centrifugal fan, galvanized steel frame with anti-condensation coating and sound-absorbing material, galvanized steel casing painted in RAL9010 white color, delivered with condensate drain pan, G2 class air filter, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
PS-FLH 2T 030 2.32/2.47/3.14 kW heating capacity or 1.89/2.00/2.46 kW cooling capacity in 3 row heat exchanger, air flow 260/280/370 m³/h, sound pressure level 32/34/40 dB(A), max. fan power 61 W, dimensions 840x485xH220 mm, weight 24.5 kg, 2 year WARRANTY
PS-FLH 2T 030
2.32/2.47/3.14 kW heating capacity or 1.89/2.00/2.46 kW cooling capacity in 3 row heat exchanger, air flow 260/280/370 m³/h, sound pressure level 32/34/40 dB(A), max. fan power 61 W, dimensions 840x485xH220 mm, weight 24.5 kg, 2 year WARRANTY
PS-FLH 2T 050 2.76/3.54/4.43 kW heating capacity or 2.43/3.04/3.78 kW cooling capacity in 3 row heat exchanger, air flow 295/390/505 m³/h, sound pressure level 32/38/44 dB(A), max. fan power 74 W, dimensions 1040x485xH220 mm, weight 28.5 kg, 2 year WARRANTY
PS-FLH 2T 050
2.76/3.54/4.43 kW heating capacity or 2.43/3.04/3.78 kW cooling capacity in 3 row heat exchanger, air flow 295/390/505 m³/h, sound pressure level 32/38/44 dB(A), max. fan power 74 W, dimensions 1040x485xH220 mm, weight 28.5 kg, 2 year WARRANTY
PS-FLH 2T 070 4.35/4.71/6.08 kW heating capacity or 3.88/4.19/5.32 kW cooling capacity in 3 row heat exchanger, air flow 470/515/690 m³/h, sound pressure level 33/34/42 dB(A), max. fan power 138 W, dimensions 1240x485xH220 mm, weight 33.5 kg, 2 year WARRANTY
PS-FLH 2T 070
4.35/4.71/6.08 kW heating capacity or 3.88/4.19/5.32 kW cooling capacity in 3 row heat exchanger, air flow 470/515/690 m³/h, sound pressure level 33/34/42 dB(A), max. fan power 138 W, dimensions 1240x485xH220 mm, weight 33.5 kg, 2 year WARRANTY
PS-FLH 2T 100 4.82/6.66/8.58 kW heating capacity or 4.31/5.83/7.40 kW cooling capacity in 3 row heat exchanger, air flow 515/740/995 m³/h, sound pressure level 33/41/47 dB(A), max. fan power 186 W, dimensions 1440x485xH220 mm, weight 39.5 kg, 2 year WARRANTY
PS-FLH 2T 100
4.82/6.66/8.58 kW heating capacity or 4.31/5.83/7.40 kW cooling capacity in 3 row heat exchanger, air flow 515/740/995 m³/h, sound pressure level 33/41/47 dB(A), max. fan power 186 W, dimensions 1440x485xH220 mm, weight 39.5 kg, 2 year WARRANTY
PS-FLH 4T - for horizontal ceiling mounting, three-speed AC type centrifugal fan, galvanized steel frame with anti-condensation coating and sound-absorbing material, galvanized steel casing painted in RAL9010 white color, delivered with condensate drain pan, G2 class air filter, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection
PS-FLH 4T 034 2.43/2.54/3.07 kW heating capacity in 1 row heat exchanger and 1.89/2.00/2.46 kW cooling capacity in 3 row heat exchanger, air flow 260/280/370 m³/h, sound pressure level 32/34/40 dB(A), max. fan power 61 W, dimensions 840x485xH220 mm, weight 24.5 kg, 2 year WARRANTY
PS-FLH 4T 034
2.43/2.54/3.07 kW heating capacity in 1 row heat exchanger and 1.89/2.00/2.46 kW cooling capacity in 3 row heat exchanger, air flow 260/280/370 m³/h, sound pressure level 32/34/40 dB(A), max. fan power 61 W, dimensions 840x485xH220 mm, weight 24.5 kg, 2 year WARRANTY
PS-FLH 4T 054 3.06/3.75/4.46 kW heating capacity in 1 row heat exchanger and 2.43/3.04/3.78 kW cooling capacity in 3 row heat exchanger, air flow 295/390/505 m³/h, sound pressure level 32/38/44 dB(A), max. fan power 74 W, dimensions 1040x485xH220 mm, weight 28.5 kg, 2 year WARRANTY
PS-FLH 4T 054
3.06/3.75/4.46 kW heating capacity in 1 row heat exchanger and 2.43/3.04/3.78 kW cooling capacity in 3 row heat exchanger, air flow 295/390/505 m³/h, sound pressure level 32/38/44 dB(A), max. fan power 74 W, dimensions 1040x485xH220 mm, weight 28.5 kg, 2 year WARRANTY
PS-FLH 4T 074 4.64/4.95/6.00 kW heating capacity in 1 row heat exchanger and 3.88/4.19/5.32 kW cooling capacity in 3 row heat exchanger, air flow 470/515/690 m³/h, sound pressure level 33/34/42 dB(A), max. fan power 138 W, dimensions 1240x485xH220 mm, weight 33.5 kg, 2 year WARRANTY
PS-FLH 4T 074
4.64/4.95/6.00 kW heating capacity in 1 row heat exchanger and 3.88/4.19/5.32 kW cooling capacity in 3 row heat exchanger, air flow 470/515/690 m³/h, sound pressure level 33/34/42 dB(A), max. fan power 138 W, dimensions 1240x485xH220 mm, weight 33.5 kg, 2 year WARRANTY
PS-FLH 4T 104 5.48/7.01/8.52 kW heating capacity in 1 row heat exchanger and 4.31/5.83/7.40 kW cooling capacity in 3 row heat exchanger, air flow 515/740/995 m³/h, sound pressure level 33/41/47 dB(A), max. fan power 186 W, dimensions 1440x485xH220 mm, weight 39.5 kg, 2 year WARRANTY
PS-FLH 4T 104
5.48/7.01/8.52 kW heating capacity in 1 row heat exchanger and 4.31/5.83/7.40 kW cooling capacity in 3 row heat exchanger, air flow 515/740/995 m³/h, sound pressure level 33/41/47 dB(A), max. fan power 186 W, dimensions 1440x485xH220 mm, weight 39.5 kg, 2 year WARRANTY
PS-FLEH 2T - for horizontal ceiling mounting, EC type centrifugal fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel frame with anti-condensation coating and sound-absorbing material, galvanized steel casing painted in RAL9010 white color, delivered with condensate drain pan, G2 class air filter, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
PS-FLEH 2T 030 1.36/2.44/3.26 kW heating capacity or 0.98/1.44/2.18 kW cooling capacity in 3 row heat exchanger, air flow 170/360/495 m³/h, sound pressure level 33/41/48 dB(A), max. fan power 43 W, dimensions 840x485xH220 mm, weight 24.5 kg, 2 year WARRANTY
PS-FLEH 2T 030
1.36/2.44/3.26 kW heating capacity or 0.98/1.44/2.18 kW cooling capacity in 3 row heat exchanger, air flow 170/360/495 m³/h, sound pressure level 33/41/48 dB(A), max. fan power 43 W, dimensions 840x485xH220 mm, weight 24.5 kg, 2 year WARRANTY
PS-FLEH 2T 050 1.65/3.08/4.03 kW heating capacity or 1.24/2.35/3.11 kW cooling capacity in 3 row heat exchanger, air flow 190/390/540 m³/h, sound pressure level 33/41/48 dB(A), max. fan power 44 W, dimensions 1040x485xH220 mm, weight 28.5 kg, 2 year WARRANTY
PS-FLEH 2T 050
1.65/3.08/4.03 kW heating capacity or 1.24/2.35/3.11 kW cooling capacity in 3 row heat exchanger, air flow 190/390/540 m³/h, sound pressure level 33/41/48 dB(A), max. fan power 44 W, dimensions 1040x485xH220 mm, weight 28.5 kg, 2 year WARRANTY
PS-FLEH 2T 070 1.94/4.33/5.64 kW heating capacity or 1.59/3.53/4.57 kW cooling capacity in 3 row heat exchanger, air flow 215/540/745 m³/h, sound pressure level 33/39/46 dB(A), max. fan power 49 W, dimensions 1240x485xH220 mm, weight 33.5 kg, 2 year WARRANTY
PS-FLEH 2T 070
1.94/4.33/5.64 kW heating capacity or 1.59/3.53/4.57 kW cooling capacity in 3 row heat exchanger, air flow 215/540/745 m³/h, sound pressure level 33/39/46 dB(A), max. fan power 49 W, dimensions 1240x485xH220 mm, weight 33.5 kg, 2 year WARRANTY
PS-FLEH 2T 100 2.22/5.02/6.68 kW heating capacity or 1.77/4.05/5.36 kW cooling capacity in 3 row heat exchanger, air flow 245/620/875 m³/h, sound pressure level 33/39/48 dB(A), max. fan power 55 W, dimensions 1440x485xH220 mm, weight 39.5 kg, 2 year WARRANTY
PS-FLEH 2T 100
2.22/5.02/6.68 kW heating capacity or 1.77/4.05/5.36 kW cooling capacity in 3 row heat exchanger, air flow 245/620/875 m³/h, sound pressure level 33/39/48 dB(A), max. fan power 55 W, dimensions 1440x485xH220 mm, weight 39.5 kg, 2 year WARRANTY
PS-FLEH 4T - for horizontal ceiling mounting, EC type centrifugal fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel frame with anti-condensation coating and sound-absorbing material, galvanized steel casing painted in RAL9010 white color, delivered with condensate drain pan, G2 class air filter, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection
PS-FLEH 4T 034 1.24/2.03/2.50 kW heating capacity in 1 row heat exchanger and 0.98/1.44/2.18 kW cooling capacity in 3 row heat exchanger, air flow 170/360/495 m³/h, sound pressure level 33/41/48 dB(A), max. fan power 43 W, dimensions 840x485xH220 mm, weight 24.5 kg, 2 year WARRANTY
PS-FLEH 4T 034
1.24/2.03/2.50 kW heating capacity in 1 row heat exchanger and 0.98/1.44/2.18 kW cooling capacity in 3 row heat exchanger, air flow 170/360/495 m³/h, sound pressure level 33/41/48 dB(A), max. fan power 43 W, dimensions 840x485xH220 mm, weight 24.5 kg, 2 year WARRANTY
PS-FLEH 4T 054 1.60/2.61/3.24 kW heating capacity in 1 row heat exchanger and 1.24/2.35/3.11 kW cooling capacity in 3 row heat exchanger, air flow 190/390/540 m³/h, sound pressure level 33/41/48 dB(A), max. fan power 44 W, dimensions 1040x485xH220 mm, weight 28.5 kg, 2 year WARRANTY
PS-FLEH 4T 054
1.60/2.61/3.24 kW heating capacity in 1 row heat exchanger and 1.24/2.35/3.11 kW cooling capacity in 3 row heat exchanger, air flow 190/390/540 m³/h, sound pressure level 33/41/48 dB(A), max. fan power 44 W, dimensions 1040x485xH220 mm, weight 28.5 kg, 2 year WARRANTY
PS-FLEH 4T 074 1.95/3.67/4.54 kW heating capacity in 1 row heat exchanger and 1.59/3.53/4.57 kW cooling capacity in 3 row heat exchanger, air flow 215/540/745 m³/h, sound pressure level 33/39/46 dB(A), max. fan power 49 W, dimensions 1240x485xH220 mm, weight 33.5 kg, 2 year WARRANTY
PS-FLEH 4T 074
1.95/3.67/4.54 kW heating capacity in 1 row heat exchanger and 1.59/3.53/4.57 kW cooling capacity in 3 row heat exchanger, air flow 215/540/745 m³/h, sound pressure level 33/39/46 dB(A), max. fan power 49 W, dimensions 1240x485xH220 mm, weight 33.5 kg, 2 year WARRANTY
PS-FLEH 4T 104 2.23/4.22/5.32 kW heating capacity in 1 row heat exchanger and 1.77/4.05/5.36 kW cooling capacity in 3 row heat exchanger, air flow 245/620/875 m³/h, sound pressure level 33/39/48 dB(A), max. fan power 55 W, dimensions 1440x485xH220 mm, weight 39.5 kg, 2 year WARRANTY
PS-FLEH 4T 104
2.23/4.22/5.32 kW heating capacity in 1 row heat exchanger and 1.77/4.05/5.36 kW cooling capacity in 3 row heat exchanger, air flow 245/620/875 m³/h, sound pressure level 33/39/48 dB(A), max. fan power 55 W, dimensions 1440x485xH220 mm, weight 39.5 kg, 2 year WARRANTY
