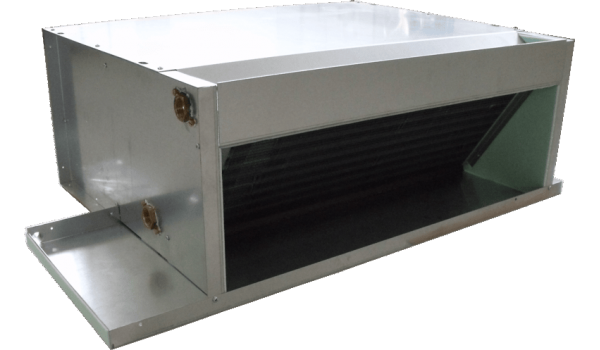

Fan coil, without casing, for horizontal concealed mounting inside ceiling, three-speed AC type centrifugal fan, ductable for static pressure up to 150 Pa, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, air filter, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection, 6.51/9.01/10.02 kW heating capacity in 1 row heat exchanger and 5.17/8.30/9.62 kW cooling capacity in 3 row heat exchanger, air flow 890/1625/1975 m³/h, sound pressure level 46 dB(A), max. fan power 262 W, dimensions 1300x620xH275 mm, weight 42 kg, 2 year WARRANTY

Manufacturer:

Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer

Models specifications
Documentation
Accessories, related items
Download PDF

Click on the Model for technical data, dimensions, accessories

PS-DC 2T - without casing, for horizontal concealed mounting inside ceiling, three-speed AC type centrifugal fan, ductable for static pressure up to 150 Pa, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, air filter, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
	PS-DC 2T 110	4.38/6.89/7.96 kW heating capacity or 3.17/5.08/5.89 kW cooling capacity in 3 row heat exchanger, air flow 530/905/1080 m³/h, sound pressure level 44 dB(A), max. fan power 142 W, dimensions 900x620xH275 mm, weight 30 kg, 2 year WARRANTY
		PS-DC 2T 110
		4.38/6.89/7.96 kW heating capacity or 3.17/5.08/5.89 kW cooling capacity in 3 row heat exchanger, air flow 530/905/1080 m³/h, sound pressure level 44 dB(A), max. fan power 142 W, dimensions 900x620xH275 mm, weight 30 kg, 2 year WARRANTY
	PS-DC 2T 140	6.95/11.32/12.81 kW heating capacity or 5.16/8.47/9.58 kW cooling capacity in 3 row heat exchanger, air flow 860/1545/1800 m³/h, sound pressure level 48 dB(A), max. fan power 252 W, dimensions 1100x620xH275 mm, weight 36 kg, 2 year WARRANTY
		PS-DC 2T 140
6.95/11.32/12.81 kW heating capacity or 5.16/8.47/9.58 kW cooling capacity in 3 row heat exchanger, air flow 860/1545/1800 m³/h, sound pressure level 48 dB(A), max. fan power 252 W, dimensions 1100x620xH275 mm, weight 36 kg, 2 year WARRANTY
PS-DC 2T 160		7.50/12.48/14.64 kW heating capacity or 5.86/9.70/11.34 kW cooling capacity in 3 row heat exchanger, air flow 890/1625/1975 m³/h, sound pressure level 46 dB(A), max. fan power 262 W, dimensions 1300x620xH275 mm, weight 42 kg, 2 year WARRANTY
	PS-DC 2T 160
	7.50/12.48/14.64 kW heating capacity or 5.86/9.70/11.34 kW cooling capacity in 3 row heat exchanger, air flow 890/1625/1975 m³/h, sound pressure level 46 dB(A), max. fan power 262 W, dimensions 1300x620xH275 mm, weight 42 kg, 2 year WARRANTY
PS-DC 2T 220	9.78/16.07/18.76 kW heating capacity or 7.64/12.47/14.51 kW cooling capacity in 3 row heat exchanger, air flow 1175/2125/2570 m³/h, sound pressure level 48 dB(A), max. fan power 358 W, dimensions 1500x620xH275 mm, weight 55 kg, 2 year WARRANTY
	PS-DC 2T 220
	9.78/16.07/18.76 kW heating capacity or 7.64/12.47/14.51 kW cooling capacity in 3 row heat exchanger, air flow 1175/2125/2570 m³/h, sound pressure level 48 dB(A), max. fan power 358 W, dimensions 1500x620xH275 mm, weight 55 kg, 2 year WARRANTY
PS-DC 2T 290	11.43/19.20/21.90 kW heating capacity or 8.91/14.94/17.00 kW cooling capacity in 3 row heat exchanger, air flow 1345/2480/2910 m³/h, sound pressure level 48 dB(A), max. fan power 378 W, dimensions 1700x620xH275 mm, weight 66 kg, 2 year WARRANTY
	PS-DC 2T 290
	11.43/19.20/21.90 kW heating capacity or 8.91/14.94/17.00 kW cooling capacity in 3 row heat exchanger, air flow 1345/2480/2910 m³/h, sound pressure level 48 dB(A), max. fan power 378 W, dimensions 1700x620xH275 mm, weight 66 kg, 2 year WARRANTY
PS-DC 4T - without casing, for horizontal concealed mounting inside ceiling, three-speed AC type centrifugal fan, ductable for static pressure up to 150 Pa, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, air filter, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection
	PS-DC 4T 114	3.14/4.44/4.98 kW heating capacity in 1 row heat exchanger and 2.89/4.46/5.12 kW cooling capacity in 3 row heat exchanger, air flow 530/905/1080 m³/h, sound pressure level 44 dB(A), max. fan power 142 W, dimensions 900x620xH275 mm, weight 30 kg, 2 year WARRANTY
		PS-DC 4T 114
		3.14/4.44/4.98 kW heating capacity in 1 row heat exchanger and 2.89/4.46/5.12 kW cooling capacity in 3 row heat exchanger, air flow 530/905/1080 m³/h, sound pressure level 44 dB(A), max. fan power 142 W, dimensions 900x620xH275 mm, weight 30 kg, 2 year WARRANTY
	PS-DC 4T 144	9.91/14.57/16.01 kW heating capacity in 1 row heat exchanger and 4.54/7.20/8.08 kW cooling capacity in 3 row heat exchanger, air flow 860/1545/1800 m³/h, sound pressure level 48 dB(A), max. fan power 252 W, dimensions 1100x620xH275 mm, weight 36 kg, 2 year WARRANTY
		PS-DC 4T 144
9.91/14.57/16.01 kW heating capacity in 1 row heat exchanger and 4.54/7.20/8.08 kW cooling capacity in 3 row heat exchanger, air flow 860/1545/1800 m³/h, sound pressure level 48 dB(A), max. fan power 252 W, dimensions 1100x620xH275 mm, weight 36 kg, 2 year WARRANTY
PS-DC 4T 164		6.51/9.01/10.02 kW heating capacity in 1 row heat exchanger and 5.17/8.30/9.62 kW cooling capacity in 3 row heat exchanger, air flow 890/1625/1975 m³/h, sound pressure level 46 dB(A), max. fan power 262 W, dimensions 1300x620xH275 mm, weight 42 kg, 2 year WARRANTY
	PS-DC 4T 164
	6.51/9.01/10.02 kW heating capacity in 1 row heat exchanger and 5.17/8.30/9.62 kW cooling capacity in 3 row heat exchanger, air flow 890/1625/1975 m³/h, sound pressure level 46 dB(A), max. fan power 262 W, dimensions 1300x620xH275 mm, weight 42 kg, 2 year WARRANTY
PS-DC 4T 224	8.10/11.22/12.49 kW heating capacity in 1 row heat exchanger and 6.30/10.11/11.68 kW cooling capacity in 3 row heat exchanger, air flow 1175/2125/2570 m³/h, sound pressure level 48 dB(A), max. fan power 358 W, dimensions 1500x620xH275 mm, weight 55 kg, 2 year WARRANTY
	PS-DC 4T 224
	8.10/11.22/12.49 kW heating capacity in 1 row heat exchanger and 6.30/10.11/11.68 kW cooling capacity in 3 row heat exchanger, air flow 1175/2125/2570 m³/h, sound pressure level 48 dB(A), max. fan power 358 W, dimensions 1500x620xH275 mm, weight 55 kg, 2 year WARRANTY
PS-DC 4T 294	9.98/14.21/15.41 kW heating capacity in 1 row heat exchanger and 8.02/12.95/14.63 kW cooling capacity in 3 row heat exchanger, air flow 1345/2480/2910 m³/h, sound pressure level 48 dB(A), max. fan power 378 W, dimensions 1700x620xH275 mm, weight 66 kg, 2 year WARRANTY
	PS-DC 4T 294
	9.98/14.21/15.41 kW heating capacity in 1 row heat exchanger and 8.02/12.95/14.63 kW cooling capacity in 3 row heat exchanger, air flow 1345/2480/2910 m³/h, sound pressure level 48 dB(A), max. fan power 378 W, dimensions 1700x620xH275 mm, weight 66 kg, 2 year WARRANTY
PS-DCE 2T - without casing, for horizontal concealed mounting inside ceiling, EC type centrifugal fan, ductable for static pressure up to 150 Pa, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, air filter, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
	PS-DCE 2T 110	2.66/5.72/7.90 kW heating capacity or 1.94/4.19/5.85 kW cooling capacity in 3 row heat exchanger, air flow 300/725/1070 m³/h, sound pressure level 24/34/44 dB(A), max. fan power 124 W, dimensions 900x620xH275 mm, weight 32 kg, 2 year WARRANTY
		PS-DCE 2T 110
		2.66/5.72/7.90 kW heating capacity or 1.94/4.19/5.85 kW cooling capacity in 3 row heat exchanger, air flow 300/725/1070 m³/h, sound pressure level 24/34/44 dB(A), max. fan power 124 W, dimensions 900x620xH275 mm, weight 32 kg, 2 year WARRANTY
	PS-DCE 2T 140	4.23/9.42/12.81 kW heating capacity or 3.18/7.05/9.58 kW cooling capacity in 3 row heat exchanger, air flow 485/1235/1800 m³/h, sound pressure level 25/37/48 dB(A), max. fan power 220 W, dimensions 1100x620xH275 mm, weight 38 kg, 2 year WARRANTY
		PS-DCE 2T 140
4.23/9.42/12.81 kW heating capacity or 3.18/7.05/9.58 kW cooling capacity in 3 row heat exchanger, air flow 485/1235/1800 m³/h, sound pressure level 25/37/48 dB(A), max. fan power 220 W, dimensions 1100x620xH275 mm, weight 38 kg, 2 year WARRANTY
PS-DCE 2T 160		4.52/10.06/14.63 kW heating capacity or 3.60/7.85/11.33 kW cooling capacity in 3 row heat exchanger, air flow 500/1255/1973 m³/h, sound pressure level 24/35/46 dB(A), max. fan power 228 W, dimensions 1300x620xH275 mm, weight 44 kg, 2 year WARRANTY
	PS-DCE 2T 160
	4.52/10.06/14.63 kW heating capacity or 3.60/7.85/11.33 kW cooling capacity in 3 row heat exchanger, air flow 500/1255/1973 m³/h, sound pressure level 24/35/46 dB(A), max. fan power 228 W, dimensions 1300x620xH275 mm, weight 44 kg, 2 year WARRANTY
PS-DCE 2T 220	6.10/13.49/18.76 kW heating capacity or 4.82/10.51/14.51 kW cooling capacity in 3 row heat exchanger, air flow 685/1720/2570 m³/h, sound pressure level 26/37/48 dB(A), max. fan power 316 W, dimensions 1500x620xH275 mm, weight 57 kg, 2 year WARRANTY
	PS-DCE 2T 220
	6.10/13.49/18.76 kW heating capacity or 4.82/10.51/14.51 kW cooling capacity in 3 row heat exchanger, air flow 685/1720/2570 m³/h, sound pressure level 26/37/48 dB(A), max. fan power 316 W, dimensions 1500x620xH275 mm, weight 57 kg, 2 year WARRANTY
PS-DCE 2T 290	7.60/15.50/21.90 kW heating capacity or 6.03/12.10/16.99 kW cooling capacity in 3 row heat exchanger, air flow 845/1920/2909 m³/h, sound pressure level 27/38/48 dB(A), max. fan power 326 W, dimensions 1700x620xH275 mm, weight 68 kg, 2 year WARRANTY
	PS-DCE 2T 290
	7.60/15.50/21.90 kW heating capacity or 6.03/12.10/16.99 kW cooling capacity in 3 row heat exchanger, air flow 845/1920/2909 m³/h, sound pressure level 27/38/48 dB(A), max. fan power 326 W, dimensions 1700x620xH275 mm, weight 68 kg, 2 year WARRANTY
PS-DCE 4T - without casing, for horizontal concealed mounting inside ceiling, EC type centrifugal fan, ductable for static pressure up to 150 Pa, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, air filter, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection
	PS-DCE 4T 114	2.13/3.84/4.97 kW heating capacity in 1 row heat exchanger and 1.70/3.74/5.08 kW cooling capacity in 3 row heat exchanger, air flow 300/725/1070 m³/h, sound pressure level 21/31/41 dB(A), max. fan power 124 W, dimensions 900x620xH275 mm, weight 32 kg, 2 year WARRANTY
		PS-DCE 4T 114
		2.13/3.84/4.97 kW heating capacity in 1 row heat exchanger and 1.70/3.74/5.08 kW cooling capacity in 3 row heat exchanger, air flow 300/725/1070 m³/h, sound pressure level 21/31/41 dB(A), max. fan power 124 W, dimensions 900x620xH275 mm, weight 32 kg, 2 year WARRANTY
	PS-DCE 4T 144	3.34/6.22/7.96 kW heating capacity in 1 row heat exchanger and 2.71/6.06/8.08 kW cooling capacity in 3 row heat exchanger, air flow 485/1235/1800 m³/h, sound pressure level 22/34/45 dB(A), max. fan power 220 W, dimensions 1100x620xH275 mm, weight 38 kg, 2 year WARRANTY
		PS-DCE 4T 144
3.34/6.22/7.96 kW heating capacity in 1 row heat exchanger and 2.71/6.06/8.08 kW cooling capacity in 3 row heat exchanger, air flow 485/1235/1800 m³/h, sound pressure level 22/34/45 dB(A), max. fan power 220 W, dimensions 1100x620xH275 mm, weight 38 kg, 2 year WARRANTY
PS-DCE 4T 164		3.75/6.94/9.31 kW heating capacity in 1 row heat exchanger and 3.16/6.80/9.02 kW cooling capacity in 3 row heat exchanger, air flow 500/1255/1973 m³/h, sound pressure level 21/32/43 dB(A), max. fan power 228 W, dimensions 1300x620xH275 mm, weight 44 kg, 2 year WARRANTY
	PS-DCE 4T 164
	3.75/6.94/9.31 kW heating capacity in 1 row heat exchanger and 3.16/6.80/9.02 kW cooling capacity in 3 row heat exchanger, air flow 500/1255/1973 m³/h, sound pressure level 21/32/43 dB(A), max. fan power 228 W, dimensions 1300x620xH275 mm, weight 44 kg, 2 year WARRANTY
PS-DCE 4T 224	4.97/9.18/11.99 kW heating capacity in 1 row heat exchanger and 3.82/8.57/11.68 kW cooling capacity in 3 row heat exchanger, air flow 685/1720/2570 m³/h, sound pressure level 23/34/45 dB(A), max. fan power 316 W, dimensions 1500x620xH275 mm, weight 57 kg, 2 year WARRANTY
	PS-DCE 4T 224
	4.97/9.18/11.99 kW heating capacity in 1 row heat exchanger and 3.82/8.57/11.68 kW cooling capacity in 3 row heat exchanger, air flow 685/1720/2570 m³/h, sound pressure level 23/34/45 dB(A), max. fan power 316 W, dimensions 1500x620xH275 mm, weight 57 kg, 2 year WARRANTY
PS-DCE 4T 294	6.23/10.79/14.18 kW heating capacity in 1 row heat exchanger and 5.42/10.64/14.63 kW cooling capacity in 3 row heat exchanger, air flow 845/1920/2909 m³/h, sound pressure level 24/35/45 dB(A), max. fan power 326 W, dimensions 1700x620xH275 mm, weight 68 kg, 2 year WARRANTY
	PS-DCE 4T 294
	6.23/10.79/14.18 kW heating capacity in 1 row heat exchanger and 5.42/10.64/14.63 kW cooling capacity in 3 row heat exchanger, air flow 845/1920/2909 m³/h, sound pressure level 24/35/45 dB(A), max. fan power 326 W, dimensions 1700x620xH275 mm, weight 68 kg, 2 year WARRANTY

PS-DC / PS-DCE ductable up to 150 Pa concealed fan coil units

Manuals 651 KB

Brochures 1.2 MB

Catalogue 4.6 MB

TEL wireless remote control panel

Manuals 254 KB

Fan coils controllers

Brochures 8.1 MB

Model: PS-DC 4T 164

Control panels for fan coils
	TER.ANA	Suitable for 2-pipe and 4-pipe units with AC fans, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
	TER.ANA
	Suitable for 2-pipe and 4-pipe units with AC fans, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
	TER.ANA.S	Suitable for 2-pipe and 4-pipe units with AC fans, automatic 3 steps fan speed selection, integrated thermostat, possibility to remotely turn device on/off, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units without valves
	TER.ANA.S
	Suitable for 2-pipe and 4-pipe units with AC fans, automatic 3 steps fan speed selection, integrated thermostat, possibility to remotely turn device on/off, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units without valves
	TER.DIG	Suitable for 2-pipe and 4-pipe units with AC fans, LCD display, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
	TER.DIG
	Suitable for 2-pipe and 4-pipe units with AC fans, LCD display, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
	TER.DIG.S	Suitable for 2-pipe and 4-pipe units with AC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional SM sensor, possibility to control additional electric heater, on/off valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
	TER.DIG.S
	Suitable for 2-pipe and 4-pipe units with AC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional SM sensor, possibility to control additional electric heater, on/off valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
	TER.BUS	Suitable for 2-pipe and 4-pipe units with AC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via Modbus RTU protocol, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
		TER.BUS
Suitable for 2-pipe and 4-pipe units with AC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via Modbus RTU protocol, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
TER.BAC		Suitable for 2-pipe and 4-pipe units with AC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via BACnet MS/TP protocol, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
	TER.BAC
	Suitable for 2-pipe and 4-pipe units with AC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via BACnet MS/TP protocol, for use with PS-FS, PS-FL/FLF/FLH, PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
	TEL	Wireless, suitable for 2-pipe and 4-pipe units, LCD display, manual and automatic 3 steps fan speed selection, manual summer/winter mode, on/off valves control, possibility to connect supply hot water detection temperature sensor TM, for use with PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES, PS-DC/DCE/HDC/HDCE units, required to use together with KIT.TEL or KIT.TEL.EC accessory
	TEL
	Wireless, suitable for 2-pipe and 4-pipe units, LCD display, manual and automatic 3 steps fan speed selection, manual summer/winter mode, on/off valves control, possibility to connect supply hot water detection temperature sensor TM, for use with PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES, PS-DC/DCE/HDC/HDCE units, required to use together with KIT.TEL or KIT.TEL.EC accessory
Accessories for fan coils controls
	KIT.TEL	Wireless control panel signal receiver and unit control PCB together with temperature probe, for installation inside fan coil unit with AC type fan, fits to PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
	KIT.TEL
	Wireless control panel signal receiver and unit control PCB together with temperature probe, for installation inside fan coil unit with AC type fan, fits to PS-CL/CLH, PS-UWL/UWLF/UWLV, PS-DC/HDC units
	KIT.WI-FI	Electronic board for remote control of PS-FS, PS-FL/FLF/FLH, PS-UWL/UWLF/UWLV, PS-DC/HDC fan coil units with AC type fan via Wi-Fi connection and app for smart Android / IOS devices, delivered with air temperature probe
	KIT.WI-FI
	Electronic board for remote control of PS-FS, PS-FL/FLF/FLH, PS-UWL/UWLF/UWLV, PS-DC/HDC fan coil units with AC type fan via Wi-Fi connection and app for smart Android / IOS devices, delivered with air temperature probe
	KIT.BUS	Electronic board for PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DC/DCE/HDC/HDCE fan coil units connection to BMS via Mod-Bus protocol, delivered with air temperature probe
	KIT.BUS
	Electronic board for PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DC/DCE/HDC/HDCE fan coil units connection to BMS via Mod-Bus protocol, delivered with air temperature probe
	DIS.BUS	Information screen to display data from device controlled via KIT.BUS electronic board
	DIS.BUS
	Information screen to display data from device controlled via KIT.BUS electronic board
	IDP	Power interface distributor that allows to use single TER.ANA / TER.ANA.M / TER.ANA.S / TER.ANA.S.M / TER.DIG / TER.DIG.M / TER.DIG.D / TER.DIG.D.M / TER.DIG.S / TER.TOUCH / TER.TOUCH.M control panel for up to 4 fan coil units with AC type fans
	IDP
	Power interface distributor that allows to use single TER.ANA / TER.ANA.M / TER.ANA.S / TER.ANA.S.M / TER.DIG / TER.DIG.M / TER.DIG.D / TER.DIG.D.M / TER.DIG.S / TER.TOUCH / TER.TOUCH.M control panel for up to 4 fan coil units with AC type fans
	TM	Supply hot water detection (35°C) temperature sensor for turning on fan coil unit in heating mode only when hot water is flowing, to be used with units without valve or with 3-way valve, usable with TER.ANA.S / TER.ANA.S.M / TER.DIG.S / TER.EC.DIG / TER.EC.DIG.M / TER.BUS / TER.BUS.M / TER.BAC / TER.BAC.M / TER.EC.BUS / TER.EC.BUS.M / TER.EC.BAC / TEL control panels
	TM
	Supply hot water detection (35°C) temperature sensor for turning on fan coil unit in heating mode only when hot water is flowing, to be used with units without valve or with 3-way valve, usable with TER.ANA.S / TER.ANA.S.M / TER.DIG.S / TER.EC.DIG / TER.EC.DIG.M / TER.BUS / TER.BUS.M / TER.BAC / TER.BAC.M / TER.EC.BUS / TER.EC.BUS.M / TER.EC.BAC / TEL control panels
Water valves
	ATT.230	On/Off actuator for water valve, powered by 230 V
		ATT.230
On/Off actuator for water valve, powered by 230 V
ATT.230.M		On/Off actuator for water valve, powered by 230 V, with limit switch
	ATT.230.M
	On/Off actuator for water valve, powered by 230 V, with limit switch
	ATT.MOD	Modulating by 0-10 V signal actuator for water valve
	ATT.MOD
	Modulating by 0-10 V signal actuator for water valve
	VAL.2V.34.DC	2-way water valve for PS-DC/DCE fan coil units, for 080 - 164 size units it is used for heating and cooling, for 4 pipe 224 size units it is used only for heating, 3/4" connection
	VAL.2V.34.DC
	2-way water valve for PS-DC/DCE fan coil units, for 080 - 164 size units it is used for heating and cooling, for 4 pipe 224 size units it is used only for heating, 3/4" connection
	VAL.3V.34.DC	3-way water valve for PS-DC/DCE fan coil units, for 080 - 164 size units it is used for heating and cooling, for 4 pipe 224 size units it is used only for heating, 3/4" connection
	VAL.3V.34.DC
	3-way water valve for PS-DC/DCE fan coil units, for 080 - 164 size units it is used for heating and cooling, for 4 pipe 224 size units it is used only for heating, 3/4" connection
	VAL.34.DIN.DC	Balancing water valve for PS-DC/DCE fan coil units, for 080 - 164 size units it is used for heating and cooling, for 4 pipe 224 size units it is used only for heating, 3/4" connection
	VAL.34.DIN.DC
	Balancing water valve for PS-DC/DCE fan coil units, for 080 - 164 size units it is used for heating and cooling, for 4 pipe 224 size units it is used only for heating, 3/4" connection
Condensate drain pumps
	POM.CON.20	Condensate drain pump for PS-WLE, PS-FL/FLF/FLH/FLE/FLEF/FLEH, PS-UWLED, PS-DC/DCE/HDC/HDCE fan coil units, flow rate 20 l/h
	POM.CON.20
	Condensate drain pump for PS-WLE, PS-FL/FLF/FLH/FLE/FLEF/FLEH, PS-UWLED, PS-DC/DCE/HDC/HDCE fan coil units, flow rate 20 l/h
Air inlet / outlet spigot plenums
	PLE.CIR.160	Air inlet / outlet spigot plenum for 160 / 164 size PS-DC/DCE fan coils, quantity of spigots 3 pcs., diameter of spigots Ø150 mm
	PLE.CIR.160
	Air inlet / outlet spigot plenum for 160 / 164 size PS-DC/DCE fan coils, quantity of spigots 3 pcs., diameter of spigots Ø150 mm
Air inlet / outlet adjustable length telescopic plenums
	TLDCT.160	Air inlet / outlet adjustable length telescopic plenum for 160 / 164 size PS-DC/DCE fan coil units, dimensions 200x1090 mm
	TLDCT.160
	Air inlet / outlet adjustable length telescopic plenum for 160 / 164 size PS-DC/DCE fan coil units, dimensions 200x1090 mm
Air supply grilles
	GRM.160	Aluminium air supply grille with adjustable fins for 160 / 164 size PS-DC/DCE fan coil units, dimensions 200x1090 mm
	GRM.160
	Aluminium air supply grille with adjustable fins for 160 / 164 size PS-DC/DCE fan coil units, dimensions 200x1090 mm
Air intake grilles
	GRA.160	Aluminium air intake grille for 160 / 164 size PS-DC/DCE fan coil units, dimensions 200x1090 mm
	GRA.160
	Aluminium air intake grille for 160 / 164 size PS-DC/DCE fan coil units, dimensions 200x1090 mm
	GRF.140160	Aluminium air intake grille with G3 class filter for 140 - 164 size PS-DC/DCE fan coil units, dimensions 400x800 mm
	GRF.140160
	Aluminium air intake grille with G3 class filter for 140 - 164 size PS-DC/DCE fan coil units, dimensions 400x800 mm
Antibacterial UV LED lamps
	LAM.UV.LED.140160	Antibacterial UV-C LED lamp for 140 - 164 size PS-DC/DCE fan coil units
	LAM.UV.LED.140160
	Antibacterial UV-C LED lamp for 140 - 164 size PS-DC/DCE fan coil units
Painting in non-standard colors
	GRM-V-DC	Painting of GRM DC air supply grille in selectable RAL color
		GRM-V-DC
		Painting of GRM DC air supply grille in selectable RAL color
GRA-V-DC	Painting of GRA DC air intake grille in selectable RAL color
	GRA-V-DC
	Painting of GRA DC air intake grille in selectable RAL color
GRF-V-DC	Painting of GRF HDC air intake grille in selectable RAL color
	GRF-V-DC
	Painting of GRF HDC air intake grille in selectable RAL color
