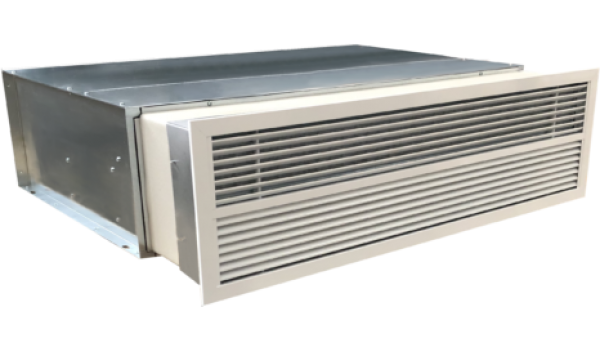

Fan coil, without casing, for horizontal concealed mounting inside ceiling, frontal air inlet and outlet via double GRDF aluminum grille (should be ordered seperately), EC type centrifugal fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection, 1.21/1.68/2.08 kW heating capacity in 1 row heat exchanger and 0.99/1.56/2.18 kW cooling capacity in 4 row heat exchanger, air flow 199/312/488 m³/h, sound pressure level 24/30/36 dB(A), max. fan power 45 W, dimensions with adjustable length telescopic grille nozzle 650x780-810xH250 mm, weight 23 kg, 2 year WARRANTY

Manufacturer:

Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer

Models specifications
Documentation
Accessories, related items
Download PDF

Click on the Model for technical data, dimensions, accessories

PS-UWLED 2T - without casing, for horizontal concealed mounting inside ceiling, frontal air inlet and outlet via double GRDF aluminum grille (should be ordered seperately), EC type centrifugal fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
	PS-UWLED 050/4R	1.91/2.64/3.27 kW heating capacity or 0.99/1.56/2.18 kW cooling capacity in 4 row heat exchanger, air flow 199/312/488 m³/h, sound pressure level 24/30/36 dB(A), max. fan power 45 W, dimensions with adjustable length telescopic grille nozzle 650x780-810xH250 mm, weight 22 kg, 2 year WARRANTY
		PS-UWLED 050/4R
1.91/2.64/3.27 kW heating capacity or 0.99/1.56/2.18 kW cooling capacity in 4 row heat exchanger, air flow 199/312/488 m³/h, sound pressure level 24/30/36 dB(A), max. fan power 45 W, dimensions with adjustable length telescopic grille nozzle 650x780-810xH250 mm, weight 22 kg, 2 year WARRANTY
PS-UWLED 080/4R		2.87/3.97/4.91 kW heating capacity or 1.80/2.81/3.47 kW cooling capacity in 4 row heat exchanger, air flow 281/502/785 m³/h, sound pressure level 26/32/38 dB(A), max. fan power 55 W, dimensions with adjustable length telescopic grille nozzle 950x780-810xH250 mm, weight 31 kg, 2 year WARRANTY
	PS-UWLED 080/4R
	2.87/3.97/4.91 kW heating capacity or 1.80/2.81/3.47 kW cooling capacity in 4 row heat exchanger, air flow 281/502/785 m³/h, sound pressure level 26/32/38 dB(A), max. fan power 55 W, dimensions with adjustable length telescopic grille nozzle 950x780-810xH250 mm, weight 31 kg, 2 year WARRANTY
PS-UWLED 4T - without casing, for horizontal concealed mounting inside ceiling, frontal air inlet and outlet via double GRDF aluminum grille (should be ordered seperately), EC type centrifugal fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection
	PS-UWLED 054/4+1R	1.21/1.68/2.08 kW heating capacity in 1 row heat exchanger and 0.99/1.56/2.18 kW cooling capacity in 4 row heat exchanger, air flow 199/312/488 m³/h, sound pressure level 24/30/36 dB(A), max. fan power 45 W, dimensions with adjustable length telescopic grille nozzle 650x780-810xH250 mm, weight 23 kg, 2 year WARRANTY
		PS-UWLED 054/4+1R
1.21/1.68/2.08 kW heating capacity in 1 row heat exchanger and 0.99/1.56/2.18 kW cooling capacity in 4 row heat exchanger, air flow 199/312/488 m³/h, sound pressure level 24/30/36 dB(A), max. fan power 45 W, dimensions with adjustable length telescopic grille nozzle 650x780-810xH250 mm, weight 23 kg, 2 year WARRANTY
PS-UWLED 084/4+1R		1.89/2.62/3.23 kW heating capacity in 1 row heat exchanger and 1.80/2.81/3.47 kW cooling capacity in 4 row heat exchanger, air flow 281/502/785 m³/h, sound pressure level 26/32/38 dB(A), max. fan power 55 W, dimensions with adjustable length telescopic grille nozzle 950x780-810xH250 mm, weight 32 kg, 2 year WARRANTY
	PS-UWLED 084/4+1R
	1.89/2.62/3.23 kW heating capacity in 1 row heat exchanger and 1.80/2.81/3.47 kW cooling capacity in 4 row heat exchanger, air flow 281/502/785 m³/h, sound pressure level 26/32/38 dB(A), max. fan power 55 W, dimensions with adjustable length telescopic grille nozzle 950x780-810xH250 mm, weight 32 kg, 2 year WARRANTY

PS-UWLED concealed fan coil units with double air inlet / outlet grille

Manuals 481 KB

Brochures 816 KB

Catalogue 8.5 MB

Technical data 1.4 MB

Fan coils controllers

Brochures 8.1 MB

Model: PS-UWLED 054/4+1R

GRDF double aluminum grille for PS-UWLED fan coil units
	GRDF.050	Double air inlet and outlet aluminum grille for 050 / 054 size PS-UWLED fan coil units, painted in RAL9010 color, with easily replaceable G3 class air filter, dimensions 250x600 mm
	GRDF.050
	Double air inlet and outlet aluminum grille for 050 / 054 size PS-UWLED fan coil units, painted in RAL9010 color, with easily replaceable G3 class air filter, dimensions 250x600 mm
Control panels for fan coils
	TER.EC.ANA	Suitable for 2-pipe and 4-pipe units with EC fans, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
	TER.EC.ANA
	Suitable for 2-pipe and 4-pipe units with EC fans, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
	TER.EC.DIG	Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional SM sensor, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
	TER.EC.DIG
	Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional SM sensor, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
	TER.EC.BUS	Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via Modbus RTU protocol, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
	TER.EC.BUS
	Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via Modbus RTU protocol, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
Accessories for fan coils controls
	KIT.WI-FI.EC	Electronic board for remote control of PS-FSE, PS-FLE/FLEF/FLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE fan coil units with EC type fan via Wi-Fi connection and app for smart Android / IOS devices, delivered with air temperature probe
	KIT.WI-FI.EC
	Electronic board for remote control of PS-FSE, PS-FLE/FLEF/FLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE fan coil units with EC type fan via Wi-Fi connection and app for smart Android / IOS devices, delivered with air temperature probe
	KIT.BUS	Electronic board for PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DC/DCE/HDC/HDCE fan coil units connection to BMS via Mod-Bus protocol, delivered with air temperature probe
	KIT.BUS
	Electronic board for PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DC/DCE/HDC/HDCE fan coil units connection to BMS via Mod-Bus protocol, delivered with air temperature probe
	DIS.BUS	Information screen to display data from device controlled via KIT.BUS electronic board
	DIS.BUS
	Information screen to display data from device controlled via KIT.BUS electronic board
	TM	Supply hot water detection (35°C) temperature sensor for turning on fan coil unit in heating mode only when hot water is flowing, to be used with units without valve or with 3-way valve, usable with TER.ANA.S / TER.ANA.S.M / TER.DIG.S / TER.EC.DIG / TER.EC.DIG.M / TER.BUS / TER.BUS.M / TER.BAC / TER.BAC.M / TER.EC.BUS / TER.EC.BUS.M / TER.EC.BAC / TEL control panels
	TM
	Supply hot water detection (35°C) temperature sensor for turning on fan coil unit in heating mode only when hot water is flowing, to be used with units without valve or with 3-way valve, usable with TER.ANA.S / TER.ANA.S.M / TER.DIG.S / TER.EC.DIG / TER.EC.DIG.M / TER.BUS / TER.BUS.M / TER.BAC / TER.BAC.M / TER.EC.BUS / TER.EC.BUS.M / TER.EC.BAC / TEL control panels
Water valves
	ATT.230	On/Off actuator for water valve, powered by 230 V
		ATT.230
On/Off actuator for water valve, powered by 230 V
ATT.230.M		On/Off actuator for water valve, powered by 230 V, with limit switch
	ATT.230.M
	On/Off actuator for water valve, powered by 230 V, with limit switch
	ATT.MOD	Modulating by 0-10 V signal actuator for water valve
	ATT.MOD
	Modulating by 0-10 V signal actuator for water valve
	VAL.2V.12.UWLD	2-way water valve for PS-UWLED fan coil units, 1/2" connection
	VAL.2V.12.UWLD
	2-way water valve for PS-UWLED fan coil units, 1/2" connection
	VAL.3V.12.UWLD	3-way water valve for PS-UWLED fan coil units, 1/2" connection
	VAL.3V.12.UWLD
	3-way water valve for PS-UWLED fan coil units, 1/2" connection
	VAL.12.DIN.UWLD	Balancing water valve for PS-UWLED fan coil units, 1/2" connection
	VAL.12.DIN.UWLD
	Balancing water valve for PS-UWLED fan coil units, 1/2" connection
Condensate drain pumps
	POM.CON.20	Condensate drain pump for PS-WLE, PS-FL/FLF/FLH/FLE/FLEF/FLEH, PS-UWLED, PS-DC/DCE/HDC/HDCE fan coil units, flow rate 20 l/h
	POM.CON.20
	Condensate drain pump for PS-WLE, PS-FL/FLF/FLH/FLE/FLEF/FLEH, PS-UWLED, PS-DC/DCE/HDC/HDCE fan coil units, flow rate 20 l/h
Antibacterial UV LED lamps
	LAM.UV.LED.050.UWLD	Antibacterial UV-C LED lamp for 050 / 054 size PS-UWLED fan coil units
	LAM.UV.LED.050.UWLD
	Antibacterial UV-C LED lamp for 050 / 054 size PS-UWLED fan coil units
Painting in non-standard colors
	GRM-V-UWLED	Painting of GRDF air inlet / outlet grille in non-standard RAL color
	GRM-V-UWLED
	Painting of GRDF air inlet / outlet grille in non-standard RAL color
