Fan heater, C5-h class corrosion resistance, water heat exchanger is covered with special pigmented polyurethane coating PoluAl XT Blygold which is characterized by very high resistance to corrosion and chemical compounds, AISI316L inox rotating mounting bracket, two row heat exchanger, 3-35 kW heating capacity, EPP casing, modulating speed EC type axial fan, air flow 950-3000 m³/h, fan power 21-170 W, weight 16.6 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Model: LEO HD L EC EPP
General data
Heating capacity at 70/50°C water and 10°C air temperature
kW
20,5
Air flow range (measured horizontaly at 0.3 m/s speed limit)
m
33
Air flow range (measured verticaly at 0.3 m/s speed limit)
m
6,8
Max. air flow
m³/h
3000
Fan data
Power supply
V/Hz
230/50
Max. power consumption
W
170
Max. current consumption
A
1,3
Fan type
Modulating speed EC
IP / Insulation class
54
Max. acoustic pressure level at a distance of 5 m from the unit, in the 3000 m³ room of medium capabillity of sound absorption
dB(A)
56
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
73
Installation data
Max. operating temperature
°C
60
Max. heating water temperature
°C
120
Max. operating pressure
MPa
1,6
Hydraulic connection
Ø "
¾
Other data
Heat exchanger
Covered with special pigmented polyurethane coating PoluAl XT Blygold which is characterized by very high resistance to corrosion and chemical compounds
Casing
EPP - expanded polypropylene
Dimensions
Width
mm
650
Depth
mm
355
Height
mm
580
Weight
kg
16,6
Weight of unit filled with water
kg
28,6

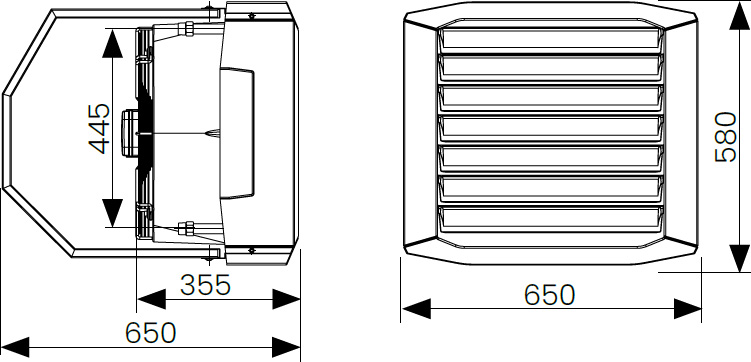

Dimensions

Model: LEO HD L EC EPP
Dimensions

Heating capacity tables

LEO HD L EC EPP airflow on 4 speed = 3000 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

10
15
20
Tw1/Tw2 = 70/50°C
20,5
895
3,5
30,0
18,1
792
2,8
33,0
15,7
688
2,2
35,5

10
15
20
Tw1/Tw2 = 55/45°C
17,4
1517
9,5
27,0
15,0
1311
7,3
30,0
12,7
1103
5,3
32,5

10
15
20
Tw1/Tw2 = 45/35°C
12,2
1063
5,2
22,0
9,8
854
3,5
24,5
7,4
641
2,1
27,5
LEO HD L EC EPP airflow on 3 speed = 2750 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

10
15
20
Tw1/Tw2 = 70/50°C
19,4
849
3,2
31,0
17,2
752
2,6
33,5
14,9
653
2,0
36,0

10
15
20
Tw1/Tw2 = 55/45°C
16,5
1439
8,6
28,0
14,3
1244
6,6
30,5
12,0
1047
4,9
33,0

10
15
20
Tw1/Tw2 = 45/35°C
11,6
1009
4,7
22,5
9,3
810
3,2
25,0
7,0
608
1,9
27,5
LEO HD L EC EPP airflow on 2 speed = 1850 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

10
15
20
Tw1/Tw2 = 70/50°C
15,1
662
2,1
34,0
13,4
586
1,7
36,5
11,6
509
1,3
38,5

10
15
20
Tw1/Tw2 = 55/45°C
12,8
1119
5,5
30,5
11,1
968
4,2
32,5
9,4
815
3,1
35,0

10
15
20
Tw1/Tw2 = 45/35°C
9,0
785
3,0
24,5
7,3
630
2,1
26,5
5,4
470
1,2
28,5
LEO HD L EC EPP airflow on 1 speed = 950 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

10
15
20
Tw1/Tw2 = 70/50°C
9,6
419
0,9
40,0
8,5
371
0,7
41,0
7,3
321
0,6
42,5

10
15
20
Tw1/Tw2 = 55/45°C
8,1
708
2,4
35,5
7,0
612
1,9
36,5
5,9
516
1,4
38,0

10
15
20
Tw1/Tw2 = 45/35°C
5,7
495
1,3
28,0
4,6
395
0,9
29,0
3,3
289
0,5
30,5
  • PT - heating capacity
  • Tp1 - air temperature at the unit inlet
  • Tp2 - air temperature at the unit outlet
  • Tw1 - heating medium temperature at the heat exchanger inlet
  • Tw2 - heating medium temperature at the heat exchanger outlet
  • Qw - heating medium flow rate in heat exchanger
  • Δpw - heating medium pressure drop in heat exchanger

If you want to calculate heating capacity at different parameters you can do this at manufacturer website.
