Click on the Model for technical data, dimensions, accessories

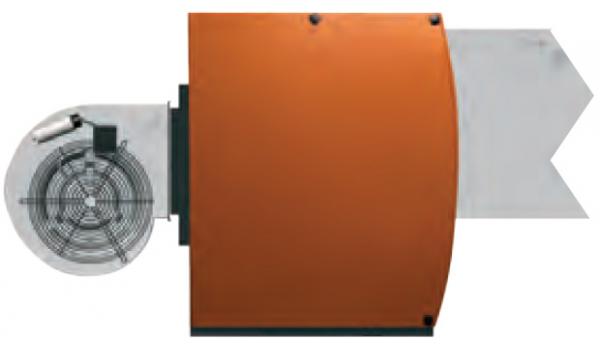

NEXT-R C series - with centrifugal fan for ducts system, pre-mix burner
NEXT R30 C 15.8 / 25.5 kW two steps heat output, air flow 2000 m³/h at 120 Pa, electrical power absorption 0.3 kW, max. gas (G20) consumption 2.96 m³/h, weight 68 kg, 2 year WARRANTY
NEXT R30 C
15.8 / 25.5 kW two steps heat output, air flow 2000 m³/h at 120 Pa, electrical power absorption 0.3 kW, max. gas (G20) consumption 2.96 m³/h, weight 68 kg, 2 year WARRANTY
NEXT R40 C 21.6 / 35.0 kW two steps heat output, air flow 3200 m³/h at 120 Pa, electrical power absorption 0.6 kW, max. gas (G20) consumption 4.05 m³/h, weight 80 kg, 2 year WARRANTY
NEXT R40 C
21.6 / 35.0 kW two steps heat output, air flow 3200 m³/h at 120 Pa, electrical power absorption 0.6 kW, max. gas (G20) consumption 4.05 m³/h, weight 80 kg, 2 year WARRANTY
NEXT R50 C 29.1 / 44.6 kW two steps heat output, air flow 4500 m³/h at 180 Pa, electrical power absorption 0.85 kW, max. gas (G20) consumption 5.18 m³/h, weight 92 kg, 2 year WARRANTY
NEXT R50 C
29.1 / 44.6 kW two steps heat output, air flow 4500 m³/h at 180 Pa, electrical power absorption 0.85 kW, max. gas (G20) consumption 5.18 m³/h, weight 92 kg, 2 year WARRANTY
NEXT R80 C 47.4 / 76.4 kW two steps heat output, air flow 6400 m³/h at 120 Pa, electrical power absorption 1.2 kW, max. gas (G20) consumption 8.89 m³/h, weight 129 kg, 2 year WARRANTY
NEXT R80 C
47.4 / 76.4 kW two steps heat output, air flow 6400 m³/h at 120 Pa, electrical power absorption 1.2 kW, max. gas (G20) consumption 8.89 m³/h, weight 129 kg, 2 year WARRANTY
NEXT-R two steps heat output gas fired heaters
Manuals 7.5 MB
Declarations of conformity 462 KB
Brochures 1.1 MB
Catalogue 1.6 MB
BIM objects 158.9 MB
OTRG005 thermoregulator
Manuals 3.8 MB
OCDS008 control panel
Manuals 2.8 MB
T-box controller
Manuals 22.7 MB
Declarations of conformity 643 KB
MODBUS protocol for connection to BMS 1.9 MB
DRV R control module for NEXT R gas fired heaters
Manuals 854 KB
