Radiant gas heater - INFRA 12 BMAL 28 | Systema

Select the product model:

Radiant gas heater, linear, aluminised steel reflectors, over 91% efficiency, 28 kW thermal capacity, natural gas (G20) consumption 2.96 m³/h, length 12.26 m, weight 124 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
INFRA BMAL - linear, aluminised steel reflectors, over 91% efficiency
INFRA 9 BMAL 18 18 kW thermal capacity, natural gas (G20) consumption 1.9 m³/h, length 9.35 m, weight 98 kg, 2 year WARRANTY
INFRA 9 BMAL 18
18 kW thermal capacity, natural gas (G20) consumption 1.9 m³/h, length 9.35 m, weight 98 kg, 2 year WARRANTY
INFRA 12 BMAL 28 28 kW thermal capacity, natural gas (G20) consumption 2.96 m³/h, length 12.26 m, weight 124 kg, 2 year WARRANTY
INFRA 12 BMAL 28
28 kW thermal capacity, natural gas (G20) consumption 2.96 m³/h, length 12.26 m, weight 124 kg, 2 year WARRANTY
INFRA 15 BMAL 35 35 kW thermal capacity, natural gas (G20) consumption 3.7 m³/h, length 15.15 m, weight 148 kg, 2 year WARRANTY
INFRA 15 BMAL 35
35 kW thermal capacity, natural gas (G20) consumption 3.7 m³/h, length 15.15 m, weight 148 kg, 2 year WARRANTY
INFRA 18 BMAL 45 45 kW thermal capacity, natural gas (G20) consumption 4.76 m³/h, length 18.05 m, weight 176 kg, 2 year WARRANTY
INFRA 18 BMAL 45
45 kW thermal capacity, natural gas (G20) consumption 4.76 m³/h, length 18.05 m, weight 176 kg, 2 year WARRANTY
Model: INFRA 12 BMAL 28
General data
Nominal heating input
kW
28,0
Delivered thermal power
kW
25,7
Standard combustion efficiency
%
91,3
Natural gas (G20) consumption at 15 °C - 1013 mbar
m³/h
2,96
LPG (G30 - BUTAN) consumption at 15 °C - 1013 mbar
kg/h
2,21
LPG (G31 - PROPAN) consumption at 15 °C - 1013 mbar
kg/h
2,18
Fan data
Power consumption
W
100
Turbine diameter
mm Ø
133
Installation data
Power supply
V/Hz
230 V - 50/60 Hz
Max. power consumption
W
120
Gas connection
Ø "
1/2 [F]
Exhaust air flue diameter
mm Ø
100
Air Inlet flue diameter
mm Ø
100
Pressure switch calibration
Pa
60
Dimensions
Length
mm
12260
Width
mm
346
Height
mm
342
Weight
kg
124

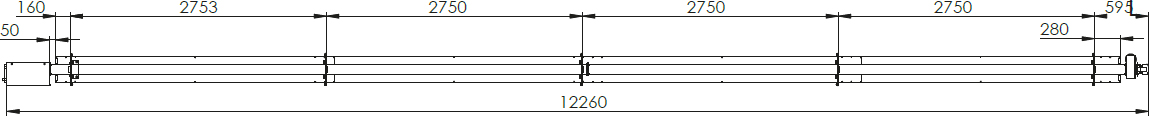

Dimensions

Model: INFRA 12 BMAL 28
Dimensions
INFRA BM gas fired radiant heaters (Linear)
Manuals 5.4 MB
Declarations of conformity 2.9 MB
Brochures 2.3 MB
AutoCAD drawings 5.3 MB
SLIM control panel
Manuals 405 KB
