Roof mounted extraction fan - UVO H 4.2 EC | Flowair

Select the product model:

Roof mounted extraction fan, ABS plastic cover, 4200 m³/h air flow, max. power consumption 330 W, EC type motor, maximal pressure 480 Pa, protection class IP44, one-phase connection, weight 22.1 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
UVO - ABS plastic cover
UVO H 1.4 EC 1400 m³/h air flow, max. power consumption 275 W, EC type motor, maximal pressure 460 Pa, protection class IP44, one-phase connection, weight 12.3 kg, 2 year WARRANTY
UVO H 1.4 EC
1400 m³/h air flow, max. power consumption 275 W, EC type motor, maximal pressure 460 Pa, protection class IP44, one-phase connection, weight 12.3 kg, 2 year WARRANTY
UVO H 4.2 EC 4200 m³/h air flow, max. power consumption 330 W, EC type motor, maximal pressure 480 Pa, protection class IP44, one-phase connection, weight 22.1 kg, 2 year WARRANTY
UVO H 4.2 EC
4200 m³/h air flow, max. power consumption 330 W, EC type motor, maximal pressure 480 Pa, protection class IP44, one-phase connection, weight 22.1 kg, 2 year WARRANTY
UVO H 6.3 EC 6300 m³/h air flow, max. power consumption 1000 W, EC type motor, maximal pressure 530 Pa, protection class IP44, three-phase connection, weight 47.6 kg, 2 year WARRANTY
UVO H 6.3 EC
6300 m³/h air flow, max. power consumption 1000 W, EC type motor, maximal pressure 530 Pa, protection class IP44, three-phase connection, weight 47.6 kg, 2 year WARRANTY
Model: UVO H 4.2 EC
General data
Max. air flow
m³/h
4200
Fan data
Power supply
V/Hz
230/50
Max. power consumption
W
330
Max. current consumption
A
1,5
IP / Insulation class
44
Fan rotation speed
rpm
1430
Static pressure
Pa
480
Max. acoustic pressure level at a distance of 5 m from the unit intake
dB(A)
55,7
Max. acoustic pressure level at a distance of 1 m from the unit outlet
dB(A)
69,4
Max. acoustic pressure level at a distance of 5 m from the unit outlet
dB(A)
55,4
Dimensions
Width
mm
545
Depth
mm
545
Height
mm
590
Weight
kg
22,1

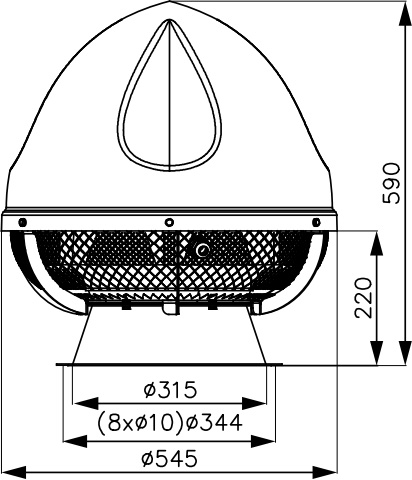

Dimensions

Model: UVO H 4.2 EC
Dimensions
UVO EC exhaust roof fans
Manuals 664 KB
Declarations of conformity 124 KB
Brochures 218 KB
Catalogue 1.9 MB
AutoCAD drawings 6.4 MB
