Ventilation grille - KWSP/P/425x625/a/b/BS/W1 | Saw-pol

Name: Ventilation grille - KWSP/P/425x625/a/b/BS/W1 | Saw-pol
Brand: Saw-pol
Availability: PreOrder

Select the product model:

Model:

Ventilation grille, wall type, for installation in a door or window profile, for air flow between rooms in both directions, rectangular form, horizontally placed ˄ shape fixed grille blades which is blocking the visibility, manufactured from powder coated galvanized steel, RAL9016 color, central mounting in a panel, grille light surface dimensions 425x625 mm

Manufacturer:

Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer

Attention! We do not stock SAW-POL ventilation components, all products from this supplier are custom made and delivered to the customer directly from the manufacturer's warehouse. We are sorry but for this reason we can not accept orders for individual goods, we only accept orders for the high quantity of SAW-POL products.

Models specifications
Technical data
Description
Documentation
Download PDF

Click on the Model for technical data, dimensions, accessories

KWSP/P - wall type, for installation in a door or window profile, for air flow between rooms in both directions, rectangular form, horizontally placed ˄ shape fixed grille blades which is blocking the visibility, manufactured from powder coated galvanized steel, RAL9016 color, central mounting in a panel
	KWSP/P/125x125/a/b/BS/W1	Grille light surface dimensions 125x125 mm
		KWSP/P/125x125/a/b/BS/W1
		Grille light surface dimensions 125x125 mm
	KWSP/P/125x225/a/b/BS/W1	Grille light surface dimensions 125x225 mm
		KWSP/P/125x225/a/b/BS/W1
		Grille light surface dimensions 125x225 mm
	KWSP/P/125x325/a/b/BS/W1	Grille light surface dimensions 125x325 mm
		KWSP/P/125x325/a/b/BS/W1
		Grille light surface dimensions 125x325 mm
	KWSP/P/125x425/a/b/BS/W1	Grille light surface dimensions 125x425 mm
		KWSP/P/125x425/a/b/BS/W1
		Grille light surface dimensions 125x425 mm
	KWSP/P/125x525/a/b/BS/W1	Grille light surface dimensions 125x525 mm
		KWSP/P/125x525/a/b/BS/W1
		Grille light surface dimensions 125x525 mm
	KWSP/P/125x625/a/b/BS/W1	Grille light surface dimensions 125x625 mm
		KWSP/P/125x625/a/b/BS/W1
		Grille light surface dimensions 125x625 mm
	KWSP/P/225x125/a/b/BS/W1	Grille light surface dimensions 225x125 mm, effective area 0.008 m²
		KWSP/P/225x125/a/b/BS/W1
		Grille light surface dimensions 225x125 mm, effective area 0.008 m²
	KWSP/P/225x225/a/b/BS/W1	Grille light surface dimensions 225x225 mm, effective area 0.018 m²
		KWSP/P/225x225/a/b/BS/W1
		Grille light surface dimensions 225x225 mm, effective area 0.018 m²
	KWSP/P/225x325/a/b/BS/W1	Grille light surface dimensions 225x325 mm
		KWSP/P/225x325/a/b/BS/W1
		Grille light surface dimensions 225x325 mm
	KWSP/P/225x425/a/b/BS/W1	Grille light surface dimensions 225x425 mm
		KWSP/P/225x425/a/b/BS/W1
		Grille light surface dimensions 225x425 mm
	KWSP/P/225x525/a/b/BS/W1	Grille light surface dimensions 225x525 mm
		KWSP/P/225x525/a/b/BS/W1
		Grille light surface dimensions 225x525 mm
	KWSP/P/225x625/a/b/BS/W1	Grille light surface dimensions 225x625 mm
		KWSP/P/225x625/a/b/BS/W1
		Grille light surface dimensions 225x625 mm
	KWSP/P/325x125/a/b/BS/W1	Grille light surface dimensions 325x125 mm, effective area 0.012 m²
		KWSP/P/325x125/a/b/BS/W1
		Grille light surface dimensions 325x125 mm, effective area 0.012 m²
	KWSP/P/325x225/a/b/BS/W1	Grille light surface dimensions 325x225 mm, effective area 0.026 m²
		KWSP/P/325x225/a/b/BS/W1
		Grille light surface dimensions 325x225 mm, effective area 0.026 m²
	KWSP/P/325x325/a/b/BS/W1	Grille light surface dimensions 325x325 mm, effective area 0.040 m²
		KWSP/P/325x325/a/b/BS/W1
		Grille light surface dimensions 325x325 mm, effective area 0.040 m²
	KWSP/P/325x425/a/b/BS/W1	Grille light surface dimensions 325x425 mm
		KWSP/P/325x425/a/b/BS/W1
		Grille light surface dimensions 325x425 mm
	KWSP/P/325x525/a/b/BS/W1	Grille light surface dimensions 325x525 mm
		KWSP/P/325x525/a/b/BS/W1
		Grille light surface dimensions 325x525 mm
	KWSP/P/325x625/a/b/BS/W1	Grille light surface dimensions 325x625 mm
		KWSP/P/325x625/a/b/BS/W1
		Grille light surface dimensions 325x625 mm
KWSP/P/425x125/a/b/BS/W1	Grille light surface dimensions 425x125 mm, effective area 0.015 m²
	KWSP/P/425x125/a/b/BS/W1
	Grille light surface dimensions 425x125 mm, effective area 0.015 m²
KWSP/P/425x225/a/b/BS/W1	Grille light surface dimensions 425x225 mm, effective area 0.034 m²
	KWSP/P/425x225/a/b/BS/W1
	Grille light surface dimensions 425x225 mm, effective area 0.034 m²
KWSP/P/425x325/a/b/BS/W1	Grille light surface dimensions 425x325 mm, effective area 0.052 m²
	KWSP/P/425x325/a/b/BS/W1
	Grille light surface dimensions 425x325 mm, effective area 0.052 m²
KWSP/P/425x425/a/b/BS/W1	Grille light surface dimensions 425x425 mm, effective area 0.069 m²
	KWSP/P/425x425/a/b/BS/W1
	Grille light surface dimensions 425x425 mm, effective area 0.069 m²
KWSP/P/425x525/a/b/BS/W1	Grille light surface dimensions 425x525 mm
	KWSP/P/425x525/a/b/BS/W1
	Grille light surface dimensions 425x525 mm
KWSP/P/425x625/a/b/BS/W1	Grille light surface dimensions 425x625 mm
	KWSP/P/425x625/a/b/BS/W1
	Grille light surface dimensions 425x625 mm
KWSP/P/525x125/a/b/BS/W1	Grille light surface dimensions 525x125 mm, effective area 0.018 m²
	KWSP/P/525x125/a/b/BS/W1
	Grille light surface dimensions 525x125 mm, effective area 0.018 m²
KWSP/P/525x225/a/b/BS/W1	Grille light surface dimensions 525x225 mm, effective area 0.042 m²
	KWSP/P/525x225/a/b/BS/W1
	Grille light surface dimensions 525x225 mm, effective area 0.042 m²
KWSP/P/525x325/a/b/BS/W1	Grille light surface dimensions 525x325 mm, effective area 0.065 m²
	KWSP/P/525x325/a/b/BS/W1
	Grille light surface dimensions 525x325 mm, effective area 0.065 m²
KWSP/P/525x425/a/b/BS/W1	Grille light surface dimensions 525x425 mm, effective area 0.085 m²
	KWSP/P/525x425/a/b/BS/W1
	Grille light surface dimensions 525x425 mm, effective area 0.085 m²
KWSP/P/525x525/a/b/BS/W1	Grille light surface dimensions 525x525 mm, effective area 0.106 m²
	KWSP/P/525x525/a/b/BS/W1
	Grille light surface dimensions 525x525 mm, effective area 0.106 m²
KWSP/P/525x625/a/b/BS/W1	Grille light surface dimensions 525x625 mm
	KWSP/P/525x625/a/b/BS/W1
	Grille light surface dimensions 525x625 mm
KWSP/P/625x125/a/b/BS/W1	Grille light surface dimensions 625x125 mm, effective area 0.022 m²
	KWSP/P/625x125/a/b/BS/W1
	Grille light surface dimensions 625x125 mm, effective area 0.022 m²
KWSP/P/625x225/a/b/BS/W1	Grille light surface dimensions 625x225 mm, effective area 0.051 m²
	KWSP/P/625x225/a/b/BS/W1
	Grille light surface dimensions 625x225 mm, effective area 0.051 m²
KWSP/P/625x325/a/b/BS/W1	Grille light surface dimensions 625x325 mm, effective area 0.077 m²
	KWSP/P/625x325/a/b/BS/W1
	Grille light surface dimensions 625x325 mm, effective area 0.077 m²
KWSP/P/625x425/a/b/BS/W1	Grille light surface dimensions 625x425 mm, effective area 0.102 m²
	KWSP/P/625x425/a/b/BS/W1
	Grille light surface dimensions 625x425 mm, effective area 0.102 m²
KWSP/P/625x525/a/b/BS/W1	Grille light surface dimensions 625x525 mm, effective area 0.127 m²
	KWSP/P/625x525/a/b/BS/W1
	Grille light surface dimensions 625x525 mm, effective area 0.127 m²
KWSP/P/625x625/a/b/BS/W1	Grille light surface dimensions 625x625 mm, effective area 0.157 m²
	KWSP/P/625x625/a/b/BS/W1
	Grille light surface dimensions 625x625 mm, effective area 0.157 m²
KWSP/P/825x125/a/b/BS/W1	Grille light surface dimensions 825x125 mm, effective area 0.029 m²
	KWSP/P/825x125/a/b/BS/W1
	Grille light surface dimensions 825x125 mm, effective area 0.029 m²
KWSP/P/825x225/a/b/BS/W1	Grille light surface dimensions 825x225 mm, effective area 0.066 m²
	KWSP/P/825x225/a/b/BS/W1
	Grille light surface dimensions 825x225 mm, effective area 0.066 m²
KWSP/P/825x325/a/b/BS/W1	Grille light surface dimensions 825x325 mm, effective area 0.103 m²
	KWSP/P/825x325/a/b/BS/W1
	Grille light surface dimensions 825x325 mm, effective area 0.103 m²
KWSP/P/825x425/a/b/BS/W1	Grille light surface dimensions 825x425 mm, effective area 0.135 m²
	KWSP/P/825x425/a/b/BS/W1
	Grille light surface dimensions 825x425 mm, effective area 0.135 m²
KWSP/P/825x525/a/b/BS/W1	Grille light surface dimensions 825x525 mm, effective area 0.168 m²
	KWSP/P/825x525/a/b/BS/W1
	Grille light surface dimensions 825x525 mm, effective area 0.168 m²
KWSP/P/825x625/a/b/BS/W1	Grille light surface dimensions 825x625 mm, effective area 0.208 m²
	KWSP/P/825x625/a/b/BS/W1
	Grille light surface dimensions 825x625 mm, effective area 0.208 m²
KWSP/P/1025x125/a/b/BS/W1	Grille light surface dimensions 1025x125 mm, effective area 0.035 m²
	KWSP/P/1025x125/a/b/BS/W1
	Grille light surface dimensions 1025x125 mm, effective area 0.035 m²
KWSP/P/1025x225/a/b/BS/W1	Grille light surface dimensions 1025x225 mm, effective area 0.082 m²
	KWSP/P/1025x225/a/b/BS/W1
	Grille light surface dimensions 1025x225 mm, effective area 0.082 m²
KWSP/P/1025x325/a/b/BS/W1	Grille light surface dimensions 1025x325 mm, effective area 0.128 m²
	KWSP/P/1025x325/a/b/BS/W1
	Grille light surface dimensions 1025x325 mm, effective area 0.128 m²
KWSP/P/1025x425/a/b/BS/W1	Grille light surface dimensions 1025x425 mm, effective area 0.168 m²
	KWSP/P/1025x425/a/b/BS/W1
	Grille light surface dimensions 1025x425 mm, effective area 0.168 m²
KWSP/P/1025x525/a/b/BS/W1	Grille light surface dimensions 1025x525 mm, effective area 0.210 m²
	KWSP/P/1025x525/a/b/BS/W1
	Grille light surface dimensions 1025x525 mm, effective area 0.210 m²
KWSP/P/1025x625/a/b/BS/W1	Grille light surface dimensions 1025x625 mm, effective area 0.262 m²
	KWSP/P/1025x625/a/b/BS/W1
	Grille light surface dimensions 1025x625 mm, effective area 0.262 m²
KWSP/P/1225x125/a/b/BS/W1	Grille light surface dimensions 1225x125 mm, effective area 0.041 m²
	KWSP/P/1225x125/a/b/BS/W1
	Grille light surface dimensions 1225x125 mm, effective area 0.041 m²
KWSP/P/1225x225/a/b/BS/W1	Grille light surface dimensions 1225x225 mm, effective area 0.099 m²
	KWSP/P/1225x225/a/b/BS/W1
	Grille light surface dimensions 1225x225 mm, effective area 0.099 m²
KWSP/P/1225x325/a/b/BS/W1	Grille light surface dimensions 1225x325 mm, effective area 0.153 m²
	KWSP/P/1225x325/a/b/BS/W1
	Grille light surface dimensions 1225x325 mm, effective area 0.153 m²
KWSP/P/1225x425/a/b/BS/W1	Grille light surface dimensions 1225x425 mm, effective area 0.202 m²
	KWSP/P/1225x425/a/b/BS/W1
	Grille light surface dimensions 1225x425 mm, effective area 0.202 m²
KWSP/P/1225x525/a/b/BS/W1	Grille light surface dimensions 1225x525 mm, effective area 0.250 m²
	KWSP/P/1225x525/a/b/BS/W1
	Grille light surface dimensions 1225x525 mm, effective area 0.250 m²
KWSP/P/1225x625/a/b/BS/W1	Grille light surface dimensions 1225x625 mm, effective area 0.310 m²
	KWSP/P/1225x625/a/b/BS/W1
	Grille light surface dimensions 1225x625 mm, effective area 0.310 m²

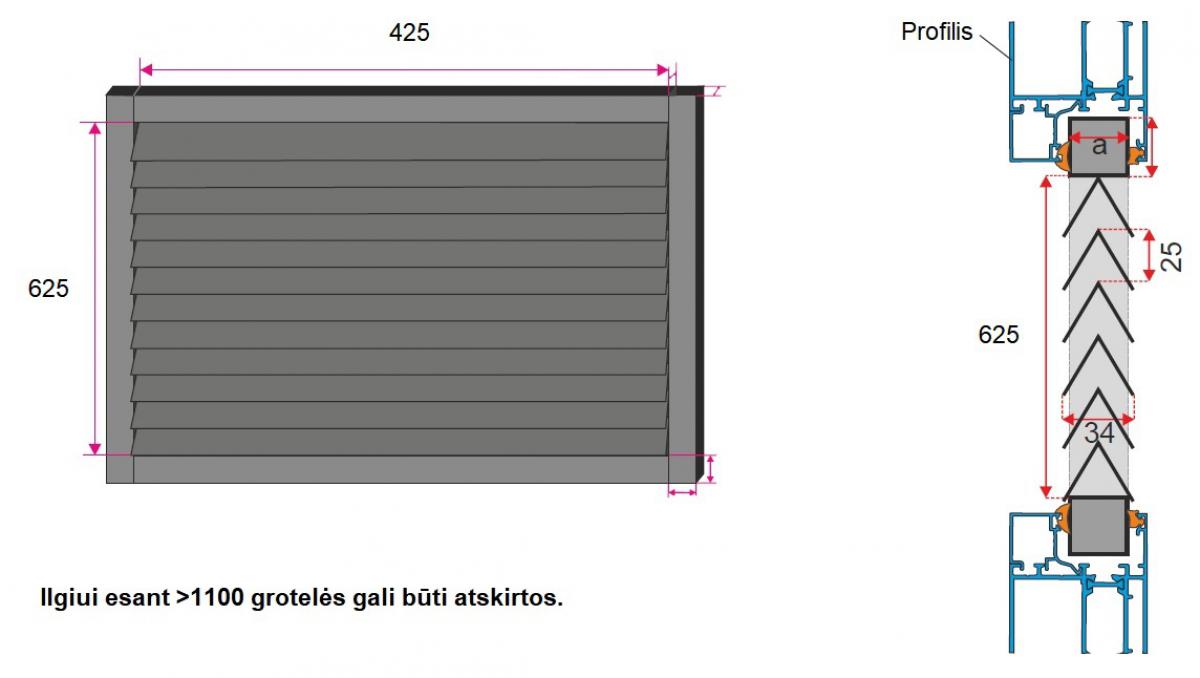

Dimensions

Model: KWSP/P/425x625/a/b/BS/W1

Ventilation grilles double sides, have the function of equalizing-flow. They are part of the ventilation system to ensure flow between rooms and by building partitions. They are suitable for installation in door or window profile. Grilles have still blades in the shape of an inverted V, blocking the visibility. Due to its construction grille flow are used in areas exposed to mechanical damage (boiler rooms, garages, gyms, as well as external air intakes louvres).

Panel grille has Hygienic Certificate HK/K/0522/01/2016

Material and workmanship

Grille is made from galvanized sheet steel powder coated to any RAL color (standard RAL 9016). On request it is possible to make a grille from aluminum or stainless steel (1.4301 or 1.4404).

KWSP/P panel grille

Declarations of conformity 859 KB

Catalogue 93 KB

Hygienic certificate 1.1 MB
