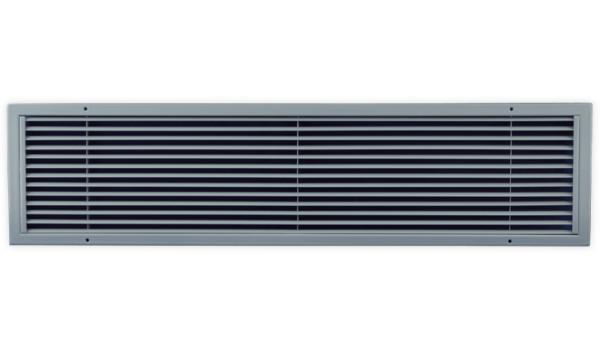

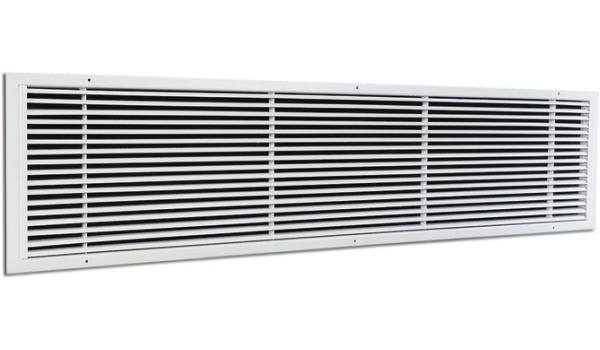

Ventilation grille, wall type, for air supply to the room, recommended for use with fan coils, rectangular form, horizontally placed fixed grille blades which are bent at an angle of 45°, small depth of grille - only 15 mm, manufactured from powder coated galvanized steel, RAL9016 color, visible assembly through screws in holes in grille front frame, installation hole dimensions 800x350 mm, effective area 0.233 m²
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Attention! We do not stock SAW-POL ventilation components, all products from this supplier are custom made and delivered to the customer directly from the manufacturer's warehouse. We are sorry but for this reason we can not accept orders for individual goods, we only accept orders for the high quantity of SAW-POL products.
Click on the Model for technical data, dimensions, accessories
KFC - wall type, for air supply to the room, recommended for use with fan coils, rectangular form, horizontally placed fixed grille blades which are bent at an angle of 45°, small depth of grille - only 15 mm, manufactured from powder coated galvanized steel, RAL9016 color, visible assembly through screws in holes in grille front frame
KFC/300x50 Installation hole dimensions 300x50 mm, effective area 0.011 m²
KFC/300x50
Installation hole dimensions 300x50 mm, effective area 0.011 m²
KFC/300x100 Installation hole dimensions 300x100 mm, effective area 0.024 m²
KFC/300x100
Installation hole dimensions 300x100 mm, effective area 0.024 m²
KFC/300x150 Installation hole dimensions 300x150 mm, effective area 0.036 m²
KFC/300x150
Installation hole dimensions 300x150 mm, effective area 0.036 m²
KFC/300x200 Installation hole dimensions 300x200 mm, effective area 0.049 m²
KFC/300x200
Installation hole dimensions 300x200 mm, effective area 0.049 m²
KFC/300x250 Installation hole dimensions 300x250 mm, effective area 0.061 m²
KFC/300x250
Installation hole dimensions 300x250 mm, effective area 0.061 m²
KFC/300x300 Installation hole dimensions 300x300 mm, effective area 0.074 m²
KFC/300x300
Installation hole dimensions 300x300 mm, effective area 0.074 m²
KFC/300x350 Installation hole dimensions 300x350 mm, effective area 0.086 m²
KFC/300x350
Installation hole dimensions 300x350 mm, effective area 0.086 m²
KFC/400x50 Installation hole dimensions 400x50 mm, effective area 0.015 m²
KFC/400x50
Installation hole dimensions 400x50 mm, effective area 0.015 m²
KFC/400x100 Installation hole dimensions 400x100 mm, effective area 0.032 m²
KFC/400x100
Installation hole dimensions 400x100 mm, effective area 0.032 m²
KFC/400x150 Installation hole dimensions 400x150 mm, effective area 0.048 m²
KFC/400x150
Installation hole dimensions 400x150 mm, effective area 0.048 m²
KFC/400x200 Installation hole dimensions 400x200 mm, effective area 0.065 m²
KFC/400x200
Installation hole dimensions 400x200 mm, effective area 0.065 m²
KFC/400x250 Installation hole dimensions 400x250 mm, effective area 0.082 m²
KFC/400x250
Installation hole dimensions 400x250 mm, effective area 0.082 m²
KFC/400x300 Installation hole dimensions 400x300 mm, effective area 0.099 m²
KFC/400x300
Installation hole dimensions 400x300 mm, effective area 0.099 m²
KFC/400x350 Installation hole dimensions 400x350 mm, effective area 0.116 m²
KFC/400x350
Installation hole dimensions 400x350 mm, effective area 0.116 m²
KFC/500x50 Installation hole dimensions 500x50 mm, effective area 0.018 m²
KFC/500x50
Installation hole dimensions 500x50 mm, effective area 0.018 m²
KFC/500x100 Installation hole dimensions 500x100 mm, effective area 0.040 m²
KFC/500x100
Installation hole dimensions 500x100 mm, effective area 0.040 m²
KFC/500x150 Installation hole dimensions 500x150 mm, effective area 0.061 m²
KFC/500x150
Installation hole dimensions 500x150 mm, effective area 0.061 m²
KFC/500x200 Installation hole dimensions 500x200 mm, effective area 0.082 m²
KFC/500x200
Installation hole dimensions 500x200 mm, effective area 0.082 m²
KFC/500x250 Installation hole dimensions 500x250 mm, effective area 0.103 m²
KFC/500x250
Installation hole dimensions 500x250 mm, effective area 0.103 m²
KFC/500x300 Installation hole dimensions 500x300 mm, effective area 0.124 m²
KFC/500x300
Installation hole dimensions 500x300 mm, effective area 0.124 m²
KFC/500x350 Installation hole dimensions 500x350 mm, effective area 0.145 m²
KFC/500x350
Installation hole dimensions 500x350 mm, effective area 0.145 m²
KFC/600x50 Installation hole dimensions 600x50 mm, effective area 0.022 m²
KFC/600x50
Installation hole dimensions 600x50 mm, effective area 0.022 m²
KFC/600x100 Installation hole dimensions 600x100 mm, effective area 0.048 m²
KFC/600x100
Installation hole dimensions 600x100 mm, effective area 0.048 m²
KFC/600x150 Installation hole dimensions 600x150 mm, effective area 0.073 m²
KFC/600x150
Installation hole dimensions 600x150 mm, effective area 0.073 m²
KFC/600x200 Installation hole dimensions 600x200 mm, effective area 0.099 m²
KFC/600x200
Installation hole dimensions 600x200 mm, effective area 0.099 m²
KFC/600x250 Installation hole dimensions 600x250 mm, effective area 0.124 m²
KFC/600x250
Installation hole dimensions 600x250 mm, effective area 0.124 m²
KFC/600x300 Installation hole dimensions 600x300 mm, effective area 0.149 m²
KFC/600x300
Installation hole dimensions 600x300 mm, effective area 0.149 m²
KFC/600x350 Installation hole dimensions 600x350 mm, effective area 0.174 m²
KFC/600x350
Installation hole dimensions 600x350 mm, effective area 0.174 m²
KFC/700x50 Installation hole dimensions 700x50 mm
KFC/700x50
Installation hole dimensions 700x50 mm
KFC/700x100 Installation hole dimensions 700x100 mm
KFC/700x100
Installation hole dimensions 700x100 mm
KFC/700x150 Installation hole dimensions 700x150 mm
KFC/700x150
Installation hole dimensions 700x150 mm
KFC/700x200 Installation hole dimensions 700x200 mm
KFC/700x200
Installation hole dimensions 700x200 mm
KFC/700x250 Installation hole dimensions 700x250 mm
KFC/700x250
Installation hole dimensions 700x250 mm
KFC/700x300 Installation hole dimensions 700x300 mm
KFC/700x300
Installation hole dimensions 700x300 mm
KFC/700x350 Installation hole dimensions 700x350 mm
KFC/700x350
Installation hole dimensions 700x350 mm
KFC/800x50 Installation hole dimensions 800x50 mm, effective area 0.030 m²
KFC/800x50
Installation hole dimensions 800x50 mm, effective area 0.030 m²
KFC/800x100 Installation hole dimensions 800x100 mm, effective area 0.064 m²
KFC/800x100
Installation hole dimensions 800x100 mm, effective area 0.064 m²
KFC/800x150 Installation hole dimensions 800x150 mm, effective area 0.098 m²
KFC/800x150
Installation hole dimensions 800x150 mm, effective area 0.098 m²
KFC/800x200 Installation hole dimensions 800x200 mm, effective area 0.132 m²
KFC/800x200
Installation hole dimensions 800x200 mm, effective area 0.132 m²
KFC/800x250 Installation hole dimensions 800x250 mm, effective area 0.165 m²
KFC/800x250
Installation hole dimensions 800x250 mm, effective area 0.165 m²
KFC/800x300 Installation hole dimensions 800x300 mm, effective area 0.199 m²
KFC/800x300
Installation hole dimensions 800x300 mm, effective area 0.199 m²
KFC/800x350 Installation hole dimensions 800x350 mm, effective area 0.233 m²
KFC/800x350
Installation hole dimensions 800x350 mm, effective area 0.233 m²
KFC/1000x50 Installation hole dimensions 1000x50 mm, effective area 0.038 m²
KFC/1000x50
Installation hole dimensions 1000x50 mm, effective area 0.038 m²
KFC/1000x100 Installation hole dimensions 1000x100 mm, effective area 0.080 m²
KFC/1000x100
Installation hole dimensions 1000x100 mm, effective area 0.080 m²
KFC/1000x150 Installation hole dimensions 1000x150 mm, effective area 0.123 m²
KFC/1000x150
Installation hole dimensions 1000x150 mm, effective area 0.123 m²
KFC/1000x200 Installation hole dimensions 1000x200 mm, effective area 0.165 m²
KFC/1000x200
Installation hole dimensions 1000x200 mm, effective area 0.165 m²
KFC/1000x250 Installation hole dimensions 1000x250 mm, effective area 0.207 m²
KFC/1000x250
Installation hole dimensions 1000x250 mm, effective area 0.207 m²
KFC/1000x300 Installation hole dimensions 1000x300 mm, effective area 0.249 m²
KFC/1000x300
Installation hole dimensions 1000x300 mm, effective area 0.249 m²
KFC/1000x350 Installation hole dimensions 1000x350 mm, effective area 0.292 m²
KFC/1000x350
Installation hole dimensions 1000x350 mm, effective area 0.292 m²
KFC/1200x50 Installation hole dimensions 1200x50 mm, effective area 0.046 m²
KFC/1200x50
Installation hole dimensions 1200x50 mm, effective area 0.046 m²
KFC/1200x100 Installation hole dimensions 1200x100 mm, effective area 0.096 m²
KFC/1200x100
Installation hole dimensions 1200x100 mm, effective area 0.096 m²
KFC/1200x150 Installation hole dimensions 1200x150 mm, effective area 0.147 m²
KFC/1200x150
Installation hole dimensions 1200x150 mm, effective area 0.147 m²
KFC/1200x200 Installation hole dimensions 1200x200 mm, effective area 0.198 m²
KFC/1200x200
Installation hole dimensions 1200x200 mm, effective area 0.198 m²
KFC/1200x250 Installation hole dimensions 1200x250 mm, effective area 0.249 m²
KFC/1200x250
Installation hole dimensions 1200x250 mm, effective area 0.249 m²
KFC/1200x300 Installation hole dimensions 1200x300 mm, effective area 0.299 m²
KFC/1200x300
Installation hole dimensions 1200x300 mm, effective area 0.299 m²
KFC/1200x350 Installation hole dimensions 1200x350 mm, effective area 0.350 m²
KFC/1200x350
Installation hole dimensions 1200x350 mm, effective area 0.350 m²
KFC/1400x50 Installation hole dimensions 1400x50 mm, effective area 0.053 m²
KFC/1400x50
Installation hole dimensions 1400x50 mm, effective area 0.053 m²
KFC/1400x100 Installation hole dimensions 1400x100 mm, effective area 0.113 m²
KFC/1400x100
Installation hole dimensions 1400x100 mm, effective area 0.113 m²
KFC/1400x150 Installation hole dimensions 1400x150 mm, effective area 0.172 m²
KFC/1400x150
Installation hole dimensions 1400x150 mm, effective area 0.172 m²
KFC/1400x200 Installation hole dimensions 1400x200 mm, effective area 0.231 m²
KFC/1400x200
Installation hole dimensions 1400x200 mm, effective area 0.231 m²
KFC/1400x250 Installation hole dimensions 1400x250 mm, effective area 0.290 m²
KFC/1400x250
Installation hole dimensions 1400x250 mm, effective area 0.290 m²
KFC/1400x300 Installation hole dimensions 1400x300 mm, effective area 0.349 m²
KFC/1400x300
Installation hole dimensions 1400x300 mm, effective area 0.349 m²
KFC/1400x350 Installation hole dimensions 1400x350 mm, effective area 0.409 m²
KFC/1400x350
Installation hole dimensions 1400x350 mm, effective area 0.409 m²
Model: KFC/800x350
General data
Effective area
m²
0.233

Dimensions

Model: KFC/800x350
Dimensions

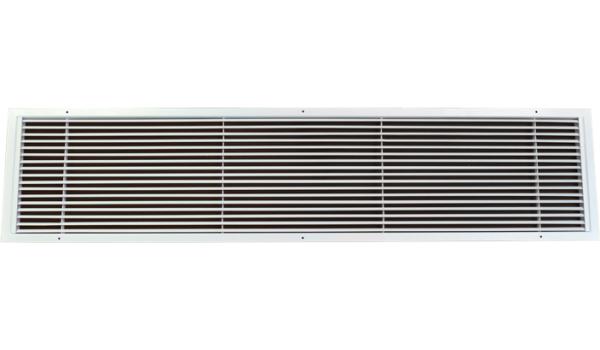

Ventilation grilles KFC have the function of supply and equalizing- air flow. Grilles have still not moving blades bent at an angle 45°. The grille frame has a holes for fixing the grille directly to the mounting surface. Grille KFC sespecially recommended for use with fan coils. The bent fin allows to get supply air one- or two-way (example below). Small depth of grille (only 15mm) allows installation in a plate GK. Ideal also as a door grille.

Grille has Hygienic Certificate HK/K/0522/01/2016

Material and workmanship

Material:
- galvanized steel - standard,
- aluminum,
- powder coated (standard RAL 9016),
- any color from RAL palette.

KFC air-flow grille for fan coils
