Select the product model:

Ventilation grille, wall type, rectangular form, horizontally placed and manually adjustable each grille blade, manufactured from powder coated steel, RAL9016 color, visible assembly through screws in holes in grille front frame, external dimensions 265x165 mm, opening dimensions 215x115 mm, installation hole dimensions 225x125 mm
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Attention! We do not stock SAW-POL ventilation components, all products from this supplier are custom made and delivered to the customer directly from the manufacturer's warehouse. We are sorry but for this reason we can not accept orders for individual goods, we only accept orders for the high quantity of SAW-POL products.
Click on the Model for technical data, dimensions, accessories
ST-W - wall type, rectangular form, horizontally placed and manually adjustable each grille blade, manufactured from powder coated steel, RAL9016 color, visible assembly through screws in holes in grille front frame
ST-W/125x75/W1 External dimensions 165x115 mm, opening dimensions 115x65 mm, installation hole dimensions 125x75 mm
ST-W/125x75/W1
External dimensions 165x115 mm, opening dimensions 115x65 mm, installation hole dimensions 125x75 mm
ST-W/125x125/W1 External dimensions 165x165 mm, opening dimensions 115x115 mm, installation hole dimensions 125x125 mm
ST-W/125x125/W1
External dimensions 165x165 mm, opening dimensions 115x115 mm, installation hole dimensions 125x125 mm
ST-W/225x75/W1 External dimensions 265x115 mm, opening dimensions 215x65 mm, installation hole dimensions 225x75 mm
ST-W/225x75/W1
External dimensions 265x115 mm, opening dimensions 215x65 mm, installation hole dimensions 225x75 mm
ST-W/225x125/W1 External dimensions 265x165 mm, opening dimensions 215x115 mm, installation hole dimensions 225x125 mm
ST-W/225x125/W1
External dimensions 265x165 mm, opening dimensions 215x115 mm, installation hole dimensions 225x125 mm
ST-W/225x225/W1 External dimensions 265x265 mm, opening dimensions 215x215 mm, installation hole dimensions 225x225 mm
ST-W/225x225/W1
External dimensions 265x265 mm, opening dimensions 215x215 mm, installation hole dimensions 225x225 mm
ST-W/325x75/W1 External dimensions 365x115 mm, opening dimensions 315x65 mm, installation hole dimensions 325x75 mm
ST-W/325x75/W1
External dimensions 365x115 mm, opening dimensions 315x65 mm, installation hole dimensions 325x75 mm
ST-W/325x125/W1 External dimensions 365x165 mm, opening dimensions 315x115 mm, installation hole dimensions 325x125 mm
ST-W/325x125/W1
External dimensions 365x165 mm, opening dimensions 315x115 mm, installation hole dimensions 325x125 mm
ST-W/325x225/W1 External dimensions 365x265 mm, opening dimensions 315x215 mm, installation hole dimensions 325x225 mm
ST-W/325x225/W1
External dimensions 365x265 mm, opening dimensions 315x215 mm, installation hole dimensions 325x225 mm
ST-W/325x325/W1 External dimensions 365x365 mm, opening dimensions 315x315 mm, installation hole dimensions 325x325 mm
ST-W/325x325/W1
External dimensions 365x365 mm, opening dimensions 315x315 mm, installation hole dimensions 325x325 mm
ST-W/425x75/W1 External dimensions 465x115 mm, opening dimensions 415x65 mm, installation hole dimensions 425x75 mm
ST-W/425x75/W1
External dimensions 465x115 mm, opening dimensions 415x65 mm, installation hole dimensions 425x75 mm
ST-W/425x125/W1 External dimensions 465x165 mm, opening dimensions 415x115 mm, installation hole dimensions 425x125 mm
ST-W/425x125/W1
External dimensions 465x165 mm, opening dimensions 415x115 mm, installation hole dimensions 425x125 mm
ST-W/425x225/W1 External dimensions 465x265 mm, opening dimensions 415x215 mm, installation hole dimensions 425x225 mm
ST-W/425x225/W1
External dimensions 465x265 mm, opening dimensions 415x215 mm, installation hole dimensions 425x225 mm
ST-W/425x325/W1 External dimensions 465x365 mm, opening dimensions 415x315 mm, installation hole dimensions 425x325 mm
ST-W/425x325/W1
External dimensions 465x365 mm, opening dimensions 415x315 mm, installation hole dimensions 425x325 mm
ST-W/425x425/W1 External dimensions 465x465 mm, opening dimensions 415x415 mm, installation hole dimensions 425x425 mm
ST-W/425x425/W1
External dimensions 465x465 mm, opening dimensions 415x415 mm, installation hole dimensions 425x425 mm
ST-W/525x75/W1 External dimensions 565x115 mm, opening dimensions 515x65 mm, installation hole dimensions 525x75 mm
ST-W/525x75/W1
External dimensions 565x115 mm, opening dimensions 515x65 mm, installation hole dimensions 525x75 mm
ST-W/525x125/W1 External dimensions 565x165 mm, opening dimensions 515x115 mm, installation hole dimensions 525x125 mm
ST-W/525x125/W1
External dimensions 565x165 mm, opening dimensions 515x115 mm, installation hole dimensions 525x125 mm
ST-W/525x225/W1 External dimensions 565x265 mm, opening dimensions 515x215 mm, installation hole dimensions 525x225 mm
ST-W/525x225/W1
External dimensions 565x265 mm, opening dimensions 515x215 mm, installation hole dimensions 525x225 mm
ST-W/525x325/W1 External dimensions 565x365 mm, opening dimensions 515x315 mm, installation hole dimensions 525x325 mm
ST-W/525x325/W1
External dimensions 565x365 mm, opening dimensions 515x315 mm, installation hole dimensions 525x325 mm
ST-W/525x425/W1 External dimensions 565x465 mm, opening dimensions 515x415 mm, installation hole dimensions 525x425 mm
ST-W/525x425/W1
External dimensions 565x465 mm, opening dimensions 515x415 mm, installation hole dimensions 525x425 mm
ST-W/525x525/W1 External dimensions 565x565 mm, opening dimensions 515x515 mm, installation hole dimensions 525x525 mm
ST-W/525x525/W1
External dimensions 565x565 mm, opening dimensions 515x515 mm, installation hole dimensions 525x525 mm
ST-W/625x75/W1 External dimensions 665x115 mm, opening dimensions 615x65 mm, installation hole dimensions 625x75 mm
ST-W/625x75/W1
External dimensions 665x115 mm, opening dimensions 615x65 mm, installation hole dimensions 625x75 mm
ST-W/625x125/W1 External dimensions 665x165 mm, opening dimensions 615x115 mm, installation hole dimensions 625x125 mm
ST-W/625x125/W1
External dimensions 665x165 mm, opening dimensions 615x115 mm, installation hole dimensions 625x125 mm
ST-W/625x225/W1 External dimensions 665x265 mm, opening dimensions 615x215 mm, installation hole dimensions 625x225 mm
ST-W/625x225/W1
External dimensions 665x265 mm, opening dimensions 615x215 mm, installation hole dimensions 625x225 mm
ST-W/625x325/W1 External dimensions 665x365 mm, opening dimensions 615x315 mm, installation hole dimensions 625x325 mm
ST-W/625x325/W1
External dimensions 665x365 mm, opening dimensions 615x315 mm, installation hole dimensions 625x325 mm
ST-W/625x425/W1 External dimensions 665x465 mm, opening dimensions 615x415 mm, installation hole dimensions 625x425 mm
ST-W/625x425/W1
External dimensions 665x465 mm, opening dimensions 615x415 mm, installation hole dimensions 625x425 mm
ST-W/625x525/W1 External dimensions 665x565 mm, opening dimensions 615x515 mm, installation hole dimensions 625x525 mm
ST-W/625x525/W1
External dimensions 665x565 mm, opening dimensions 615x515 mm, installation hole dimensions 625x525 mm
ST-W/625x625/W1 External dimensions 665x665 mm, opening dimensions 615x615 mm, installation hole dimensions 625x625 mm
ST-W/625x625/W1
External dimensions 665x665 mm, opening dimensions 615x615 mm, installation hole dimensions 625x625 mm
ST-W/825x75/W1 External dimensions 865x115 mm, opening dimensions 815x65 mm, installation hole dimensions 825x75 mm
ST-W/825x75/W1
External dimensions 865x115 mm, opening dimensions 815x65 mm, installation hole dimensions 825x75 mm
ST-W/825x125/W1 External dimensions 865x165 mm, opening dimensions 815x115 mm, installation hole dimensions 825x125 mm
ST-W/825x125/W1
External dimensions 865x165 mm, opening dimensions 815x115 mm, installation hole dimensions 825x125 mm
ST-W/825x225/W1 External dimensions 865x265 mm, opening dimensions 815x215 mm, installation hole dimensions 825x225 mm
ST-W/825x225/W1
External dimensions 865x265 mm, opening dimensions 815x215 mm, installation hole dimensions 825x225 mm
ST-W/825x325/W1 External dimensions 865x365 mm, opening dimensions 815x315 mm, installation hole dimensions 825x325 mm
ST-W/825x325/W1
External dimensions 865x365 mm, opening dimensions 815x315 mm, installation hole dimensions 825x325 mm
ST-W/825x425/W1 External dimensions 865x465 mm, opening dimensions 815x415 mm, installation hole dimensions 825x425 mm
ST-W/825x425/W1
External dimensions 865x465 mm, opening dimensions 815x415 mm, installation hole dimensions 825x425 mm
ST-W/825x525/W1 External dimensions 865x565 mm, opening dimensions 815x515 mm, installation hole dimensions 825x525 mm
ST-W/825x525/W1
External dimensions 865x565 mm, opening dimensions 815x515 mm, installation hole dimensions 825x525 mm
ST-W/825x625/W1 External dimensions 865x665 mm, opening dimensions 815x615 mm, installation hole dimensions 825x625 mm
ST-W/825x625/W1
External dimensions 865x665 mm, opening dimensions 815x615 mm, installation hole dimensions 825x625 mm
ST-W/1025x75/W1 External dimensions 1115x165 mm, opening dimensions 1015x65 mm, installation hole dimensions 1025x75 mm
ST-W/1025x75/W1
External dimensions 1115x165 mm, opening dimensions 1015x65 mm, installation hole dimensions 1025x75 mm
ST-W/1025x125/W1 External dimensions 1115x215 mm, opening dimensions 1015x115 mm, installation hole dimensions 1025x125 mm
ST-W/1025x125/W1
External dimensions 1115x215 mm, opening dimensions 1015x115 mm, installation hole dimensions 1025x125 mm
ST-W/1025x225/W1 External dimensions 1115x315 mm, opening dimensions 1015x215 mm, installation hole dimensions 1025x225 mm
ST-W/1025x225/W1
External dimensions 1115x315 mm, opening dimensions 1015x215 mm, installation hole dimensions 1025x225 mm
ST-W/1025x325/W1 External dimensions 1115x415 mm, opening dimensions 1015x315 mm, installation hole dimensions 1025x325 mm
ST-W/1025x325/W1
External dimensions 1115x415 mm, opening dimensions 1015x315 mm, installation hole dimensions 1025x325 mm
ST-W/1025x425/W1 External dimensions 1115x515 mm, opening dimensions 1015x415 mm, installation hole dimensions 1025x425 mm
ST-W/1025x425/W1
External dimensions 1115x515 mm, opening dimensions 1015x415 mm, installation hole dimensions 1025x425 mm
ST-W/1025x525/W1 External dimensions 1115x615 mm, opening dimensions 1015x515 mm, installation hole dimensions 1025x525 mm
ST-W/1025x525/W1
External dimensions 1115x615 mm, opening dimensions 1015x515 mm, installation hole dimensions 1025x525 mm
ST-W/1025x625/W1 External dimensions 1115x715 mm, opening dimensions 1015x615 mm, installation hole dimensions 1025x625 mm
ST-W/1025x625/W1
External dimensions 1115x715 mm, opening dimensions 1015x615 mm, installation hole dimensions 1025x625 mm
ST-W/1225x75/W1 External dimensions 1315x165 mm, opening dimensions 1215x65 mm, installation hole dimensions 1225x75 mm
ST-W/1225x75/W1
External dimensions 1315x165 mm, opening dimensions 1215x65 mm, installation hole dimensions 1225x75 mm
ST-W/1225x125/W1 External dimensions 1315x215 mm, opening dimensions 1215x115 mm, installation hole dimensions 1225x125 mm
ST-W/1225x125/W1
External dimensions 1315x215 mm, opening dimensions 1215x115 mm, installation hole dimensions 1225x125 mm
ST-W/1225x225/W1 External dimensions 1315x315 mm, opening dimensions 1215x215 mm, installation hole dimensions 1225x225 mm
ST-W/1225x225/W1
External dimensions 1315x315 mm, opening dimensions 1215x215 mm, installation hole dimensions 1225x225 mm
ST-W/1225x325/W1 External dimensions 1315x415 mm, opening dimensions 1215x315 mm, installation hole dimensions 1225x325 mm
ST-W/1225x325/W1
External dimensions 1315x415 mm, opening dimensions 1215x315 mm, installation hole dimensions 1225x325 mm
ST-W/1225x425/W1 External dimensions 1315x515 mm, opening dimensions 1215x415 mm, installation hole dimensions 1225x425 mm
ST-W/1225x425/W1
External dimensions 1315x515 mm, opening dimensions 1215x415 mm, installation hole dimensions 1225x425 mm
ST-W/1225x525/W1 External dimensions 1315x615 mm, opening dimensions 1215x515 mm, installation hole dimensions 1225x525 mm
ST-W/1225x525/W1
External dimensions 1315x615 mm, opening dimensions 1215x515 mm, installation hole dimensions 1225x525 mm
ST-W/1225x625/W1 External dimensions 1315x715 mm, opening dimensions 1215x615 mm, installation hole dimensions 1225x625 mm
ST-W/1225x625/W1
External dimensions 1315x715 mm, opening dimensions 1215x615 mm, installation hole dimensions 1225x625 mm

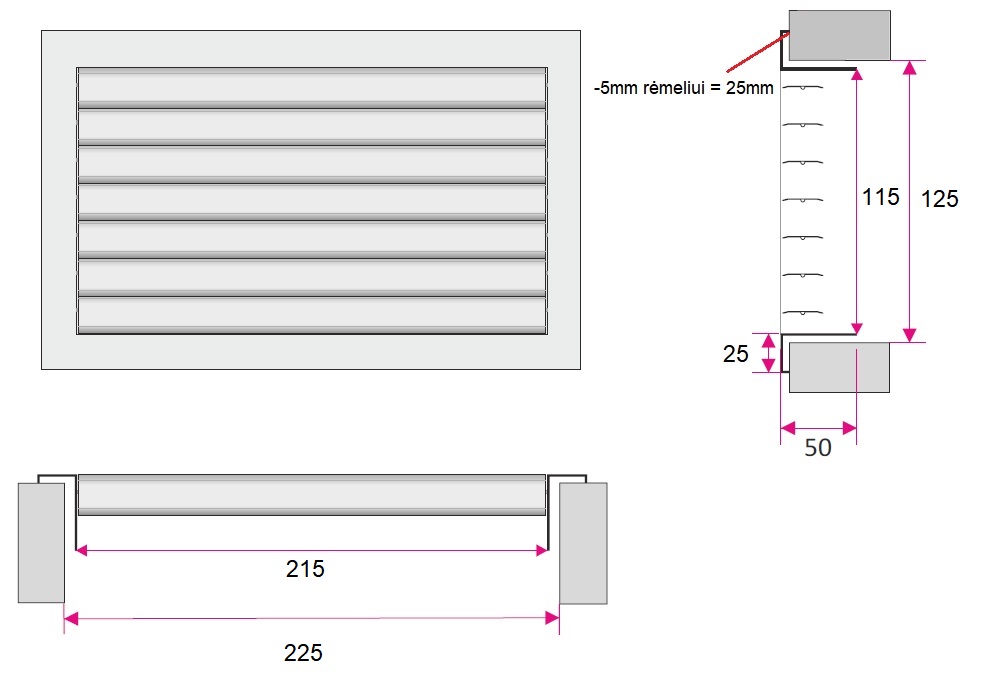

Dimensions

Model: ST-W/225x125/W1
Dimensions

Grilles intake and exhaust have one row of movable blades embedded in the front frame in horizontally configuration. For use in installation low and medium pressure. Adjusting the angle is manual and the individual for each blade.

Grille has Hygienic Certificate HK/K/0522/01/2016

Material and workmanship

The grille is all made of galvanized steel sheet powder coated white RAL 9016. On request it is possible to paint in a different color from the RAL palette and made on special stainless steel or aluminum.

ST-W wall grille with horizontal adjustable blades
Declarations of conformity 859 KB
Catalogue 200 KB
Hygienic certificate 1.1 MB
