Remote condensersDiffuser - AW-7 | Saw-pol
Select the product model:

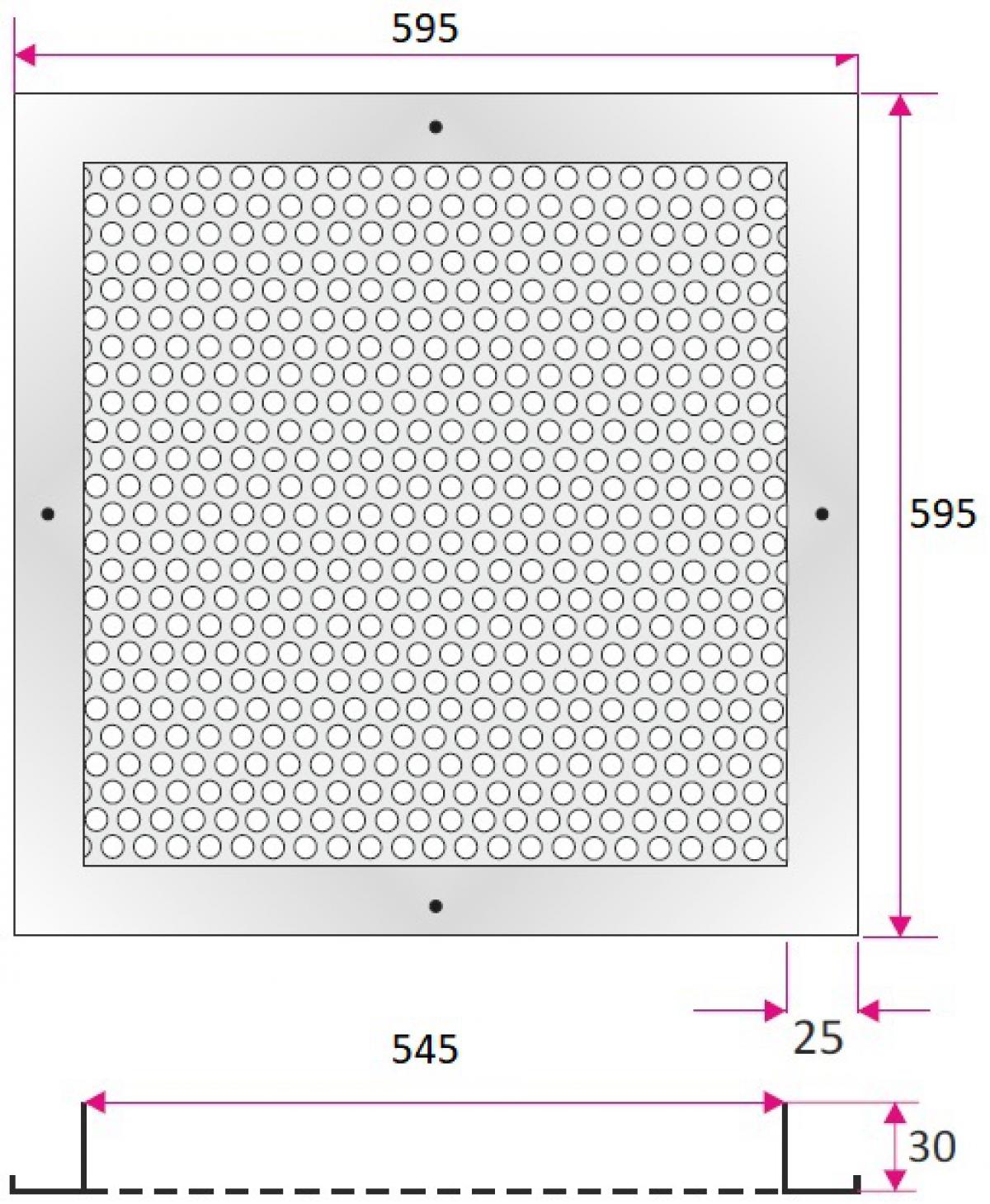

Diffuser, ceiling type, for air extraction, square form, manufactured from powder coated steel, RAL9016 color, external dimensions 595x595 mm, opening dimensions 545x545 mm, effective area 0.172 m²
Manufacturer:
Interested in this product? Contact us:
+370 601 74426
Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer
+370 606 11865
Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Arvydas Palivonas
LT, RU, EN+370 601 74426
Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer
Andrius Lekarevičius
LT, RU, EN+370 606 11865
Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Attention! We do not stock SAW-POL ventilation components, all products from this supplier are custom made and delivered to the customer directly from the manufacturer's warehouse. We are sorry but for this reason we can not accept orders for individual goods, we only accept orders for the high quantity of SAW-POL products.
Click on the Model for technical data, dimensions, accessories
| AW - ceiling type, for air extraction, square form, manufactured from powder coated steel, RAL9016 color |
|---|
Model:
AW-7
General data
Effective area
m²
0.172
Dimensions
Model:
AW-7
Ceiling diffusers are designed for gravity ventilation, low and medium pressure systems and air conditioning systems, primarily exhaust air. For assembly on rectangular ventilation ducts, plenum boxes and suspended ceilings. The air flow adjusted with a damper with counter running blades GP located directly behind the anemostat or single-leaf damper P on plenum box spigot.
Anemostat diffuser has Hygienic Certificate HK/K/0522/01/2016
Material and workmanship
Anemostats are made of galvanised sheet steel powder coated, standard on the white color 9016. On customer request can by powder coated to any color from the RAL palette and special execution of stainless steel or aluminum. Possibility to make diffuser with perforation of different sizes clearance and to make without a frame which surrounds anemostat.
