Ventilation damper - GP/625x225 | Saw-pol

Name: Ventilation damper - GP/625x225 | Saw-pol
Brand: Saw-pol
Availability: PreOrder

Select the product model:

Model:

Ventilation damper, With counter running blades, for air flow regulation in ventilation systems, made of galvanized steel, manual adjustment with mechanical lock, installation hole dimensions 625x225 mm, air flow hole dimensions 615x215 mm

Manufacturer:

Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer

Attention! We do not stock SAW-POL ventilation components, all products from this supplier are custom made and delivered to the customer directly from the manufacturer's warehouse. We are sorry but for this reason we can not accept orders for individual goods, we only accept orders for the high quantity of SAW-POL products.

Models specifications
Technical data
Description
Documentation
Gallery, installation examples
Download PDF

Click on the Model for technical data, dimensions, accessories

GP - With counter running blades, for air flow regulation in ventilation systems, made of galvanized steel, manual adjustment with mechanical lock
	GP/125x75	Installation hole dimensions 125x75 mm, air flow hole dimensions 115x65 mm
		GP/125x75
		Installation hole dimensions 125x75 mm, air flow hole dimensions 115x65 mm
	GP/125x125	Installation hole dimensions 125x125 mm, air flow hole dimensions 115x115 mm
		GP/125x125
		Installation hole dimensions 125x125 mm, air flow hole dimensions 115x115 mm
	GP/125x225	Installation hole dimensions 125x225 mm, air flow hole dimensions 115x215 mm
		GP/125x225
		Installation hole dimensions 125x225 mm, air flow hole dimensions 115x215 mm
	GP/125x325	Installation hole dimensions 125x325 mm, air flow hole dimensions 115x315 mm
		GP/125x325
		Installation hole dimensions 125x325 mm, air flow hole dimensions 115x315 mm
	GP/125x425	Installation hole dimensions 125x425 mm, air flow hole dimensions 115x415 mm
		GP/125x425
		Installation hole dimensions 125x425 mm, air flow hole dimensions 115x415 mm
	GP/125x525	Installation hole dimensions 125x525 mm, air flow hole dimensions 115x515 mm
		GP/125x525
		Installation hole dimensions 125x525 mm, air flow hole dimensions 115x515 mm
	GP/125x625	Installation hole dimensions 125x625 mm, air flow hole dimensions 115x615 mm
		GP/125x625
		Installation hole dimensions 125x625 mm, air flow hole dimensions 115x615 mm
	GP/225x75	Installation hole dimensions 225x75 mm, air flow hole dimensions 215x65 mm
		GP/225x75
		Installation hole dimensions 225x75 mm, air flow hole dimensions 215x65 mm
	GP/225x125	Installation hole dimensions 225x125 mm, air flow hole dimensions 215x115 mm
		GP/225x125
		Installation hole dimensions 225x125 mm, air flow hole dimensions 215x115 mm
	GP/225x225	Installation hole dimensions 225x225 mm, air flow hole dimensions 215x215 mm
		GP/225x225
		Installation hole dimensions 225x225 mm, air flow hole dimensions 215x215 mm
	GP/225x325	Installation hole dimensions 225x325 mm, air flow hole dimensions 215x315 mm
		GP/225x325
		Installation hole dimensions 225x325 mm, air flow hole dimensions 215x315 mm
	GP/225x425	Installation hole dimensions 225x425 mm, air flow hole dimensions 215x415 mm
		GP/225x425
		Installation hole dimensions 225x425 mm, air flow hole dimensions 215x415 mm
	GP/225x525	Installation hole dimensions 225x525 mm, air flow hole dimensions 215x515 mm
		GP/225x525
		Installation hole dimensions 225x525 mm, air flow hole dimensions 215x515 mm
	GP/225x625	Installation hole dimensions 225x625 mm, air flow hole dimensions 215x615 mm
		GP/225x625
		Installation hole dimensions 225x625 mm, air flow hole dimensions 215x615 mm
	GP/325x75	Installation hole dimensions 325x75 mm, air flow hole dimensions 315x65 mm
		GP/325x75
		Installation hole dimensions 325x75 mm, air flow hole dimensions 315x65 mm
	GP/325x125	Installation hole dimensions 325x125 mm, air flow hole dimensions 315x115 mm
		GP/325x125
		Installation hole dimensions 325x125 mm, air flow hole dimensions 315x115 mm
	GP/325x225	Installation hole dimensions 325x225 mm, air flow hole dimensions 315x215 mm
		GP/325x225
		Installation hole dimensions 325x225 mm, air flow hole dimensions 315x215 mm
	GP/325x325	Installation hole dimensions 325x325 mm, air flow hole dimensions 315x315 mm
		GP/325x325
		Installation hole dimensions 325x325 mm, air flow hole dimensions 315x315 mm
	GP/325x425	Installation hole dimensions 325x425 mm, air flow hole dimensions 315x415 mm
		GP/325x425
		Installation hole dimensions 325x425 mm, air flow hole dimensions 315x415 mm
	GP/325x525	Installation hole dimensions 325x525 mm, air flow hole dimensions 315x515 mm
		GP/325x525
		Installation hole dimensions 325x525 mm, air flow hole dimensions 315x515 mm
	GP/325x625	Installation hole dimensions 325x625 mm, air flow hole dimensions 315x615 mm
		GP/325x625
		Installation hole dimensions 325x625 mm, air flow hole dimensions 315x615 mm
GP/425x75	Installation hole dimensions 425x75 mm, air flow hole dimensions 415x65 mm
	GP/425x75
	Installation hole dimensions 425x75 mm, air flow hole dimensions 415x65 mm
GP/425x125	Installation hole dimensions 425x125 mm, air flow hole dimensions 415x115 mm
	GP/425x125
	Installation hole dimensions 425x125 mm, air flow hole dimensions 415x115 mm
GP/425x225	Installation hole dimensions 425x225 mm, air flow hole dimensions 415x215 mm
	GP/425x225
	Installation hole dimensions 425x225 mm, air flow hole dimensions 415x215 mm
GP/425x325	Installation hole dimensions 425x325 mm, air flow hole dimensions 415x315 mm
	GP/425x325
	Installation hole dimensions 425x325 mm, air flow hole dimensions 415x315 mm
GP/425x425	Installation hole dimensions 425x425 mm, air flow hole dimensions 415x415 mm
	GP/425x425
	Installation hole dimensions 425x425 mm, air flow hole dimensions 415x415 mm
GP/425x525	Installation hole dimensions 425x525 mm, air flow hole dimensions 415x515 mm
	GP/425x525
	Installation hole dimensions 425x525 mm, air flow hole dimensions 415x515 mm
GP/425x625	Installation hole dimensions 425x625 mm, air flow hole dimensions 415x615 mm
	GP/425x625
	Installation hole dimensions 425x625 mm, air flow hole dimensions 415x615 mm
GP/525x75	Installation hole dimensions 525x75 mm, air flow hole dimensions 515x65 mm
	GP/525x75
	Installation hole dimensions 525x75 mm, air flow hole dimensions 515x65 mm
GP/525x125	Installation hole dimensions 525x125 mm, air flow hole dimensions 515x115 mm
	GP/525x125
	Installation hole dimensions 525x125 mm, air flow hole dimensions 515x115 mm
GP/525x225	Installation hole dimensions 525x225 mm, air flow hole dimensions 515x215 mm
	GP/525x225
	Installation hole dimensions 525x225 mm, air flow hole dimensions 515x215 mm
GP/525x325	Installation hole dimensions 525x325 mm, air flow hole dimensions 515x315 mm
	GP/525x325
	Installation hole dimensions 525x325 mm, air flow hole dimensions 515x315 mm
GP/525x425	Installation hole dimensions 525x425 mm, air flow hole dimensions 515x415 mm
	GP/525x425
	Installation hole dimensions 525x425 mm, air flow hole dimensions 515x415 mm
GP/525x525	Installation hole dimensions 525x525 mm, air flow hole dimensions 515x515 mm
	GP/525x525
	Installation hole dimensions 525x525 mm, air flow hole dimensions 515x515 mm
GP/525x625	Installation hole dimensions 525x625 mm, air flow hole dimensions 515x615 mm
	GP/525x625
	Installation hole dimensions 525x625 mm, air flow hole dimensions 515x615 mm
GP/625x75	Installation hole dimensions 625x75 mm, air flow hole dimensions 615x65 mm
	GP/625x75
	Installation hole dimensions 625x75 mm, air flow hole dimensions 615x65 mm
GP/625x125	Installation hole dimensions 625x125 mm, air flow hole dimensions 615x115 mm
	GP/625x125
	Installation hole dimensions 625x125 mm, air flow hole dimensions 615x115 mm
GP/625x225	Installation hole dimensions 625x225 mm, air flow hole dimensions 615x215 mm
	GP/625x225
	Installation hole dimensions 625x225 mm, air flow hole dimensions 615x215 mm
GP/625x325	Installation hole dimensions 625x325 mm, air flow hole dimensions 615x315 mm
	GP/625x325
	Installation hole dimensions 625x325 mm, air flow hole dimensions 615x315 mm
GP/625x425	Installation hole dimensions 625x425 mm, air flow hole dimensions 615x415 mm
	GP/625x425
	Installation hole dimensions 625x425 mm, air flow hole dimensions 615x415 mm
GP/625x525	Installation hole dimensions 625x525 mm, air flow hole dimensions 615x515 mm
	GP/625x525
	Installation hole dimensions 625x525 mm, air flow hole dimensions 615x515 mm
GP/625x625	Installation hole dimensions 625x625 mm, air flow hole dimensions 615x615 mm
	GP/625x625
	Installation hole dimensions 625x625 mm, air flow hole dimensions 615x615 mm
GP/825x75	Installation hole dimensions 825x75 mm, air flow hole dimensions 815x65 mm
	GP/825x75
	Installation hole dimensions 825x75 mm, air flow hole dimensions 815x65 mm
GP/825x125	Installation hole dimensions 825x125 mm, air flow hole dimensions 815x115 mm
	GP/825x125
	Installation hole dimensions 825x125 mm, air flow hole dimensions 815x115 mm
GP/825x225	Installation hole dimensions 825x225 mm, air flow hole dimensions 815x215 mm
	GP/825x225
	Installation hole dimensions 825x225 mm, air flow hole dimensions 815x215 mm
GP/825x325	Installation hole dimensions 825x325 mm, air flow hole dimensions 815x315 mm
	GP/825x325
	Installation hole dimensions 825x325 mm, air flow hole dimensions 815x315 mm
GP/825x425	Installation hole dimensions 825x425 mm, air flow hole dimensions 815x415 mm
	GP/825x425
	Installation hole dimensions 825x425 mm, air flow hole dimensions 815x415 mm
GP/825x525	Installation hole dimensions 825x525 mm, air flow hole dimensions 815x515 mm
	GP/825x525
	Installation hole dimensions 825x525 mm, air flow hole dimensions 815x515 mm
GP/825x625	Installation hole dimensions 825x625 mm, air flow hole dimensions 815x615 mm
	GP/825x625
	Installation hole dimensions 825x625 mm, air flow hole dimensions 815x615 mm
GP/1025x75	Installation hole dimensions 1025x75 mm, air flow hole dimensions 1015x65 mm
	GP/1025x75
	Installation hole dimensions 1025x75 mm, air flow hole dimensions 1015x65 mm
GP/1025x125	Installation hole dimensions 1025x125 mm, air flow hole dimensions 1015x115 mm
	GP/1025x125
	Installation hole dimensions 1025x125 mm, air flow hole dimensions 1015x115 mm
GP/1025x225	Installation hole dimensions 1025x225 mm, air flow hole dimensions 1015x215 mm
	GP/1025x225
	Installation hole dimensions 1025x225 mm, air flow hole dimensions 1015x215 mm
GP/1025x325	Installation hole dimensions 1025x325 mm, air flow hole dimensions 1015x315 mm
	GP/1025x325
	Installation hole dimensions 1025x325 mm, air flow hole dimensions 1015x315 mm
GP/1025x425	Installation hole dimensions 1025x425 mm, air flow hole dimensions 1015x415 mm
	GP/1025x425
	Installation hole dimensions 1025x425 mm, air flow hole dimensions 1015x415 mm
GP/1025x525	Installation hole dimensions 1025x525 mm, air flow hole dimensions 1015x515 mm
	GP/1025x525
	Installation hole dimensions 1025x525 mm, air flow hole dimensions 1015x515 mm
GP/1025x625	Installation hole dimensions 1025x625 mm, air flow hole dimensions 1015x615 mm
	GP/1025x625
	Installation hole dimensions 1025x625 mm, air flow hole dimensions 1015x615 mm
GP/1225x75	Installation hole dimensions 1225x75 mm, air flow hole dimensions 1215x65 mm
	GP/1225x75
	Installation hole dimensions 1225x75 mm, air flow hole dimensions 1215x65 mm
GP/1225x125	Installation hole dimensions 1225x125 mm, air flow hole dimensions 1215x115 mm
	GP/1225x125
	Installation hole dimensions 1225x125 mm, air flow hole dimensions 1215x115 mm
GP/1225x225	Installation hole dimensions 1225x225 mm, air flow hole dimensions 1215x215 mm
	GP/1225x225
	Installation hole dimensions 1225x225 mm, air flow hole dimensions 1215x215 mm
GP/1225x325	Installation hole dimensions 1225x325 mm, air flow hole dimensions 1215x315 mm
	GP/1225x325
	Installation hole dimensions 1225x325 mm, air flow hole dimensions 1215x315 mm
GP/1225x425	Installation hole dimensions 1225x425 mm, air flow hole dimensions 1215x415 mm
	GP/1225x425
	Installation hole dimensions 1225x425 mm, air flow hole dimensions 1215x415 mm
GP/1225x525	Installation hole dimensions 1225x525 mm, air flow hole dimensions 1215x515 mm
	GP/1225x525
	Installation hole dimensions 1225x525 mm, air flow hole dimensions 1215x515 mm
GP/1225x625	Installation hole dimensions 1225x625 mm, air flow hole dimensions 1215x615 mm
	GP/1225x625
	Installation hole dimensions 1225x625 mm, air flow hole dimensions 1215x615 mm

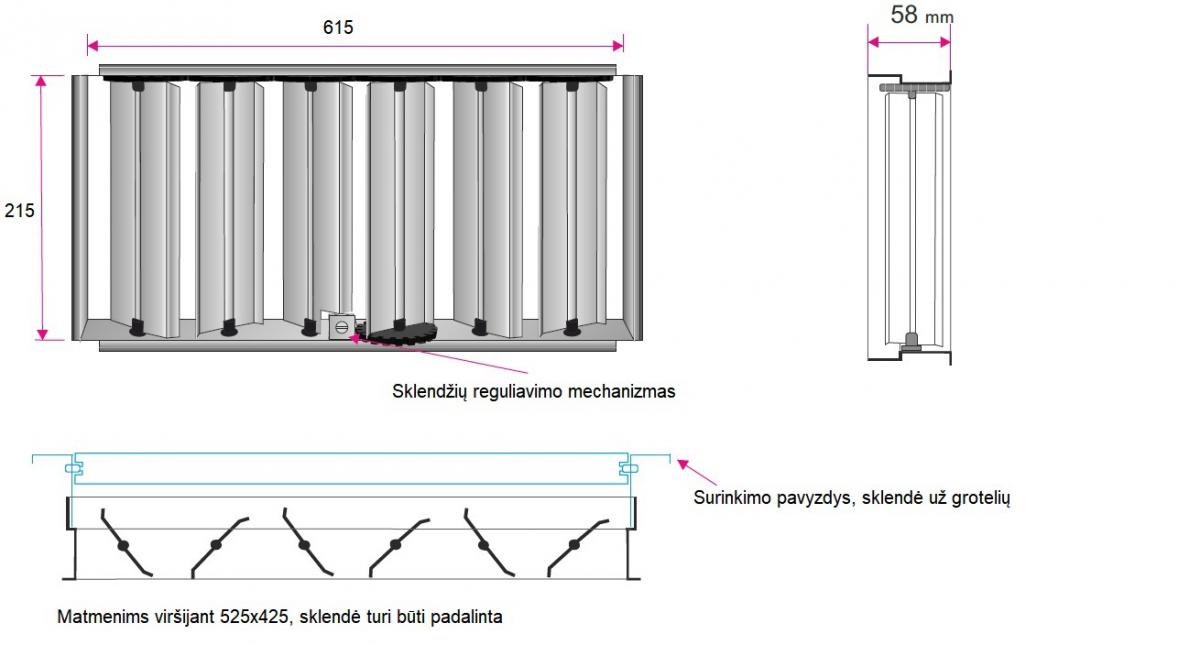

Dimensions

Model: GP/625x225

Damper with counter running blades GP is used to regulate the air flow in ventilation wall grilles, ceiling and floor, and in anemostat diffusers installed in medium and low pressure ventilation instalation. GP has a counter-slat system with control from the front of grille using a flat screwdriver.

Damper has Hygienic Certificate HK/K/0522/03/2016

Material and workmanship

The damper is made of galvanized steel. On special request can be made of aluminum and stainless steel (type 1.4301 or 1.4404). It is also possible to paint damper in color black RAL 9011 or any other RAL color. The driving means of slats are made of plastic.

GP damper with counter running blades

Declarations of conformity 780 KB

Catalogue 171 KB

Hygienic certificate 1 MB
