Remote condensersRoof ventilation louvre - CzWD-C/200/480/W1 | Saw-pol
Select the product model:

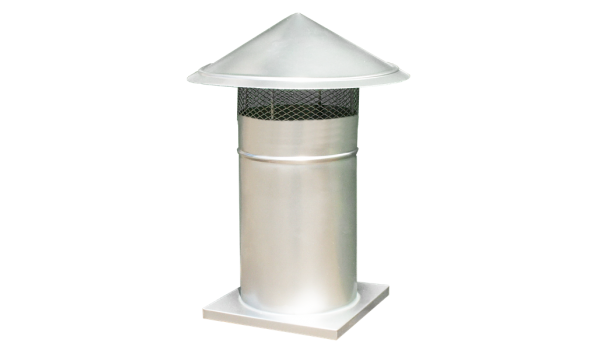

Roof ventilation louvre, for air intake / exhaust, round shape connection (without flange), made of galvanized steel, ventilation surface protected by mesh, can be installed on PD-B roof base, connection hole diameter Ø205 mm, weather protection hood diameter Ø360 mm, height 480 mm, without mounting flange
Manufacturer:
Interested in this product? Contact us:
+370 601 74426
Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer
+370 606 11865
Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Arvydas Palivonas
LT, RU, EN+370 601 74426
Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer
Andrius Lekarevičius
LT, RU, EN+370 606 11865
Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Attention! We do not stock SAW-POL ventilation components, all products from this supplier are custom made and delivered to the customer directly from the manufacturer's warehouse. We are sorry but for this reason we can not accept orders for individual goods, we only accept orders for the high quantity of SAW-POL products.
Click on the Model for technical data, dimensions, accessories
| CzWD-C roof ventilation louvre - for air intake / exhaust, round shape connection (without flange), made of galvanized steel, ventilation surface protected by mesh, can be installed on PD-B roof base |
|---|
Dimensions
Model:
CzWD-C/200/480/W1
Intake/ exhaust roof louvre are used in the ventilation installation intake and exhaust, as the end extract ducts and ventilation holes with a circular section. Located on the roof, connected to the ventilation duct, it is designed to extract fresh air from the exterior to the interior installation. They may also be mounted on the roof base and the pedestal equalizing roof pitch. Thanks to the protective mesh that protects ventilation hole before the bird, rodent and larger impurities (like the leaves) to get inside.
Intake/exhaust roof louvre has Hygienic Certificate HK/K/0522/03/2016
Material and workmanship
Intake/exhaust roof louvre type C is made of galvanized steel. On request it is possible to powder coated to any RAL color and make louvres of aluminum and stainless steel.
