Water air curtain - ELiS AX36-W3R-200 | Flowair

Name: Water air curtain - ELiS AX36-W3R-200 | Flowair
Brand: Flowair
Availability: PreOrder

Select the product type and model:

Type: Model:

Water air curtain, dedicated to operate with low temperature heating medium, horizontal and vertical mounting, housing made of powder coated steel, dynamically starting EC fans, automatic operating modes adapting to the weather conditions (OPTIsmart), protection class IP21, can be connected to BMS, max. mounting height 3.6 m , heating power at 60/40°C water and 18°C air temperature: from 17.1 kW at min. airflow to 29.0 kW at max. airflow, temperature increase ΔT 25-20°C, 3 row heat exchanger, air flow 2000-4300 m³/h, max. electrical power consumption 670 W, acoustic pressure level 45-63 dB(A), covered door gap 2 m, weight 71.7 kg, 2 year WARRANTY

Manufacturer:

Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer

Models specifications
Technical data
Documentation
Accessories, related items
Gallery, installation examples
Video data
Download PDF

Click on the Model for technical data, dimensions, accessories

ELiS AX36 - dedicated to operate with low temperature heating medium, horizontal and vertical mounting, housing made of powder coated steel, dynamically starting EC fans, automatic operating modes adapting to the weather conditions (OPTIsmart), protection class IP21, can be connected to BMS, max. mounting height 3.6 m
	ELiS AX36-W3R-100	Heating power at 60/40°C water and 18°C air temperature: from 8.1 kW at min. airflow to 12.9 kW at max. airflow, temperature increase ΔT 26-21°C, 3 row heat exchanger, air flow 900-1800 m³/h, max. electrical power consumption 270 W, acoustic pressure level 42-60 dB(A), covered door gap 1 m, weight 38.5 kg, 2 year WARRANTY
		ELiS AX36-W3R-100
		Heating power at 60/40°C water and 18°C air temperature: from 8.1 kW at min. airflow to 12.9 kW at max. airflow, temperature increase ΔT 26-21°C, 3 row heat exchanger, air flow 900-1800 m³/h, max. electrical power consumption 270 W, acoustic pressure level 42-60 dB(A), covered door gap 1 m, weight 38.5 kg, 2 year WARRANTY
	ELiS AX36-W3R-150	Heating power at 60/40°C water and 18°C air temperature: from 11.8 kW at min. airflow to 20.5 kW at max. airflow, temperature increase ΔT 29-22°C, 3 row heat exchanger, air flow 1200-2700 m³/h, max. electrical power consumption 400 W, acoustic pressure level 43-61 dB(A), covered door gap 1.5 m, weight 53.3 kg, 2 year WARRANTY
		ELiS AX36-W3R-150
		Heating power at 60/40°C water and 18°C air temperature: from 11.8 kW at min. airflow to 20.5 kW at max. airflow, temperature increase ΔT 29-22°C, 3 row heat exchanger, air flow 1200-2700 m³/h, max. electrical power consumption 400 W, acoustic pressure level 43-61 dB(A), covered door gap 1.5 m, weight 53.3 kg, 2 year WARRANTY
	ELiS AX36-W3R-200	Heating power at 60/40°C water and 18°C air temperature: from 17.1 kW at min. airflow to 29.0 kW at max. airflow, temperature increase ΔT 25-20°C, 3 row heat exchanger, air flow 2000-4300 m³/h, max. electrical power consumption 670 W, acoustic pressure level 45-63 dB(A), covered door gap 2 m, weight 71.7 kg, 2 year WARRANTY
		ELiS AX36-W3R-200
Heating power at 60/40°C water and 18°C air temperature: from 17.1 kW at min. airflow to 29.0 kW at max. airflow, temperature increase ΔT 25-20°C, 3 row heat exchanger, air flow 2000-4300 m³/h, max. electrical power consumption 670 W, acoustic pressure level 45-63 dB(A), covered door gap 2 m, weight 71.7 kg, 2 year WARRANTY
ELiS AX36-W3R-250		Heating power at 60/40°C water and 18°C air temperature: from 21.4 kW at min. airflow to 38.0 kW at max. airflow, temperature increase ΔT 27-21°C, 3 row heat exchanger, air flow 2300-5300 m³/h, max. electrical power consumption 810 W, acoustic pressure level 46-64 dB(A), covered door gap 2.5 m, weight 86.8 kg, 2 year WARRANTY
	ELiS AX36-W3R-250
	Heating power at 60/40°C water and 18°C air temperature: from 21.4 kW at min. airflow to 38.0 kW at max. airflow, temperature increase ΔT 27-21°C, 3 row heat exchanger, air flow 2300-5300 m³/h, max. electrical power consumption 810 W, acoustic pressure level 46-64 dB(A), covered door gap 2.5 m, weight 86.8 kg, 2 year WARRANTY
ELiS AX36-W4R-100	Heating power at 60/40°C water and 18°C air temperature: from 8.7 kW at min. airflow to 15.2 kW at max. airflow, temperature increase ΔT 32-26°C, 4 row heat exchanger, air flow 800-1700 m³/h, max. electrical power consumption 270 W, acoustic pressure level 41-59 dB(A), covered door gap 1 m, weight 40.0 kg, 2 year WARRANTY
	ELiS AX36-W4R-100
	Heating power at 60/40°C water and 18°C air temperature: from 8.7 kW at min. airflow to 15.2 kW at max. airflow, temperature increase ΔT 32-26°C, 4 row heat exchanger, air flow 800-1700 m³/h, max. electrical power consumption 270 W, acoustic pressure level 41-59 dB(A), covered door gap 1 m, weight 40.0 kg, 2 year WARRANTY
ELiS AX36-W4R-150	Heating power at 60/40°C water and 18°C air temperature: from 12.7 kW at min. airflow to 24.1 kW at max. airflow, temperature increase ΔT 34-27°C, 4 row heat exchanger, air flow 1100-2600 m³/h, max. electrical power consumption 400 W, acoustic pressure level 42-60 dB(A), covered door gap 1.5 m, weight 55.6 kg, 2 year WARRANTY
	ELiS AX36-W4R-150
	Heating power at 60/40°C water and 18°C air temperature: from 12.7 kW at min. airflow to 24.1 kW at max. airflow, temperature increase ΔT 34-27°C, 4 row heat exchanger, air flow 1100-2600 m³/h, max. electrical power consumption 400 W, acoustic pressure level 42-60 dB(A), covered door gap 1.5 m, weight 55.6 kg, 2 year WARRANTY
ELiS AX36-W4R-200	Heating power at 60/40°C water and 18°C air temperature: from 20.6 kW at min. airflow to 36.7 kW at max. airflow, temperature increase ΔT 31-26°C, 4 row heat exchanger, air flow 1900-4200 m³/h, max. electrical power consumption 670 W, acoustic pressure level 44-62 dB(A), covered door gap 2 m, weight 74.8 kg, 2 year WARRANTY
	ELiS AX36-W4R-200
	Heating power at 60/40°C water and 18°C air temperature: from 20.6 kW at min. airflow to 36.7 kW at max. airflow, temperature increase ΔT 31-26°C, 4 row heat exchanger, air flow 1900-4200 m³/h, max. electrical power consumption 670 W, acoustic pressure level 44-62 dB(A), covered door gap 2 m, weight 74.8 kg, 2 year WARRANTY
ELiS AX36-W4R-250	Heating power at 60/40°C water and 18°C air temperature: from 24.7 kW at min. airflow to 46.6 kW at max. airflow, temperature increase ΔT 33-26°C, 4 row heat exchanger, air flow 2200-5200 m³/h, max. electrical power consumption 810 W, acoustic pressure level 45-63 dB(A), covered door gap 2.5 m, weight 90.3 kg, 2 year WARRANTY
	ELiS AX36-W4R-250
	Heating power at 60/40°C water and 18°C air temperature: from 24.7 kW at min. airflow to 46.6 kW at max. airflow, temperature increase ΔT 33-26°C, 4 row heat exchanger, air flow 2200-5200 m³/h, max. electrical power consumption 810 W, acoustic pressure level 45-63 dB(A), covered door gap 2.5 m, weight 90.3 kg, 2 year WARRANTY
ELiS AX45 - dedicated to operate with low temperature heating medium, horizontal and vertical mounting, housing made of powder coated steel, dynamically starting EC fans, automatic operating modes adapting to the weather conditions (OPTIsmart), protection class IP21, can be connected to BMS, max. mounting height 4.5 m
	ELiS AX45-W3R-100	Heating power at 60/40°C water and 18°C air temperature: from 9.3 kW at min. airflow to 15.7 kW at max. airflow, temperature increase ΔT 25-18°C, 3 row heat exchanger, air flow 1100-2500 m³/h, max. electrical power consumption 490 W, acoustic pressure level 43-61 dB(A), covered door gap 1 m, weight 40.8 kg, 2 year WARRANTY
		ELiS AX45-W3R-100
		Heating power at 60/40°C water and 18°C air temperature: from 9.3 kW at min. airflow to 15.7 kW at max. airflow, temperature increase ΔT 25-18°C, 3 row heat exchanger, air flow 1100-2500 m³/h, max. electrical power consumption 490 W, acoustic pressure level 43-61 dB(A), covered door gap 1 m, weight 40.8 kg, 2 year WARRANTY
	ELiS AX45-W3R-150	Heating power at 60/40°C water and 18°C air temperature: from 13.9 kW at min. airflow to 24.1 kW at max. airflow, temperature increase ΔT 27-20°C, 3 row heat exchanger, air flow 1500-3500 m³/h, max. electrical power consumption 650 W, acoustic pressure level 44-62 dB(A), covered door gap 1.5 m, weight 55.5 kg, 2 year WARRANTY
		ELiS AX45-W3R-150
		Heating power at 60/40°C water and 18°C air temperature: from 13.9 kW at min. airflow to 24.1 kW at max. airflow, temperature increase ΔT 27-20°C, 3 row heat exchanger, air flow 1500-3500 m³/h, max. electrical power consumption 650 W, acoustic pressure level 44-62 dB(A), covered door gap 1.5 m, weight 55.5 kg, 2 year WARRANTY
	ELiS AX45-W3R-200	Heating power at 60/40°C water and 18°C air temperature: from 18.4 kW at min. airflow to 31.8 kW at max. airflow, temperature increase ΔT 24-19°C, 3 row heat exchanger, air flow 2200-5000 m³/h, max. electrical power consumption 990 W, acoustic pressure level 45-64 dB(A), covered door gap 2 m, weight 73.7 kg, 2 year WARRANTY
		ELiS AX45-W3R-200
Heating power at 60/40°C water and 18°C air temperature: from 18.4 kW at min. airflow to 31.8 kW at max. airflow, temperature increase ΔT 24-19°C, 3 row heat exchanger, air flow 2200-5000 m³/h, max. electrical power consumption 990 W, acoustic pressure level 45-64 dB(A), covered door gap 2 m, weight 73.7 kg, 2 year WARRANTY
ELiS AX45-W3R-250		Heating power at 60/40°C water and 18°C air temperature: from 22.1 kW at min. airflow to 41.4 kW at max. airflow, temperature increase ΔT 27-20°C, 3 row heat exchanger, air flow 2400-6100 m³/h, max. electrical power consumption 1150 W, acoustic pressure level 46-65 dB(A), covered door gap 2.5 m, weight 88.8 kg, 2 year WARRANTY
	ELiS AX45-W3R-250
	Heating power at 60/40°C water and 18°C air temperature: from 22.1 kW at min. airflow to 41.4 kW at max. airflow, temperature increase ΔT 27-20°C, 3 row heat exchanger, air flow 2400-6100 m³/h, max. electrical power consumption 1150 W, acoustic pressure level 46-65 dB(A), covered door gap 2.5 m, weight 88.8 kg, 2 year WARRANTY
ELiS AX45-W4R-100	Heating power at 60/40°C water and 18°C air temperature: from 10.3 kW at min. airflow to 19.1 kW at max. airflow, temperature increase ΔT 30-23°C, 4 row heat exchanger, air flow 1000-2400 m³/h, max. electrical power consumption 490 W, acoustic pressure level 42-60 dB(A), covered door gap 1 m, weight 42.3 kg, 2 year WARRANTY
	ELiS AX45-W4R-100
	Heating power at 60/40°C water and 18°C air temperature: from 10.3 kW at min. airflow to 19.1 kW at max. airflow, temperature increase ΔT 30-23°C, 4 row heat exchanger, air flow 1000-2400 m³/h, max. electrical power consumption 490 W, acoustic pressure level 42-60 dB(A), covered door gap 1 m, weight 42.3 kg, 2 year WARRANTY
ELiS AX45-W4R-150	Heating power at 60/40°C water and 18°C air temperature: from 15.3 kW at min. airflow to 28.9 kW at max. airflow, temperature increase ΔT 32-25°C, 4 row heat exchanger, air flow 1400-3400 m³/h, max. electrical power consumption 650 W, acoustic pressure level 43-61 dB(A), covered door gap 1.5 m, weight 57.8 kg, 2 year WARRANTY
	ELiS AX45-W4R-150
	Heating power at 60/40°C water and 18°C air temperature: from 15.3 kW at min. airflow to 28.9 kW at max. airflow, temperature increase ΔT 32-25°C, 4 row heat exchanger, air flow 1400-3400 m³/h, max. electrical power consumption 650 W, acoustic pressure level 43-61 dB(A), covered door gap 1.5 m, weight 57.8 kg, 2 year WARRANTY
ELiS AX45-W4R-200	Heating power at 60/40°C water and 18°C air temperature: from 22.2 kW at min. airflow to 40.6 kW at max. airflow, temperature increase ΔT 31-24°C, 4 row heat exchanger, air flow 2100-4900 m³/h, max. electrical power consumption 990 W, acoustic pressure level 44-63 dB(A), covered door gap 2 m, weight 76.8 kg, 2 year WARRANTY
	ELiS AX45-W4R-200
	Heating power at 60/40°C water and 18°C air temperature: from 22.2 kW at min. airflow to 40.6 kW at max. airflow, temperature increase ΔT 31-24°C, 4 row heat exchanger, air flow 2100-4900 m³/h, max. electrical power consumption 990 W, acoustic pressure level 44-63 dB(A), covered door gap 2 m, weight 76.8 kg, 2 year WARRANTY
ELiS AX45-W4R-250	Heating power at 60/40°C water and 18°C air temperature: from 25.6 kW at min. airflow to 51.3 kW at max. airflow, temperature increase ΔT 33-25°C, 4 row heat exchanger, air flow 2300-6000 m³/h, max. electrical power consumption 1150 W, acoustic pressure level 45-64 dB(A), covered door gap 2.5 m, weight 92.3 kg, 2 year WARRANTY
	ELiS AX45-W4R-250
	Heating power at 60/40°C water and 18°C air temperature: from 25.6 kW at min. airflow to 51.3 kW at max. airflow, temperature increase ΔT 33-25°C, 4 row heat exchanger, air flow 2300-6000 m³/h, max. electrical power consumption 1150 W, acoustic pressure level 45-64 dB(A), covered door gap 2.5 m, weight 92.3 kg, 2 year WARRANTY

Model: ELiS AX36-W3R-200

General data

Heating capacity at 60/40°C water and 18°C air temperature, fan at max speed

29,0

Heating capacity at 60/40°C water and 18°C air temperature, fan at min speed

17,1

Air temperature rise ΔT at 60/40°C water and 18°C air temperature, fan at max speed

°C

Air temperature rise ΔT at 60/40°C water and 18°C air temperature, fan at min speed

°C

Air flow range

3,6

Max. air flow

m³/h

4300

Fan data

Air flow

m³/h

2000 - 4300

Acoustic pressure level at a distance of 2 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption

dB(A)

45 - 63

Fan type

Installation data

Power supply

V/Hz

230/50

Max. power consumption

670

Max. current consumption

5,6

IP protection class

Installation

Horizontal & vertical

Max. operating temperature

°C

Max. heating water temperature

°C

Max. operating pressure

MPa

1,6

Hydraulic connection

Ø "

3/4

Other data

Number of rows of the heat exchanger

Dimensions

Length

2123

Depth

670

Height

293

Weight

71,7

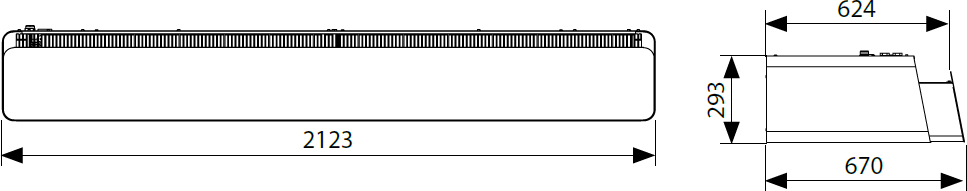

Dimensions

Model: ELiS AX36-W3R-200

ELiS AX air curtains

Manuals 7.6 MB

Declarations of conformity 236 KB

Brochures 1016 KB

Presentation 46.7 MB

Catalogue 1.2 MB

BIM objects 6.5 MB

Model: ELiS AX36-W3R-200

Mounting brackets
	KRON AX H 100/150/200	Mounting bracket for ELiS AX 100/150/200 air curtains
		KRON AX H 100/150/200
Mounting bracket for ELiS AX 100/150/200 air curtains
KRON AX V		Mounting bracket for vertical ELiS AX air curtains
	KRON AX V
	Mounting bracket for vertical ELiS AX air curtains
Control systems for air curtains
	DCe	Magnetic door switch
	DCe
	Magnetic door switch
	DCm	Mechanical door switch
	DCm
	Mechanical door switch
FLOWAIR control system
	T-box Zone	Intelligent controller with touch screen, built-in room thermostat and programable week calendar, one controller can control up to 31 units, multi-zone control - can create up to 31 zones and control each unit independently, can be connected to BMS
	T-box Zone
	Intelligent controller with touch screen, built-in room thermostat and programable week calendar, one controller can control up to 31 units, multi-zone control - can create up to 31 zones and control each unit independently, can be connected to BMS
	PT-1000	Temperature sensor for DRV control modules, IP65
	PT-1000
	Temperature sensor for DRV control modules, IP65
Valves
	SRX20 2D 0-10V	Modulating two-way valve with transformer, 3/4" connection, 0-10V input
		SRX20 2D 0-10V
		Modulating two-way valve with transformer, 3/4" connection, 0-10V input
SRX32 2D 0-10V	Modulating two-way valve with transformer, 1¼" connection, 0-10V input
	SRX32 2D 0-10V
	Modulating two-way valve with transformer, 1¼" connection, 0-10V input
SRX20 3D 3P	Three-way valve with 3 point actuator, 3/4" connection
	SRX20 3D 3P
	Three-way valve with 3 point actuator, 3/4" connection
Antivibration water connection hoses with stainless steel reinforcing braid
	ZAR 100 3/4 Ø19	Anti-vibration connection hose, 100 cm length, 3/4" connection, Ø19 mm diameter
	ZAR 100 3/4 Ø19
	Anti-vibration connection hose, 100 cm length, 3/4" connection, Ø19 mm diameter
Additional accessories for air curtains
	FILTER AX 200	Set of filters for ELiS AX 200 air curtain (Coarse 30%)
	FILTER AX 200
	Set of filters for ELiS AX 200 air curtain (Coarse 30%)

ELiS AX air curtains presentation
