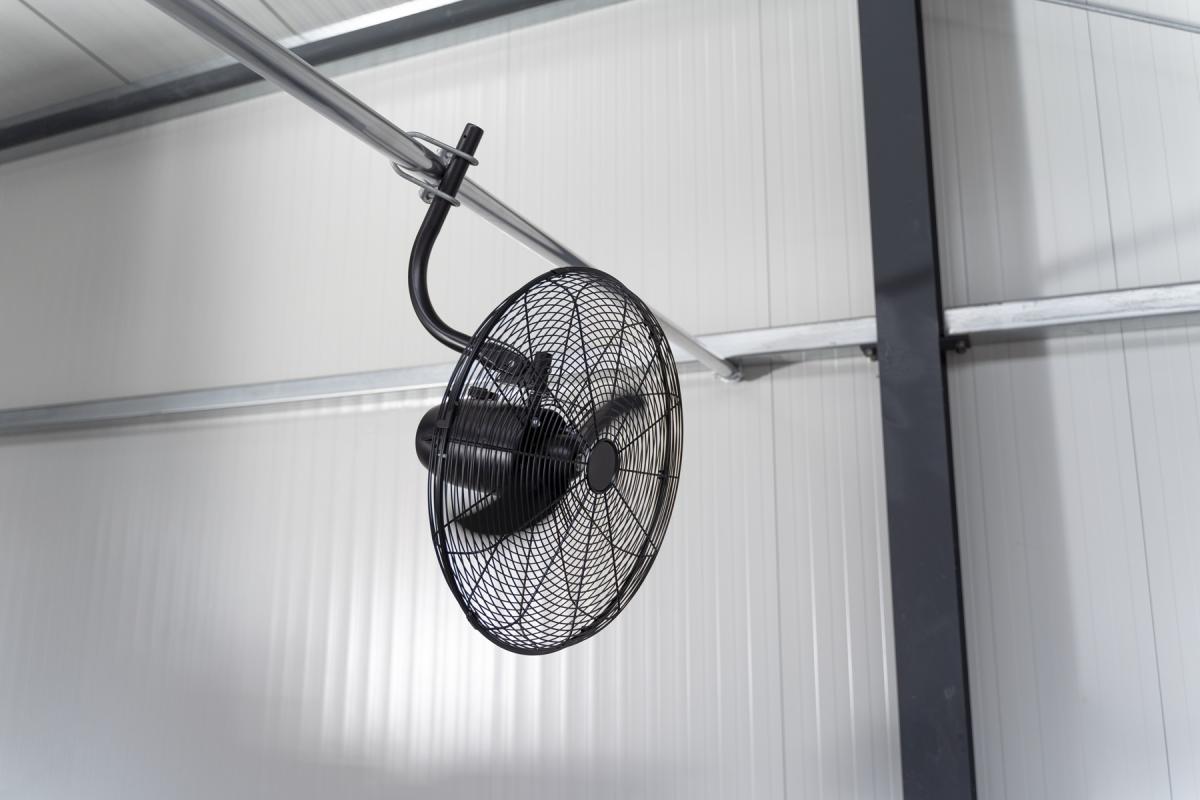

Ceiling fan - air mixer - FENNE 03.312 | Fenne

Select the product model:

Ceiling fan - air mixer, for high rooms, additional safety hanging wire, overheat protection, factory assembled, with protective grilles, ceiling hooks and chains included, can operate in every desired position (horizontal, vertical) , high air volume 21300 m³/h, 350 W fan motor power, blades diameter Ø84 cm, max. mounting height 20 m, weight 17.9 kg, IP54 protection class (protected from dust and water splash), black color, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
FENNE circulation fan / air mixer - for high rooms, additional safety hanging wire, overheat protection, factory assembled, with protective grilles, ceiling hooks and chains included, can operate in every desired position (horizontal, vertical)
FENNE 03.291 High air volume 18000 m³/h, 260 W fan motor power, blades diameter Ø81 cm, max. mounting height 16 m, weight 12 kg, IP2x protection class, black color, 2 year WARRANTY
FENNE 03.291
High air volume 18000 m³/h, 260 W fan motor power, blades diameter Ø81 cm, max. mounting height 16 m, weight 12 kg, IP2x protection class, black color, 2 year WARRANTY
FENNE 03.310 High air volume 13600 m³/h, 265 W fan motor power, blades diameter Ø69 cm, max. mounting height 14 m, weight 10.2 kg, IP54 protection class (protected from dust and water splash), black color, 2 year WARRANTY
FENNE 03.310
High air volume 13600 m³/h, 265 W fan motor power, blades diameter Ø69 cm, max. mounting height 14 m, weight 10.2 kg, IP54 protection class (protected from dust and water splash), black color, 2 year WARRANTY
FENNE 03.312 High air volume 21300 m³/h, 350 W fan motor power, blades diameter Ø84 cm, max. mounting height 20 m, weight 17.9 kg, IP54 protection class (protected from dust and water splash), black color, 2 year WARRANTY
FENNE 03.312
High air volume 21300 m³/h, 350 W fan motor power, blades diameter Ø84 cm, max. mounting height 20 m, weight 17.9 kg, IP54 protection class (protected from dust and water splash), black color, 2 year WARRANTY
Model: FENNE 03.312
General data
Air volume
m³/h
21300
Fan data
Power supply
V/Hz
230/50
Max. power consumption
W
350
Max. current consumption
A
1,6
Noise level at 1 m distance from the unit
dB
64
Fan rotation speed
rpm
1350
Blades diameter
mm Ø
835
Installation data
IP protection class
IP54
Installation
Has additional hanging safety write
Max. mounting height
m
20
Other data
Color
Black
Dimensions
Height
mm
255
Weight
kg
17,9

Planning tool

In the planning tool placed on the manufacturer's website you can calculate the amount of devices required for your building, their operating costs and recommendation for the placement of devices.

FENNE industrial circulation fan - air mixer
Brochures 961 KB
Catalogue 3.3 MB
03.431 Controller for destratificators with two temperature sensors
Manuals 218 KB
Brochures 57 KB
EVS electronic fan speed controller
Manuals 2.1 MB
Brochures 1.6 MB
MODBUS protocol for connection to BMS 699 KB
