Diffuser - ANM-595x595/2/2-way | Saw-pol

Select the product model:

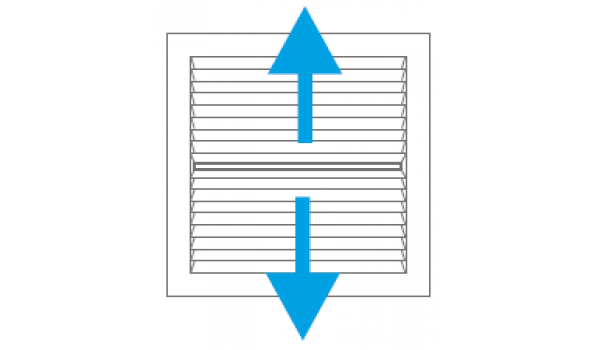

Diffuser, for mounting on a suspended ceiling, placed in a 595x595 mm dimensions modular plate, square form, manufactured from powder coated steel, RAL9016 color, external dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 2 directions air flow
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Attention! We do not stock SAW-POL ventilation components, all products from this supplier are custom made and delivered to the customer directly from the manufacturer's warehouse. We are sorry but for this reason we can not accept orders for individual goods, we only accept orders for the high quantity of SAW-POL products.
Click on the Model for technical data, dimensions, accessories
ANM - for mounting on a suspended ceiling, placed in a 595x595 mm dimensions modular plate, square form, manufactured from powder coated steel, RAL9016 color
ANM-595x595/0/4-way External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 4 directions air flow
ANM-595x595/0/4-way
External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 4 directions air flow
ANM-595x595/1/4-way External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 4 directions air flow
ANM-595x595/1/4-way
External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 4 directions air flow
ANM-595x595/2/4-way External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 4 directions air flow
ANM-595x595/2/4-way
External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 4 directions air flow
ANM-595x595/3/4-way External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 4 directions air flow
ANM-595x595/3/4-way
External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 4 directions air flow
ANM-595x595/4/4-way External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 4 directions air flow
ANM-595x595/4/4-way
External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 4 directions air flow
ANM-595x595/5/4-way External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 4 directions air flow
ANM-595x595/5/4-way
External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 4 directions air flow
ANM-595x595/6/4-way External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 4 directions air flow
ANM-595x595/6/4-way
External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 4 directions air flow
ANM-595x595/0/3-way External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 3 directions air flow
ANM-595x595/0/3-way
External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 3 directions air flow
ANM-595x595/1/3-way External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 3 directions air flow
ANM-595x595/1/3-way
External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 3 directions air flow
ANM-595x595/2/3-way External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 3 directions air flow
ANM-595x595/2/3-way
External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 3 directions air flow
ANM-595x595/3/3-way External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 3 directions air flow
ANM-595x595/3/3-way
External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 3 directions air flow
ANM-595x595/4/3-way External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 3 directions air flow
ANM-595x595/4/3-way
External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 3 directions air flow
ANM-595x595/5/3-way External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 3 directions air flow
ANM-595x595/5/3-way
External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 3 directions air flow
ANM-595x595/6/3-way External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 3 directions air flow
ANM-595x595/6/3-way
External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 3 directions air flow
ANM-595x595/0/2-way External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 2 directions air flow
ANM-595x595/0/2-way
External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 2 directions air flow
ANM-595x595/1/2-way External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 2 directions air flow
ANM-595x595/1/2-way
External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 2 directions air flow
ANM-595x595/2/2-way External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 2 directions air flow
ANM-595x595/2/2-way
External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 2 directions air flow
ANM-595x595/3/2-way External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 2 directions air flow
ANM-595x595/3/2-way
External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 2 directions air flow
ANM-595x595/4/2-way External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 2 directions air flow
ANM-595x595/4/2-way
External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 2 directions air flow
ANM-595x595/5/2-way External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 2 directions air flow
ANM-595x595/5/2-way
External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 2 directions air flow
ANM-595x595/6/2-way External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 2 directions air flow
ANM-595x595/6/2-way
External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 2 directions air flow
ANM-595x595/0/1-way External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 1 direction air flow
ANM-595x595/0/1-way
External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 1 direction air flow
ANM-595x595/1/1-way External dimensions of the unit without modular plate 245x245 mm, opening dimensions 1125x125 mm, 1 direction air flow
ANM-595x595/1/1-way
External dimensions of the unit without modular plate 245x245 mm, opening dimensions 1125x125 mm, 1 direction air flow
ANM-595x595/2/1-way External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 1 direction air flow
ANM-595x595/2/1-way
External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 1 direction air flow
ANM-595x595/3/1-way External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 1 direction air flow
ANM-595x595/3/1-way
External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 1 direction air flow
ANM-595x595/4/1-way External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 1 direction air flow
ANM-595x595/4/1-way
External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 1 direction air flow
ANM-595x595/5/1-way External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 1 direction air flow
ANM-595x595/5/1-way
External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 1 direction air flow
ANM-595x595/6/1-way External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 1 direction air flow
ANM-595x595/6/1-way
External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 1 direction air flow

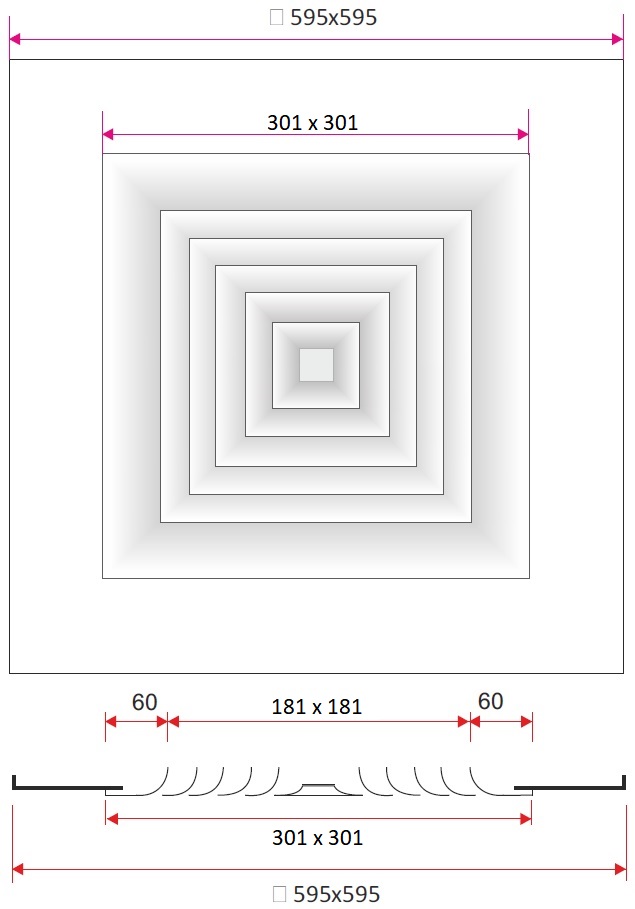

Dimensions

Model: ANM-595x595/2/2-way
Dimensions

Ceiling diffusers are designed for gravity ventilation, low and medium pressure systems and air conditioning systems, air intake and exhaust. Diffusers on modular plates are recommended especially for mounting on a suspended ceiling construction. The air flow adjusted with a damper with counter running blades GP located directly behind the anemostat or single-leaf damper P on plenum box spigot. Diffusers enable the directing air flow in 1-, 2-, 3- and 4 sides.

Anemostat diffuser has Hygienic Certificate HK/K/0522/01/2016

Material and workmanship

ANM intake anemostat diffuser placed in a modular plate 595x595 (possible other dimensions of modular plates). Anemostats are made of galvanised sheet steel powder coated, standard on the white color 9016. On customer request can by powder coated to any color from the RAL palette and special execution of stainless steel or aluminum.

ANM modular intake anemostat diffuser
