ANM - for mounting on a suspended ceiling, placed in a 595x595 mm dimensions modular plate, square form, manufactured from powder coated steel, RAL9016 color | |||
---|---|---|---|
![]() |
ANM-595x595/0/4-way | External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 4 directions air flow | |
![]() |
ANM-595x595/0/4-way | ||
External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 4 directions air flow | |||
ANM-595x595/1/4-way | External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 4 directions air flow | ||
![]() |
ANM-595x595/1/4-way | ||
External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 4 directions air flow | |||
ANM-595x595/2/4-way | External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 4 directions air flow | ||
![]() |
ANM-595x595/2/4-way | ||
External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 4 directions air flow | |||
ANM-595x595/3/4-way | External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 4 directions air flow | ||
![]() |
ANM-595x595/3/4-way | ||
External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 4 directions air flow | |||
ANM-595x595/4/4-way | External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 4 directions air flow | ||
![]() |
ANM-595x595/4/4-way | ||
External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 4 directions air flow | |||

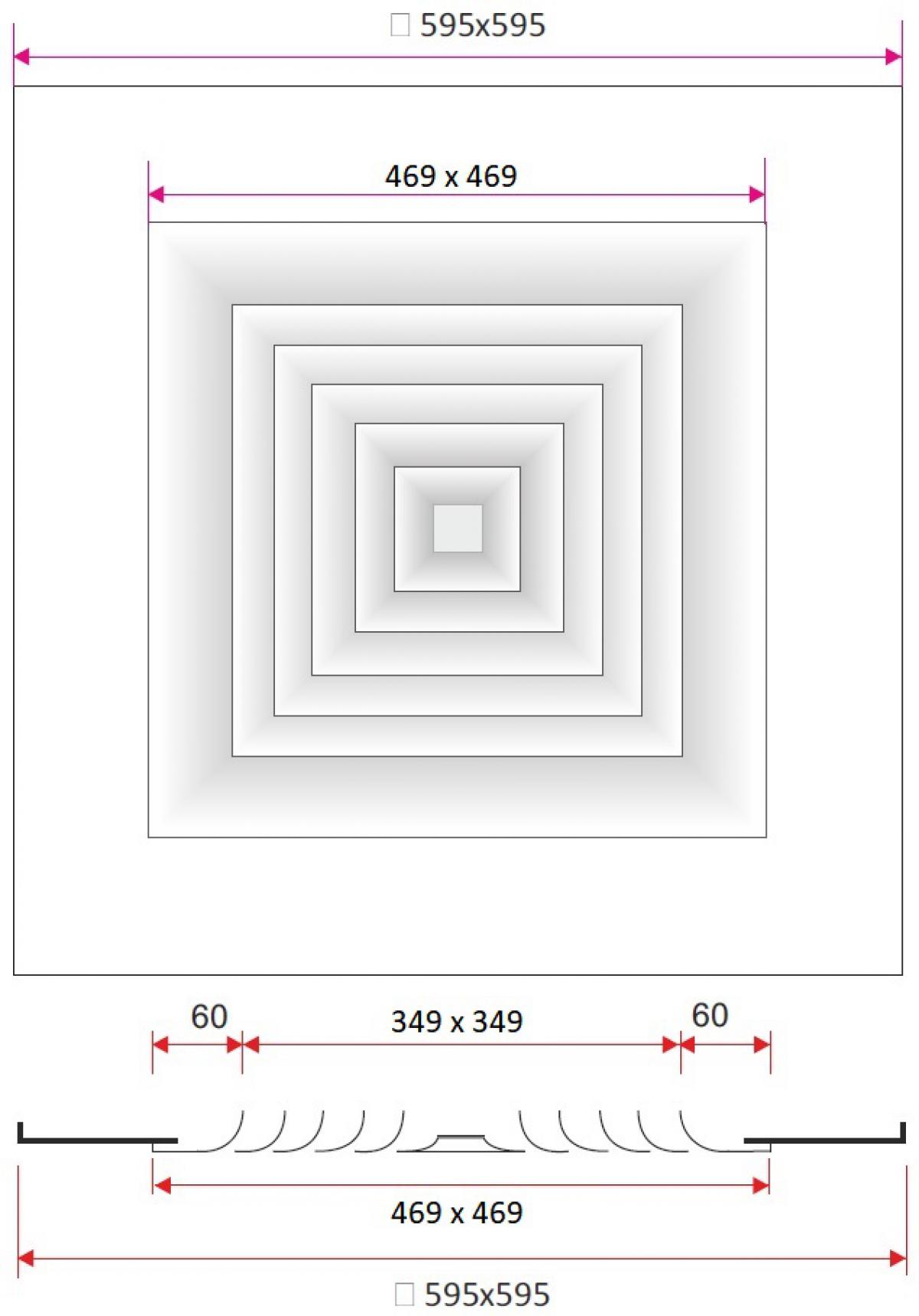

ANM-595x595/5/4-way | External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 4 directions air flow | ||
![]() |
ANM-595x595/5/4-way | ||
External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 4 directions air flow | |||
ANM-595x595/6/4-way | External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 4 directions air flow | ||
![]() |
ANM-595x595/6/4-way | ||
External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 4 directions air flow | |||
![]() |
ANM-595x595/0/3-way | External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 3 directions air flow | |
![]() |
ANM-595x595/0/3-way | ||
External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 3 directions air flow | |||
ANM-595x595/1/3-way | External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 3 directions air flow | ||
![]() |
ANM-595x595/1/3-way | ||
External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 3 directions air flow | |||
ANM-595x595/2/3-way | External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 3 directions air flow | ||
![]() |
ANM-595x595/2/3-way | ||
External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 3 directions air flow | |||
ANM-595x595/3/3-way | External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 3 directions air flow | ||
![]() |
ANM-595x595/3/3-way | ||
External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 3 directions air flow | |||
ANM-595x595/4/3-way | External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 3 directions air flow | ||
![]() |
ANM-595x595/4/3-way | ||
External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 3 directions air flow | |||
ANM-595x595/5/3-way | External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 3 directions air flow | ||
![]() |
ANM-595x595/5/3-way | ||
External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 3 directions air flow | |||
ANM-595x595/6/3-way | External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 3 directions air flow | ||
![]() |
ANM-595x595/6/3-way | ||
External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 3 directions air flow | |||
![]() |
ANM-595x595/0/2-way | External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 2 directions air flow | |
![]() |
ANM-595x595/0/2-way | ||
External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 2 directions air flow | |||
ANM-595x595/1/2-way | External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 2 directions air flow | ||
![]() |
ANM-595x595/1/2-way | ||
External dimensions of the unit without modular plate 245x245 mm, opening dimensions 125x125 mm, 2 directions air flow | |||
ANM-595x595/2/2-way | External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 2 directions air flow | ||
![]() |
ANM-595x595/2/2-way | ||
External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 2 directions air flow | |||
ANM-595x595/3/2-way | External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 2 directions air flow | ||
![]() |
ANM-595x595/3/2-way | ||
External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 2 directions air flow | |||
ANM-595x595/4/2-way | External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 2 directions air flow | ||
![]() |
ANM-595x595/4/2-way | ||
External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 2 directions air flow | |||
ANM-595x595/5/2-way | External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 2 directions air flow | ||
![]() |
ANM-595x595/5/2-way | ||
External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 2 directions air flow | |||
ANM-595x595/6/2-way | External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 2 directions air flow | ||
![]() |
ANM-595x595/6/2-way | ||
External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 2 directions air flow | |||
![]() |
ANM-595x595/0/1-way | External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 1 direction air flow | |
![]() |
ANM-595x595/0/1-way | ||
External dimensions of the unit without modular plate 190x190 mm, opening dimensions 70x70 mm, 1 direction air flow | |||
ANM-595x595/1/1-way | External dimensions of the unit without modular plate 245x245 mm, opening dimensions 1125x125 mm, 1 direction air flow | ||
![]() |
ANM-595x595/1/1-way | ||
External dimensions of the unit without modular plate 245x245 mm, opening dimensions 1125x125 mm, 1 direction air flow | |||
ANM-595x595/2/1-way | External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 1 direction air flow | ||
![]() |
ANM-595x595/2/1-way | ||
External dimensions of the unit without modular plate 301x301 mm, opening dimensions 181x181 mm, 1 direction air flow | |||
ANM-595x595/3/1-way | External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 1 direction air flow | ||
![]() |
ANM-595x595/3/1-way | ||
External dimensions of the unit without modular plate 357x357 mm, opening dimensions 237x237 mm, 1 direction air flow | |||
ANM-595x595/4/1-way | External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 1 direction air flow | ||
![]() |
ANM-595x595/4/1-way | ||
External dimensions of the unit without modular plate 412x412 mm, opening dimensions 292x292 mm, 1 direction air flow | |||
ANM-595x595/5/1-way | External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 1 direction air flow | ||
![]() |
ANM-595x595/5/1-way | ||
External dimensions of the unit without modular plate 469x469 mm, opening dimensions 349x349 mm, 1 direction air flow | |||
ANM-595x595/6/1-way | External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 1 direction air flow | ||
![]() |
ANM-595x595/6/1-way | ||
External dimensions of the unit without modular plate 498x498 mm, opening dimensions 378x378 mm, 1 direction air flow |
Ceiling diffusers are designed for gravity ventilation, low and medium pressure systems and air conditioning systems, air intake and exhaust. Diffusers on modular plates are recommended especially for mounting on a suspended ceiling construction. The air flow adjusted with a damper with counter running blades GP located directly behind the anemostat or single-leaf damper P on plenum box spigot. Diffusers enable the directing air flow in 1-, 2-, 3- and 4 sides.
Anemostat diffuser has Hygienic Certificate HK/K/0522/01/2016
Material and workmanship
ANM intake anemostat diffuser placed in a modular plate 595x595 (possible other dimensions of modular plates). Anemostats are made of galvanised sheet steel powder coated, standard on the white color 9016. On customer request can by powder coated to any color from the RAL palette and special execution of stainless steel or aluminum.
